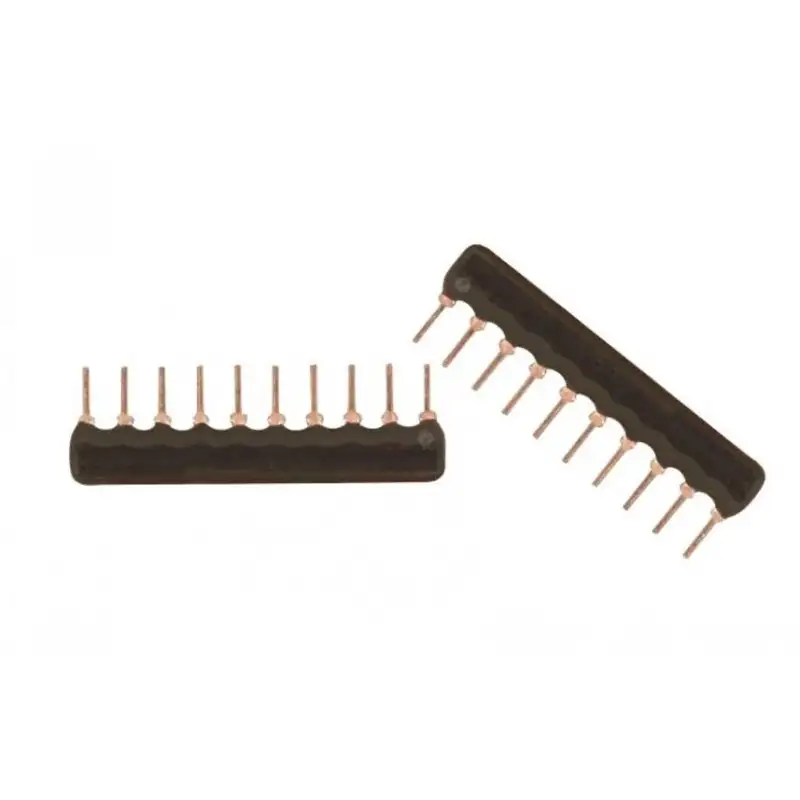

10K ohm 10 Pin Resistor Network - SIP

It is a 10K Ohm Through Hole Resistor Network. The resistor array is a passive nine-terminal electrical component that serves as nine 10K ohms resistances and one common ground.

• Maximum short time overload
• Minimum insulation resistance
• Dielectric withstanding voltage: No evidence of flashover, mechanical damage, arcing or insulation breakdown
• Maximum terminal strength
• Maximum resistance to soldering heat
• Resistor | Resistance | Through-hole

Specification:-

• Resistance : 10K Ohms
• Tolerance : ±5%
• Maximum Working Voltage : 100(V)
• Maximum Overload Voltage 150(V)
• Mounting Type : Through Hole
• Power Rating : 1/8 Watt

• Temperature Coefficient : ±200ppm/°C
• Operating Temperature : -55°C ~ 155°C
• Color : Black
• Pins : 10
• Resistors : 9


Package Includes:-

1 x 10K ohm 10 Pin Resistor Network - SIP
