16mm 24V Ring (Green Light) Self-Lock Non-Momentary Metal Push-button Switch

16mm 24V Ring (Green Light) Self-Lock Non-Momentary Metal Push-button Switch

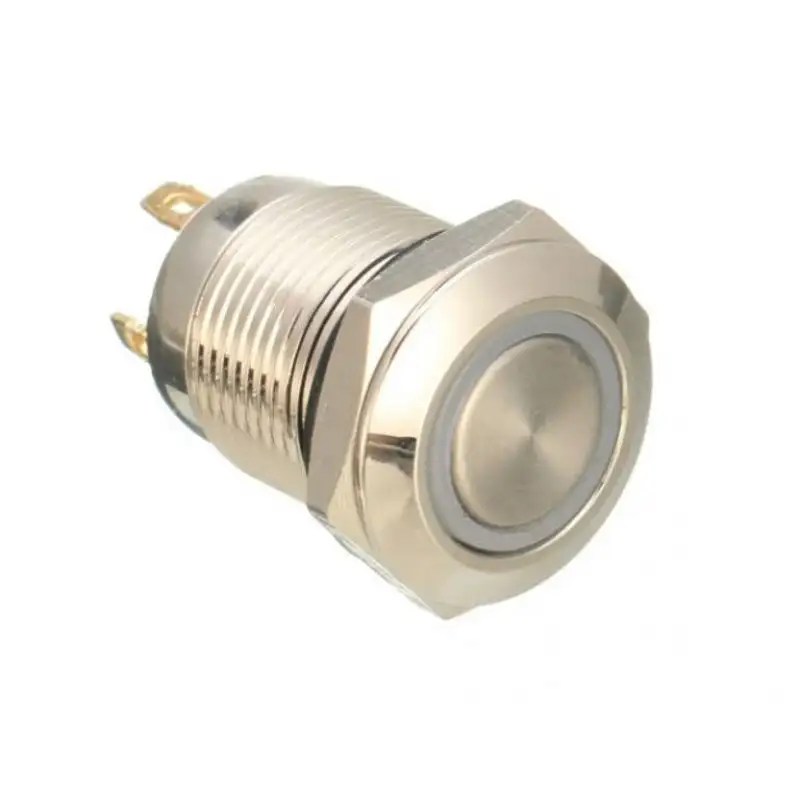

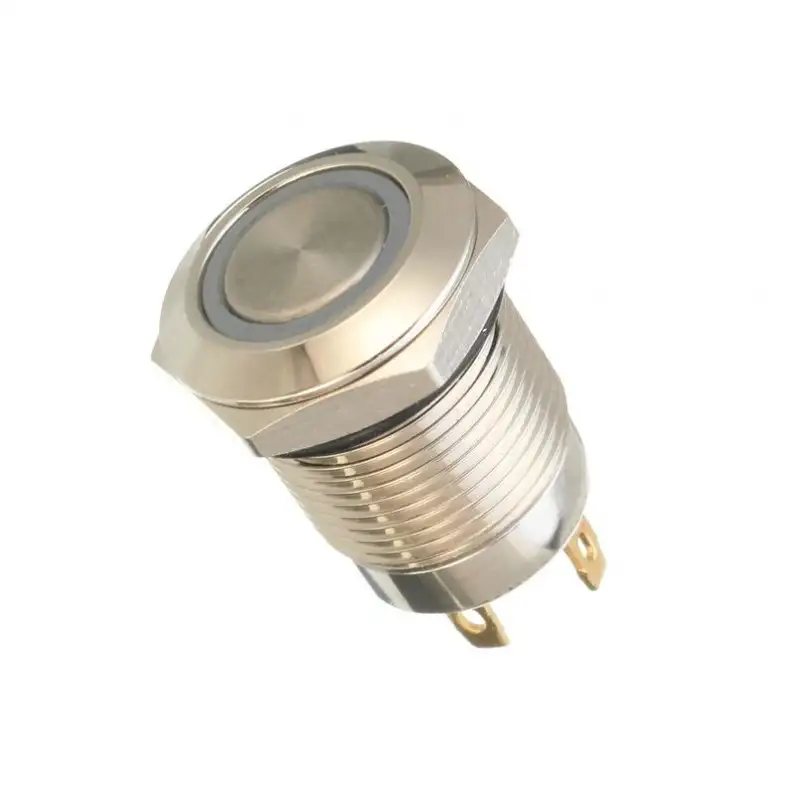

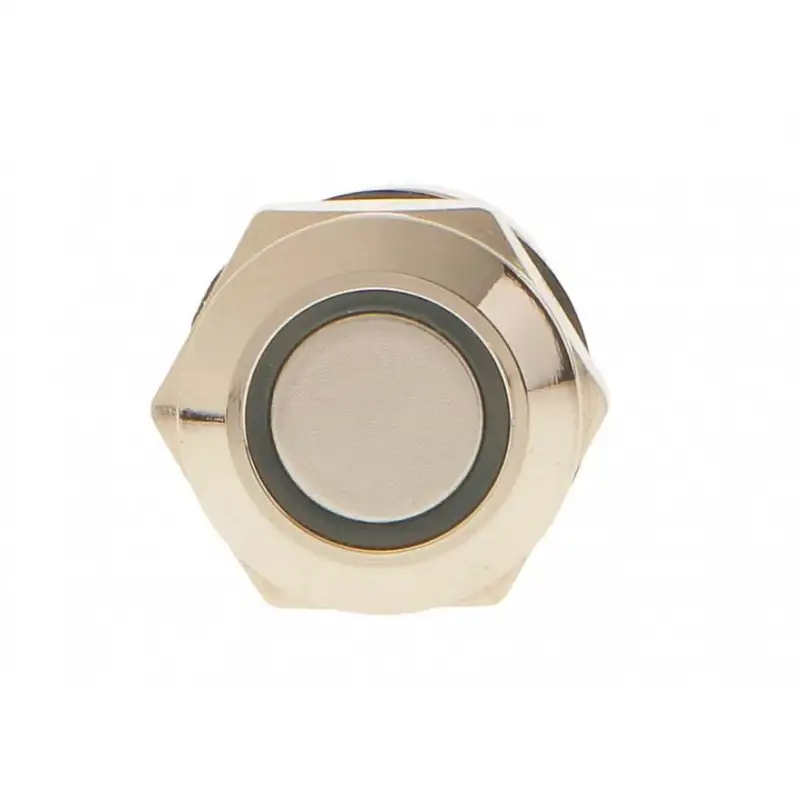

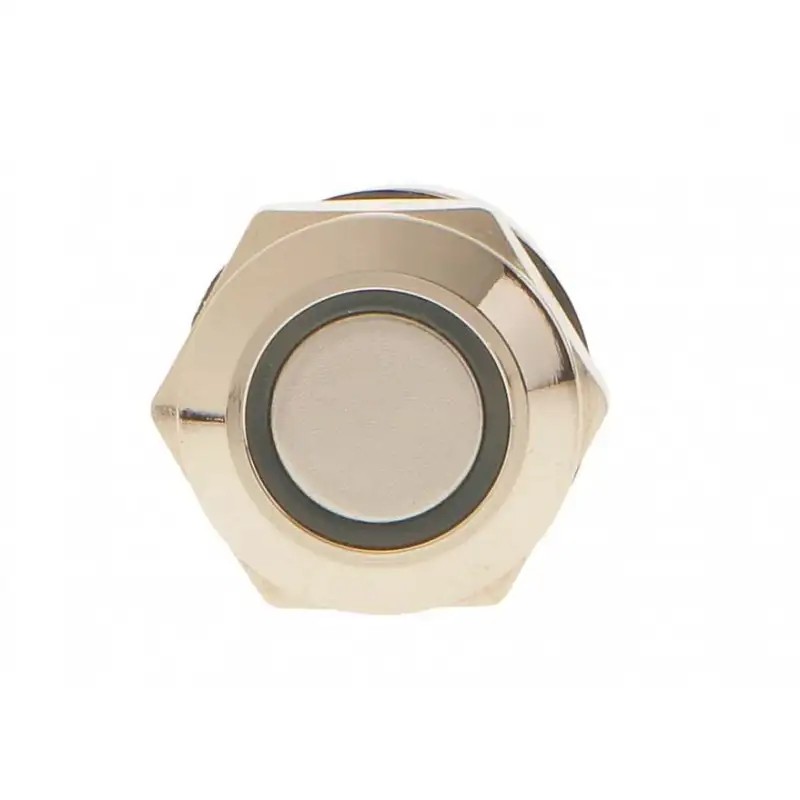

This Self-lock Non-Momentary Metal Push button Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Green LED ring. It is an SPDT with 16mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with Led Light ring around push area of switch. These switches are available in various LED light Colors, you can choose for your application purpose

This switch comes with Non-Momentary Self-Lock action which means it holds its physical position with ON/OFF state until you press it again. A threaded head and a nut, which makes it perfect to be mounted and installed which encloses in your project cases showing flat hexagonal ring structure outside. With glowing, your desired colorful light ring itself in switch gives an attractive design and premium look which compliments quality panels and dashboards.

The switch comes Stainless steel body with an IP67 protection rating to provide the best environmental protection and long operational life. This button is perfect for basic On/Off functions. Overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up 24VDC while the LED.

Features:-

• Body Material: Stainless Steel and Plastic
• Mech. & Electrical Life: ≥50000 Life Cycle
• Stainless steel material for long-term use
• High-end appearance and good to touch
• Inbuilt Colorful Ring illumination LED
• Good electrical conductivity
• Non-Momentary type push-button switch

Specifications:-

• Operating Voltage (VDC) : 24
• Max. Operating Current (mA) : 5A MAX
• Light Color : GREEN
• On/Off Function : Push to ON and Push to OFF
• Switch Type : ILLUMINATED Latching Metal Push button Switch
• Mounting Hole Diameter (mm) : 16 mm
• Contact Type : Solder Type
• Contact Material : Silver Alloy
• Contact Resistance : 50 M
• Insulation Resistance (M) : 1000
• Operating Temperature Range (C) : -20 to 55
• Operation Force : About 3-5N
• Operation Stroke : 2-5mm
• Body Material : Stainless Steel and Plastic
• Mech. & Electrical Lifecycle : 50000
• Protection Standard : IP66

Package Includes:-

1 x 16mm 24V Ring (Green Light) Self-Lock Non-Momentary Metal Push-button Switch
