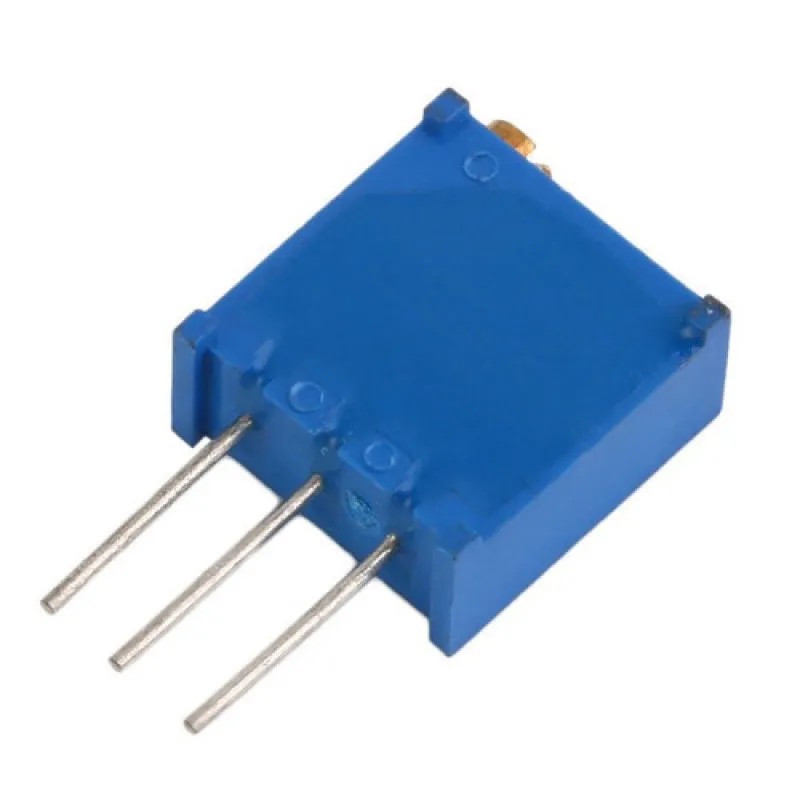

1K ohm Variable Resistor - Trimpot (3296 Package)

Trimpot is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated.

The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.

Specifications:-

• Track Resistance: 1K ohm

• Resistance Tolerance: ± 5%

• Temperature Coefficient: ± 50ppm/°C

• Potentiometer Mounting: Through Hole

• Adjustment Type: Top

• Contact Resistance Variation +: 1%

• Full Power Rating Temperature: 85°C

• Lead Diameter: 0.5mm

• Operating Temperature Range: -55°C to +125°C

• Resistance: 1K ohm

• Resistor Element Material: Variable Rotary Trimmer
