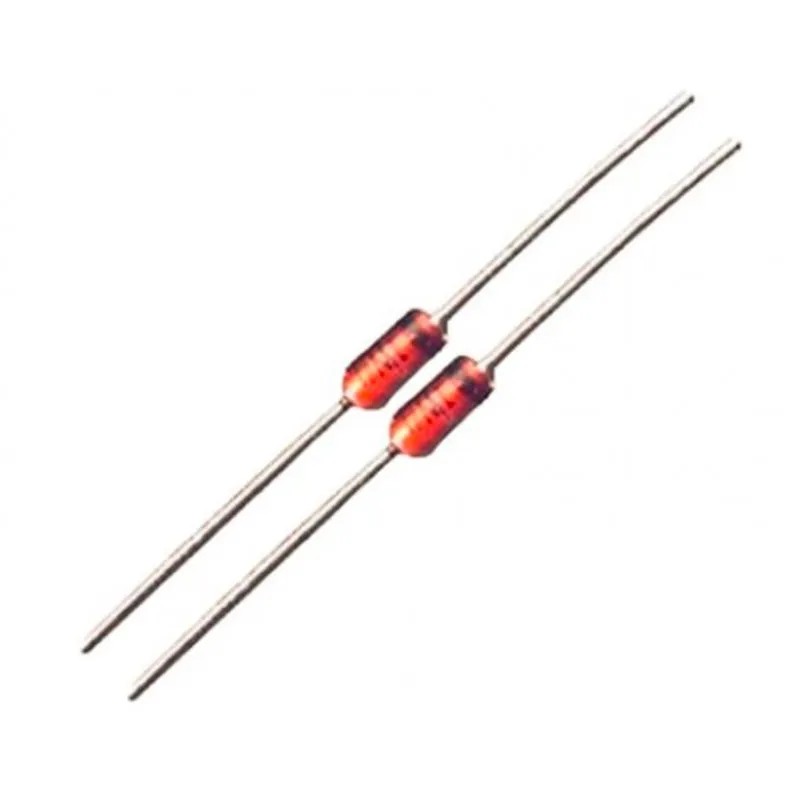

1N914 Small Signal Fast Switching Diode - 2 pieces pack

The 1N914 is high-speed switching diodes fabricated in planar technology, and encapsulated in a hermetically sealed leaded glass SOD27 (DO-35) package.

Features:-

• High switching speed: max. 4 ns

• Continuous reverse voltage :max. 75 V

• Repetitive peak reverse voltage :max. 100 V

• Repetitive peak forward current: max. 225 mA

• Pb / RoHS Free

• Hermetically sealed leaded glass SOD27 (DO-35) package

• Fast switching speed

• High reliability and conductance

• For General Purpose Switching Applications

Mechanical Characteristics:-

• Case: DO-35, Glass

• Terminals: Solderable per MIL-STD-202, Method 208

• Marking: Type Number

• Weight: 0.013 grams (approx.)

Specification:-

Symbol	Parameter	Value	Units
VRRM	Peak Repetitive Reverse Voltage	75	V
VRWM	Working Peak Reverse Voltage	75	V
VR	DC Blocking Voltage	75	V
VRM	Non-Repetitive Peak Reverse Voltage	100	V
VR(RMS)	RMS Reverse Voltage	53	V
IO	Average Rectified Output Current	75	m A
IFSM	Non-Repetitive Peak Forward Surge Current	1	A
TJ	Operating Junction Temperature Range	− 65 to +175	°C
Tstg	Storage Temperature Range	− 65 to +175	°C

Related Document:-

IN914 Diode Data Sheet
