2.0 Inch SPI TFT LCD Color Screen Module ILI9225 Serial Interface 176x220

This lovely little display breakout is the best way to add a small, colorful and bright display to any project.

Since the 2.0 Inch SPI TFT LCD Color Screen Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 2.0 display has 176220 color pixels. Unlike the low cost Nokia 6110 and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ILI9225) can display full 18-bit color (262,144 shades!).

And the LCD will always come with the same driver chip so there are no worries that your code will not work from one to the other.

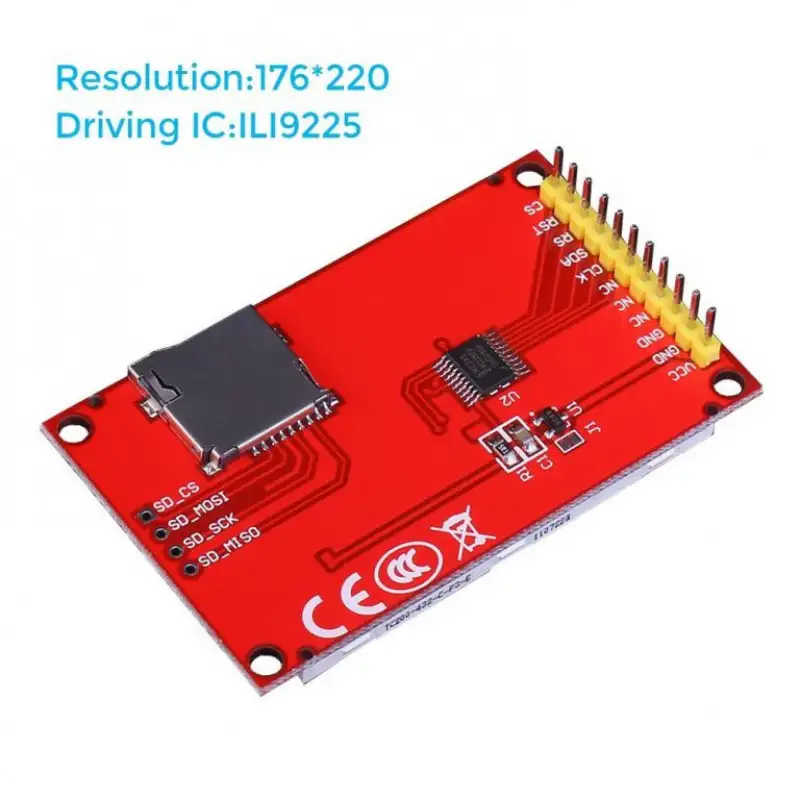

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

We also had a little space so we placed a micro SD card holder so you can easily load full-color bitmaps from a FAT16/FAT32 formatted micro SD card.

Features :

1. 1.8-inch serial SPI color display module
2. Support analog SPI and hardware SPI
3. The LCD has a wide viewing angle, the contrast is also very suitable.
4. Good quality display.

Package includes:

1 x 2.0 Inch SPI TFT LCD Color Screen Module

Additional information

Driver IC	ILI9225
Input Voltage (V)	3.3 to 5
Pixel Resolution	176 x 220

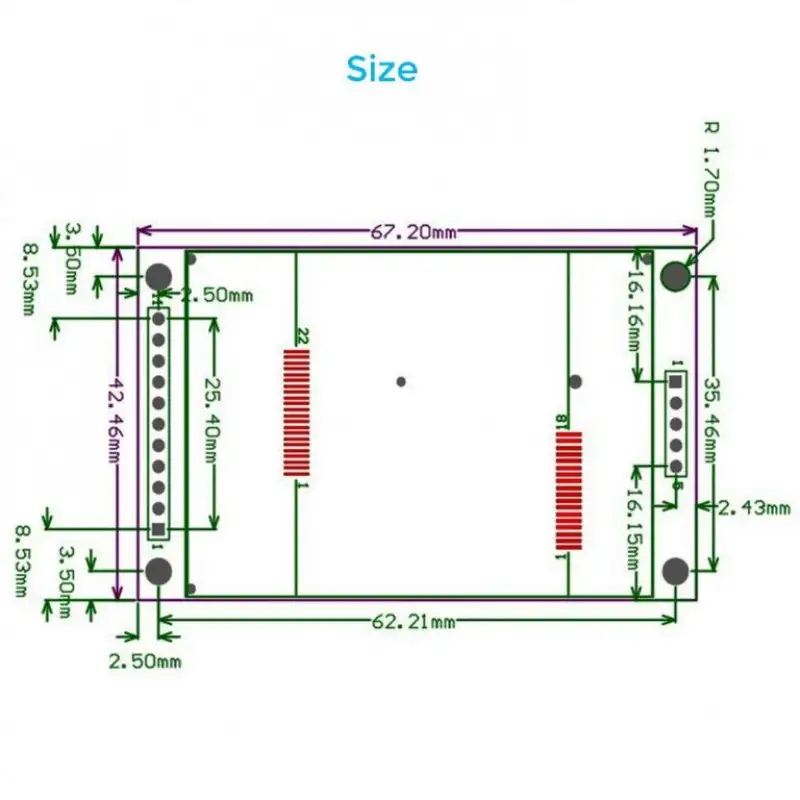

PCB Size ( L x W ) mm	62 x 38
Interface Type	SPI
