2060 SMD PCB Terminal Block 1-, 2- and 3-position versions in the 4mm-pitch range.

Introduction

The 2060 Series SMD PCB Terminal Block is designed to provide a compact and practical connection between external wires and printed circuit boards (PCBs). Its surface-mount design makes it suitable for electronic assemblies where PCB space, low component height and convenient wire termination are important.

The WAGO 2060 series uses push-in CAGE CLAMP® connection technology and push-button operation to simplify wire installation and removal. It is available in configurations with 1, 2 or 3 positions at a 4mm pitch. Confirm the exact manufacturer part number before selecting a product for your application.

✅ Main Features

• Compact SMD design: Designed for surface mounting on a compatible printed circuit board.

• Push-button wire operation: Facilitates wire connection and disconnection.

• Push-in connection technology: Supports direct insertion of compatible solid conductors.

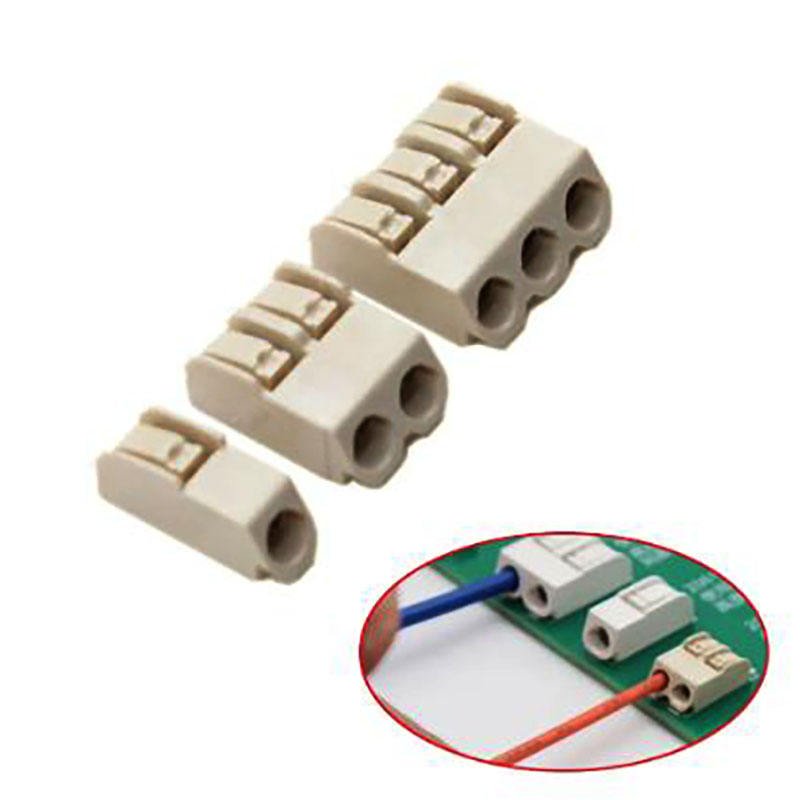

• Multiple configurations: Available in 1-, 2- and 3-position versions in the 4mm-pitch range.

• Low-profile construction: The series has a specified height of approximately 4.5mm.

• Production-friendly packaging: Selected part numbers are supplied in tape-and-reel packaging for automated assembly.

✅ Key Benefits

The compact footprint helps engineers design space-efficient PCBs for lighting, power and control applications. Push-button operation makes wiring more convenient during assembly, maintenance and prototyping. Multiple position options help designers select a suitable connection arrangement without unnecessarily increasing board space.

✅ Performance Highlights

The documented WAGO 2060 series supports conductors from 0.2mm² to 0.75mm² and has a rated current of 9A. Electrical voltage ratings depend on the applicable standard, overvoltage category and pollution degree. Always consult the exact manufacturer's datasheet before using these values in a design.

✅ Reliability & Quality

For dependable performance, match the terminal block's footprint, solder-pad layout, conductor size and electrical ratings to the PCB design. Correct soldering, appropriate wire preparation and compliance with manufacturer installation instructions are essential.

✅ Why Choose This Product?

This terminal block is a practical choice for manufacturers, electronics developers, educational institutions and prototyping teams that need a compact, serviceable wire-to-board connection. Its push-button operation and multiple position configurations make it useful for a wide range of electronic assembly projects.
