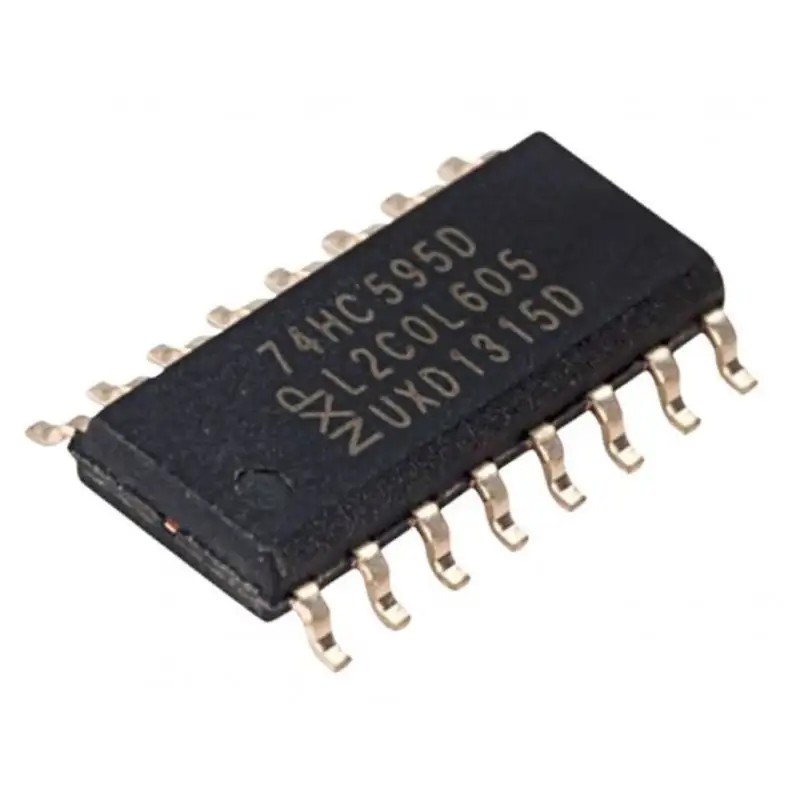

74595 IC (SMD Package)- 8-bit serial-in/serial or parallel-out shift register IC

The 74595 consists of an 8−bit shift register and an 8−bit D−type latch with three−state parallel outputs. The shift register accepts serial data and provides a serial output. The shift register also provides parallel data to the 8−bit latch. The shift register and latch have independent clock inputs. This device also has an asynchronous reset for the shift register. The 74595 directly interfaces with the SPI serial data port on CMOS MPUs and MCUs.

Features:-

• Output Drive Capability: 15 LSTTL Loads

• Outputs Directly Interface to CMOS, NMOS, and TTL

• Operating Voltage Range: 2.0 to 6.0 V

• Low Input Current: 1.0 A

• High Noise Immunity Characteristic of CMOS Devices

• In Compliance with the Requirements Defined by JEDEC Standard No. 7A

• ESD Performance: HBM  2000 V; Machine Model  200 V

• Chip Complexity: 328 FETs or 82 Equivalent Gates

• These are Pb−Free Devices

Specification:-

Symbol	Parameter	Value	Units
VCC	Supply Voltage	– 0.5 to + 7.0	V
Vin	Input voltage	– 0.5 to VCC + 0.5	V
Vout	Output Voltage	– 0.5 to VCC + 0.5	V
Iin	Input Current	±20	mA
Iout	Output Current	±35	mA

Related Document:-

74595 SMD Data Sheet
