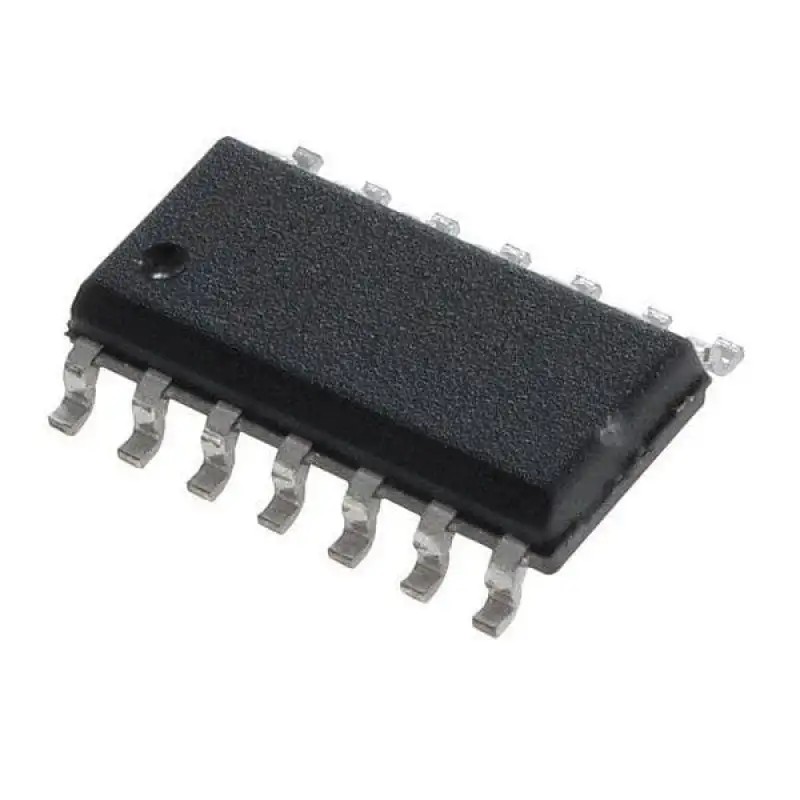

74HC280 IC - (SMD Package) 9-bit Parity Generator IC (74280 IC)

The 74HC280 is a 9-bit parity generator or checker. Both even and odd parity outputs are available. The even parity output (PE) is HIGH when an even number of data inputs (I0 to I8)is HIGH. The odd parity output (PO) is HIGH when an odd number of data inputs are HIGH .Expansion to larger word sizes is accomplished by tying the even outputs (PE) of up to nine parallel devices to the final stage data inputs. Inputs include clamp diodes. It enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

FEATURES: -

• Word-length easily expanded by cascading
• Similar pin configuration to the “180â€_x009d_ for easy system up-grading
• Generates either odd or even parity for nine data bits
• Output capability: standard
• ICC category: MSI

Parameter	Min	Max	Unit
Supply Voltage (VCC)	-0.5	+7	V
input clamping current	0	+20	ma
ambient temperature	-40	+125	°C
Input Rise or Fall Times	0	625	ns/V
total power dissipation		500	mW
output current		+25	mA
supply current		50	MA

Package Includes:-

1 X 74HC280 IC - (SMD Package) 9-bit Parity Generator IC (74280 IC)
