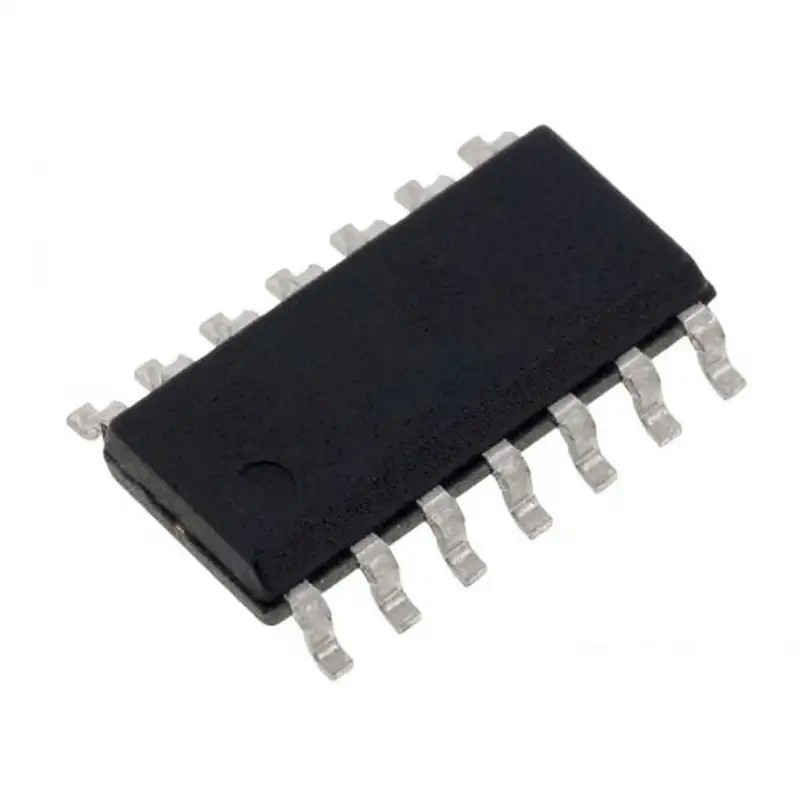

74HC30 IC – (SMD Package) - 8-input NAND Gate IC (7430 IC)

The 74HC30 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC30 provide the 8-input NAND function.

Features:-

• Output capability: standard

• ICC category: SSI

Specification:-

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	− 0.5 to + 7.0V	V
VIN	DC Input Voltage	− 1.5 to VCC + 1.5V	V
VOUT	DC Output Voltage	− 0.5 to VCC + 0.5V	V
IIK, IOK	Clamp Diode Current	± 20	mA
IOUT	DC Output Current, per pin	± 25	mA
ICC	DC VCC or GND Current, per pin	± 50	mA
TSTG	Storage Temperature Range	− 65°C to + 150	°C
PD	Power Dissipation	500	mW
TL	Lead Temperature	260	°C

Related Document:-

74HC30 SMD Data Sheet
