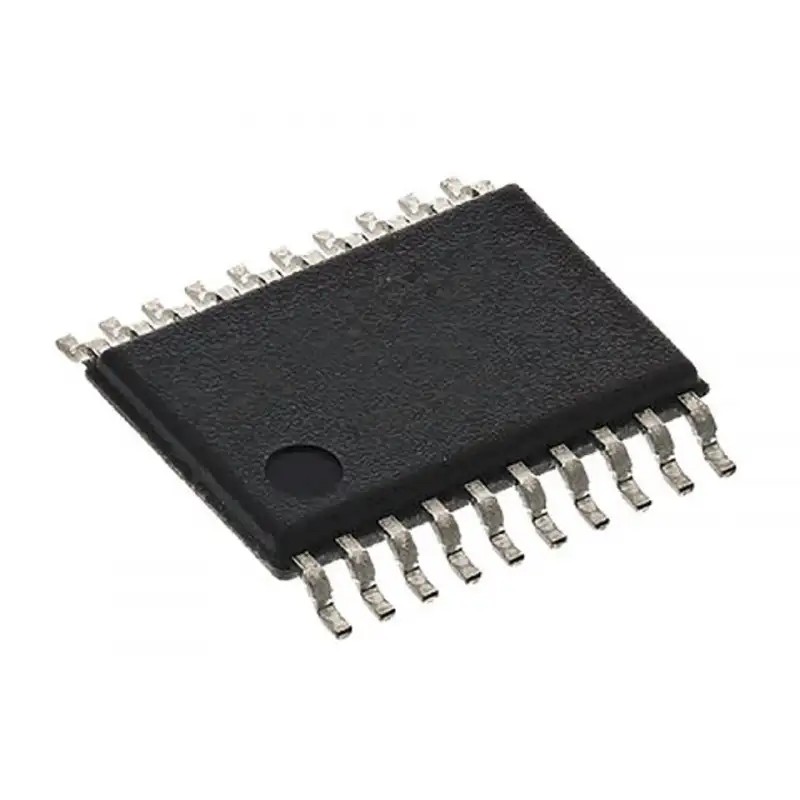

74HC373 IC - (SMD Package) - Octal D-Type Latch 3-State Outputs IC (74373 IC)

The 74HC373 high speed octal D-type latches utilize advanced silicon-gate CMOS technology. They possess the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-STATE feature, these devices are ideally suited for interfacing with bus lines in a bus organized system. When the LATCH ENABLE input is HIGH, the Q outputs will follow the D inputs. When the LATCH ENABLE goes LOW, data at the D inputs will be retained at the outputs until LATCH ENABLE returns HIGH again. When a high logic level is applied to the OUTPUT CONTROL input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements. The 74HC logic family is speed, function, and pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Features:-

• Typical propagation delay: 18 ns

• Wide operating voltage range: 2 to 6 volts

• Low input current: 1 µA maximum

• Low quiescent current: 80 µA maximum (74 Series)

• Output drive capability: 15 LS-TTL loads

Specification:-

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	− 0.5 to + 7.0V	V
VIN	DC Input Voltage	− 1.5 to VCC + 1.5V	V
VOUT	DC Output Voltage	− 0.5 to VCC + 0.5V	V
IIK, IOK	Clamp Diode Current	± 20	mA
IOUT	DC Output Current, per pin	± 35	mA
ICC	DC VCC or GND Current, per pin	± 70	mA
TSTG	Storage Temperature Range	− 65°C to + 150	°C
PD	Power Dissipation	500	mW
TL	Lead Temperature	260	°C

Related Document:-

74HC373 SMD Data Sheet
