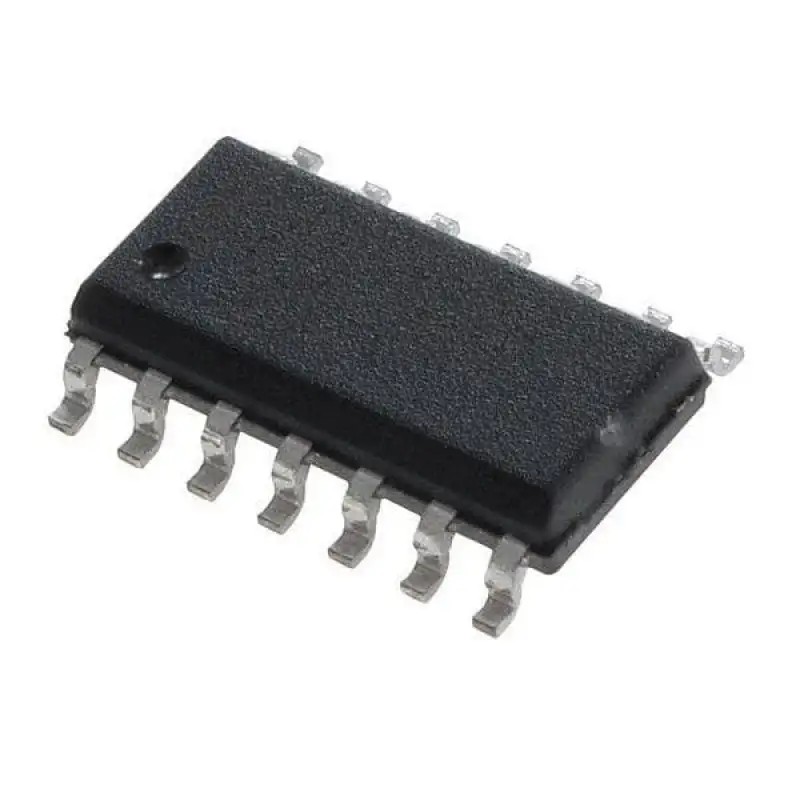

Name: 74HC4016 IC - (SMD Package) - Quad Analog Switch Multiplexer Demultiplexer IC (744016 IC)
Brand: Generic
SKU: 0-6440321
Price: 51 INR
Availability: InStock

The 74HC4016 is a quad single pole, single throw analog switch. Each switch features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features :-

Input levels nE inputs:
For 74HC4016: CMOS level
Typical â€˜break before makeâ€™ built-in
Low ON resistance:

160Â Â (typical) at VCC = 4.5 V

120Â (typical) at VCC = 6.0 V

85Â (typical) at VCC = 9.0 V

Specified in compliance with JEDEC standard no. 7A
ESD protection:

HBM JESD22-A114F exceeds 2000 V

MM JESD22-A115-A exceeds 200 V

Specified from -40 Â°C to +85 Â°C and -40 Â°C to +125 Â°C

Specifications :-

Symbol	Parameter	Min	Max	Unit
VCC	Supply Voltage	-0.5	+11	V
IIK	input clamping current	-	+20	mA
Iok	output clamping current	-	+20	mA
IO	output current	-	+25	mA
ICC	supply current	-	+50	mA
IGND	ground current	-50	-	mA
Tstg	storage temperature	-65	+150	Â°C
Ptot	total power dissipation	-	500	mW
