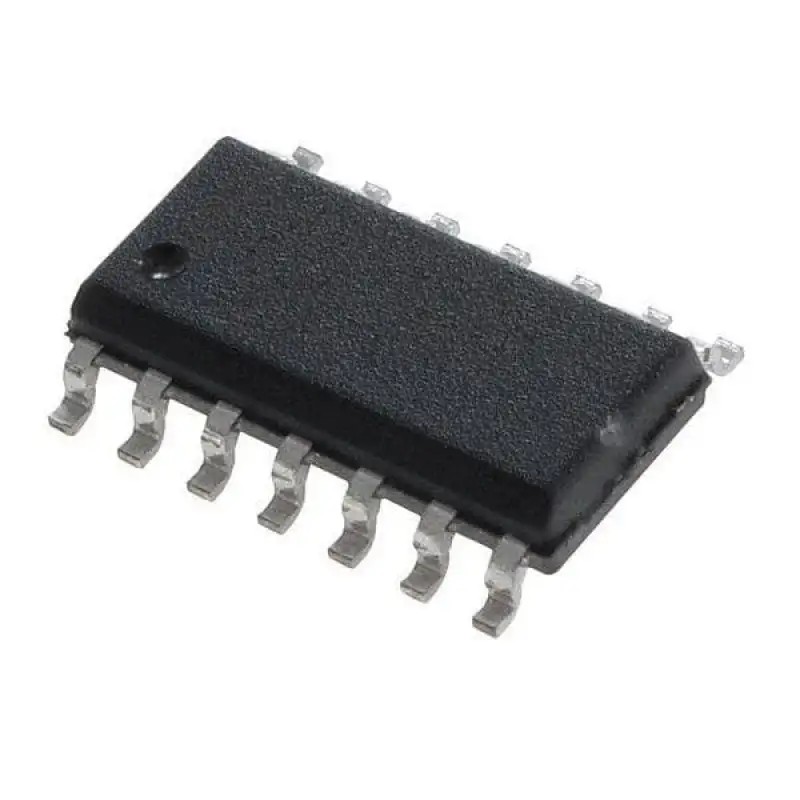

Name: 74HC4072 IC - (SMD Package) - High Speed CMOS Dual 4-Input OR Gate IC (744072)
Brand: Generic
SKU: 0-2265404
Price: 47 INR
Availability: InStock

74HC4072 High Speed CMOS Dual 4-Input OR Gate IC (744072) DIP-14 Package

The 74HC4072 is a high speed CMOS DUAL 4-INPUT OR GATE fabricated in silicon gate C2 MOS technology. It has the same highspeed performance of LSTTL combined with true CMOS low power consumption. The internal circuit is composed of 3 stages including buffer output, which gives high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

Features:-

HIGH SPEED

tPD = 9 ns (TYP.) AT VCC =5V

LOW POWER DISSIPATION

ICC = 1 ÂµA (MAX.) AT TA = 25 Â°C

HIGH NOISE IMMUNITY

VNIH = VNIL = 28 % VCC (MIN.)

OUTPUT DRIVE CAPABILITY

10 LSTTL LOADS

SYMMETRICAL OUTPUT IMPEDANCE

|IOH|=IOL = 4 mA (MIN.)

BALANCED PROPAGATION DELAYS

tPLH = tPHL

WIDE OPERATING VOLTAGE RANGE

VCC (OPR) = 2 V TO 6 V

PIN AND FUNCTION COMPATIBLE

WITH 4072B

Symbol	Parameter	Min	Max	Unit
VCC	Supply Voltage	-0.5	+7	V
VI	DC Input Voltage	-0.5	+0.5	V
VO	DC Output Voltage	-0.5	+0.5	V
IOK	DC VCC or Ground Current	-	+20	mA
PD	Power Dissipation	-	500	mA
IGND	ground current	+50	-	mA
Tstg	storage temperature	-65	+150	Â°C
TL	Lead Temperature (10 sec)	-	300	Â°C
