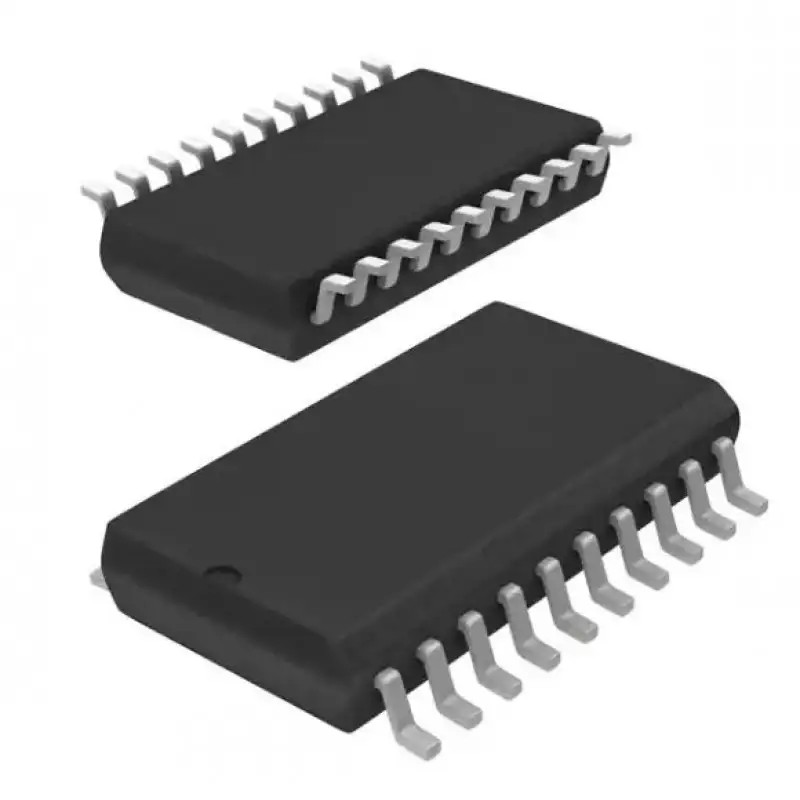

Name: 74HC4351 IC - (SMD Package) - 8-Channel Analog Demultiplexer IC (744351)
Brand: Generic
SKU: 0-1699324
Price: 92 INR
Availability: InStock

The 74HC4351; 74HCT4351 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0 to S2), eight independent inputs/outputs (Yn), a common input/output (Z) and two digital enable inputs (E1 and E2). With E1 LOW and E2 HIGH, one of the eight switches is selected (low impedance ON-state) by S0 to S2. The data at the select inputs may be latched by using the latch enable input (LE). When LE is HIGH the latch is transparent. When E1 is HIGH or E2 is LOW all 8 analog switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications :-

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

Features :-

Wide analog input voltage range from -5 V to +5 V
Complies with JEDEC standard no. 7A
Low ON resistance:

â€“ 80 Î© (typical) at VCC - VEE = 4.5 V

â€“ 70 Î© (typical) at VCC - VEE = 6.0 V

â€“ 60 Î© (typical) at VCC - VEE = 9.0 V

Logic level translation: to enable 5 V logic to communicate with Â±5 V analog signals
Typical â€˜break before makeâ€™ built-in
Address latches provided
ESD protection:

â€“ HBM JESD22-A114F exceeds 2000 V

â€“ MM JESD22-A115-A exceeds 200 V

â€“ CDM JESD22-C101E exceeds 1000 V

Specified from -40 Â°C to +85 Â°C and -40 Â°C to +125 Â°C

Specifications :-

Symbol	Parameter	Min	Max	Unit
VCC	Supply Voltage	-0.5	+11.0	V
IIK	input clamping current	-	+20	mA
Iok	output clamping current	-	+20	mA
Isw	switch current	-	+25	mA
ICC	supply current	-	50	mA
IGND	ground current	-50	-	mA
Tstg	storage temperature	-65	+150	Â°C
Ptot	total power dissipation	-	500	mW
