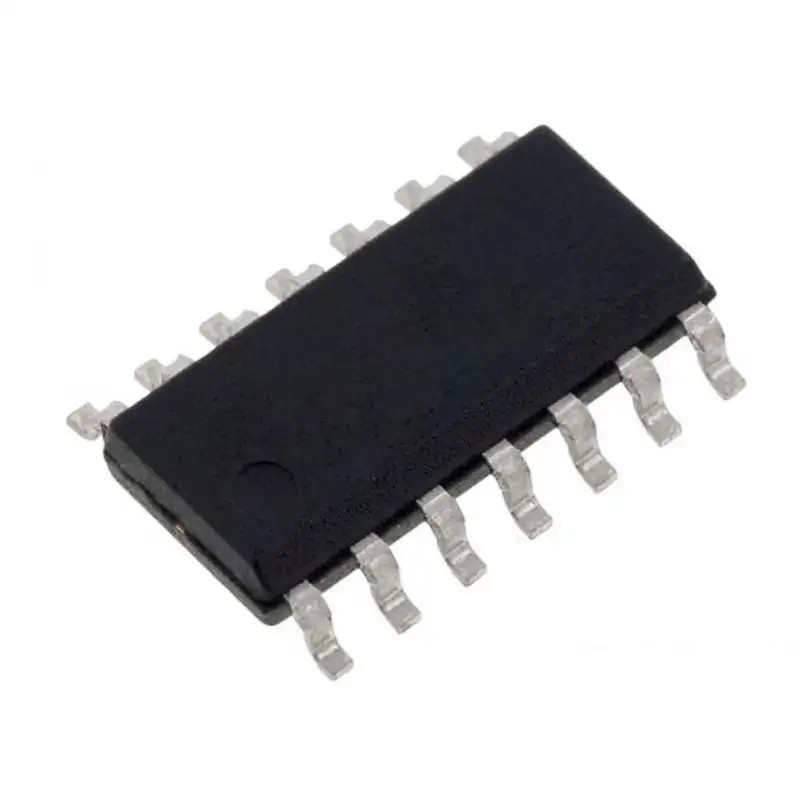

74LS10 IC - (SMD Package) - Triple 3-Input NAND Gates IC (7410 IC)

The 74LS10 devices contain three independent 3-input NAND gates. The 74LSI0 is characterized for operation from O °C to 70 °C.

Features:-

• Package Options Include Plastic "Small Outline" Packages, Ceramic Chip Carriers and Flat Packages, and Plastic and Ceramic DIPs

• Dependable Texas Instruments Quality and Reliability

Specification:-

Symbol	Parameter	Min	Nom	Max	Units
VCC	Supply Voltage	4.75	5	5.25	V
VIH	High-level Input Voltage	2			V
VIL	Low-level Input Voltage			0.8	V
IOH	Low-level Output Current			-0.4	m A
IOL	High-level Output Current			8	m A
TA	Operating Free air Temperature	0		70	°C

Related Document:-

74LS10 SMD Data Sheet
