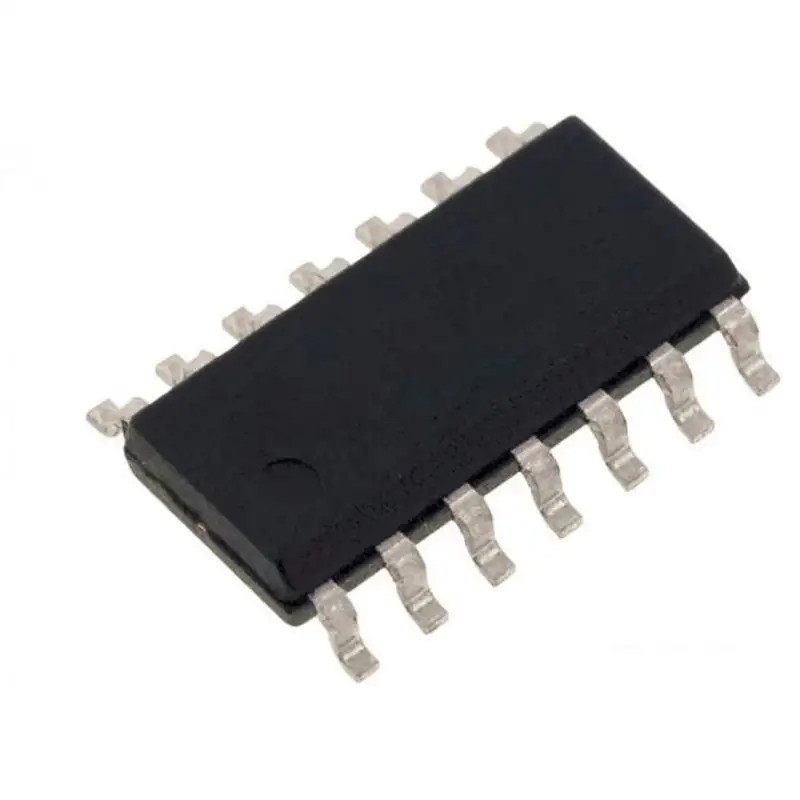

74LS12 IC - (SMD Package) Triple 3-Input Positive NAND Gate IC (7412 IC)

The 74LS12 Triple 3-Input Positive NAND Gates With Collector Outputs contains three 3 input independent gates each of which performs the positive logic NAND function. 74LS12 IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. 74LS12 Triple 3-Input Positive NAND Gates With Collector Outputs circuit is designed such that the operation produced on the inputs of pin are (1 & 2 & 3 & 4 NAND 10 & 11 & 12 & 13) is produced on the pin 8 . Operating supply voltages to the IC can vary between 4.5V to 5V and to a maximum of 5.5V and the input logic levels to the device in ‘0’ (LOW) state is max. 0.7V and for ‘1’ (HIGH) state is min 2V.

Features:-

• Operating Voltage Range 4.75V to 5V up to a maximum of5.5V.
• Operating Temperature range : -55°C to +125°C
• VH (Output High): 2.7V to 3.4V.
• VL (Output Low): 0.36V to 0.5V.
• Power Consumption: 3.3mA to 3.8mA
• Operating Speed :125 – 250Mhz

Specification:-

• Supply Voltage : 4.75 to 5.25
• high-level input voltage : 2
• low-level input voltage : 0.8
• high-level output voltage : 5.5
• low-level output current : 8
• operating free-air temperature : 70

Package Includes:-

1 X 74LS12 IC - (SMD Package) Triple 3-Input Positive NAND Gate IC (7412 IC)
