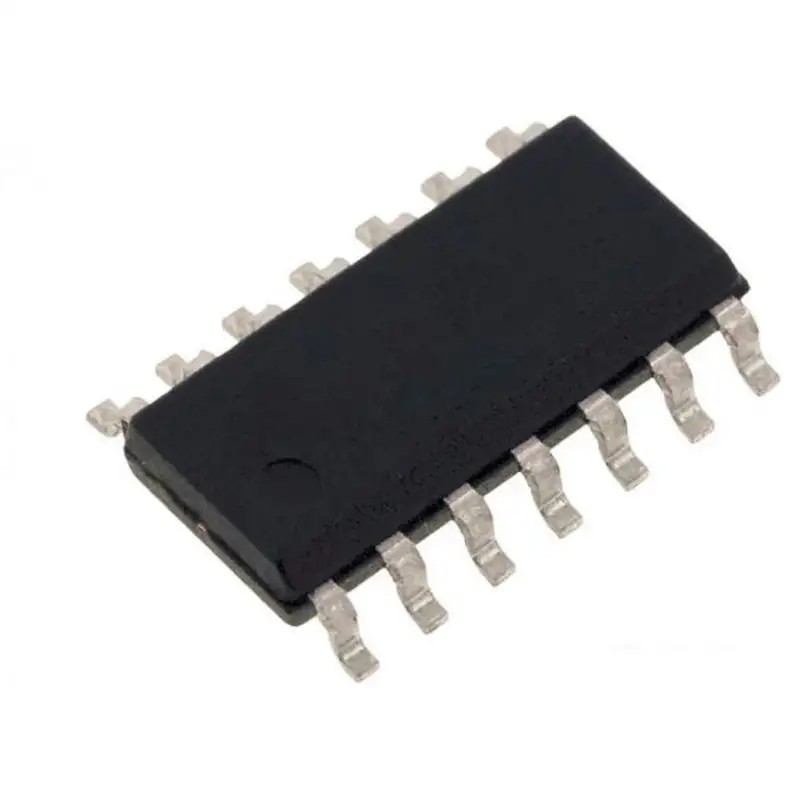

74LS132 IC - (SMD Package) Quad 2-Input Schmitt Trigger IC (74132 IC)

The 74LS132 contains four independent gates each of which performs the logic NAND function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output.

Features:-

• Four Independent NAND Gates
• Each Input has Hysteresis for Noise Immunity
• Jitter Free Output
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages

Specifications:-

Parameter	Specification
Supply Voltage (VCC)	7 V
Input Voltage (VI)	7 V
Operating free-air temperature range	0°C to +70°C
Storage temperature range	–65°C to +150°C

Package Includes :-

1 X 74LS132 IC - (SMD Package) Quad 2-Input Schmitt Trigger IC (74132 IC)
