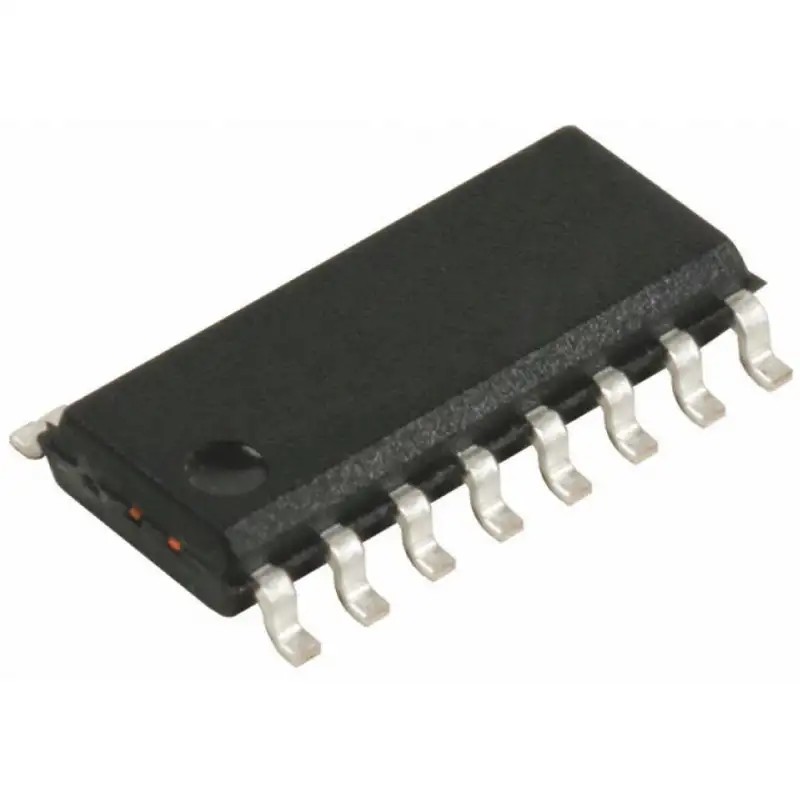

74LS151 IC - (SMD Package) 8-Input Digital Multiplexer IC (74151 IC)

This data selector/multiplexer contains full on-chip decoding to select the desired data source. The 74LS151 selects one-of-eight data sources. The 74LS151 has a strobe input which must be at a low logic level to enable these devices. A high level at the strobe forces the W output HIGH, and the Y output LOW. The 74LS151 features complementary W and Y outputs.

Features :-

• Select one-of-eight data lines
• Performs parallel-to-serial conversion
• Permits multiplexing from N lines to one line
• Also for use as Boolean function generator
• Typical average propagation delay time data input to W output 12.5 ns
• Typical power dissipation 30mW

Specifications :-

• Supply Voltage : 4.75 - 5.25V
• LOW Level Input Voltage : 0.8V
• HIGH Level Output Current : -0.4mA
• LOW Level Output Current : 8mA
• Free Air Operating Temperature : 70°C

Package Includes :-

1 X 74LS151 IC - (SMD Package) 8-Input Digital Multiplexer IC (74151 IC)
