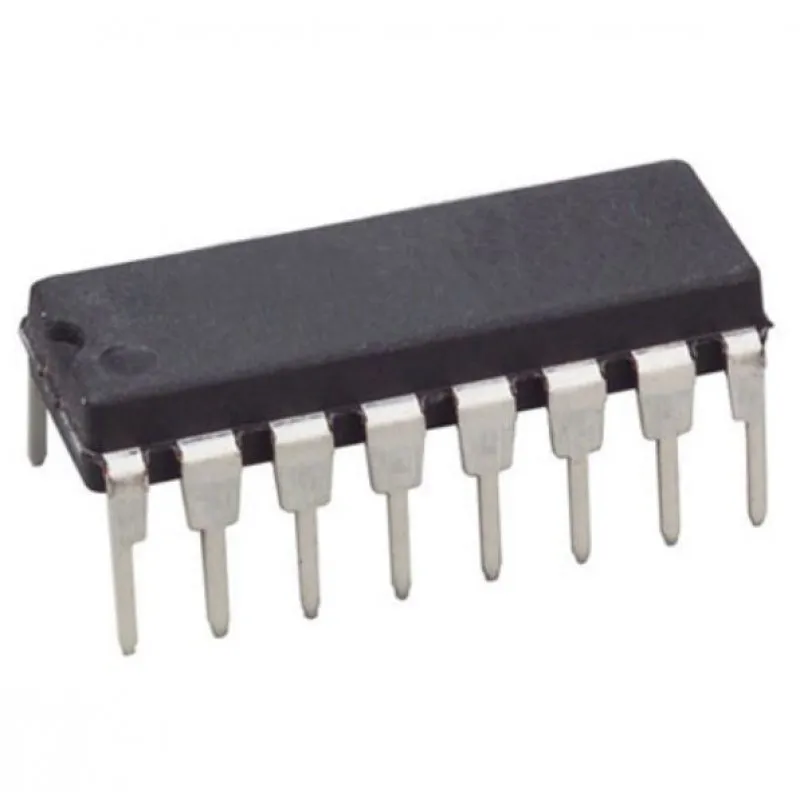

74LS153 Dual 1-of-4 Line Data Selector/Multiplexer IC (74153 IC) DIP-16 Package

In 74LS153 IC, Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections.

Features:-

• Permits multiplexing from N lines to 1 line

• Performs at parallel-to-serial conversion

• Strobe (enable) line provided for cascading (N lines to n lines)

• High fan-out, low impedance, totem pole outputs

• Typical average propagation delay times From data 14 ns From strobe 19 ns From select 22 ns

• Typical power dissipation 31 mW

Specifications:-

Related Document:-

74LS153 IC Datasheet
