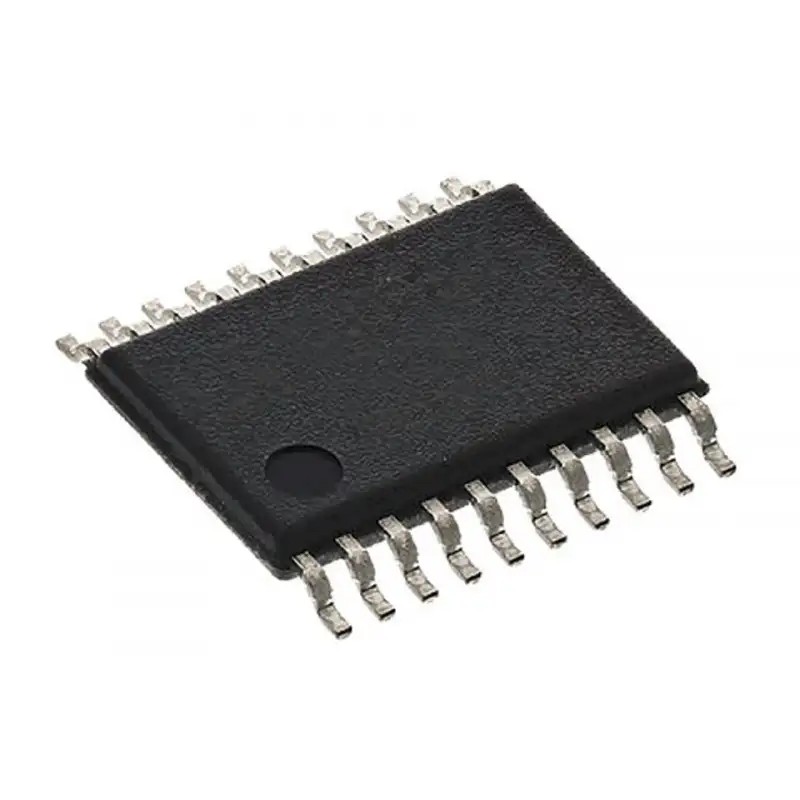

74LS245 IC - (SMD Package) - Octal Bus Transceiver IC (74245 IC)

The 74LS245 SMD is an Octal Bus Transmitter/Receiver designed for 8-line asynchronous 2-way data communication between data buses. Direction Input (DR) controls transmission of Data from bus A to bus B or bus B to bus A depending upon its logic level. The Enable input (E) can be used to isolate the buses. The following are the features:-

• Hysteresis Inputs to Improve Noise Immunity

• 2-Way Asynchronous Data Bus Communication

• Input Diodes Limit High-Speed Termination Effects

• ESD > 3500 Volts

Specification:-

Symbol	Parameter	Min	Type	Max	Units
VCC	Supply Voltage	4.75	5	5.25	V
TA	Operating Ambient Temperature Range	0	25	70	°C
IOH	Output Current — High			-3	m A
				-15	m A
IOL	Output Current — Low			24	m A

Related Document:-

74LS245 SMD Data Sheet
