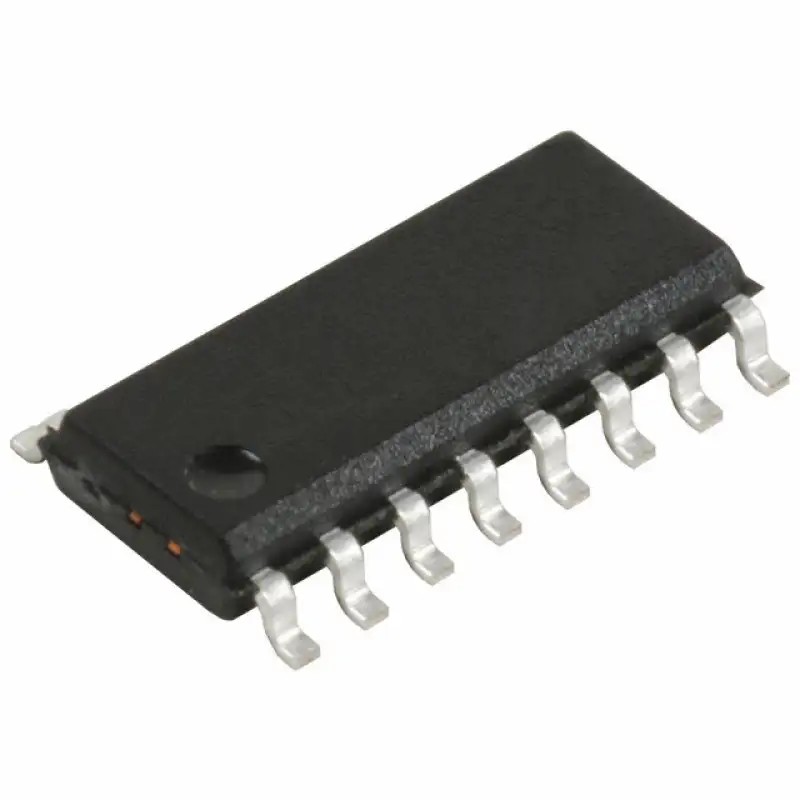

74LS368 IC - (SMD Package) - 3-State Hex Bus Drivers IC (74368 IC)

These Hex buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus oriented receivers and transmitters. The designer has choice of selected combinations of inverting and noninverting outputs, symmetrical G (active-low control) inputs. These devices feature high fan-out, improved fan-in, and can be used to drive terminated lines down to 133 ohms.

Features :-

• Hex Buffers with Improved Performance
• 3-State Outputs Drive Bus Lines
• Choice of True or Inverting Outputs
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages

Specifications :-

• Supply Voltage : 4.75 - 5.25V
• HIGH Level Input Voltage : 2.0V
• LOW Level Input Voltage : 0.8V
• HIGH Level Output Current : -5.2mA
• LOW Level Output Current : 32mA
• Free Air Operating Temperature : 70°C

Package Includes :-

1 X 74LS368 IC - (SMD Package) - 3-State Hex Bus Drivers IC (74368 IC)
