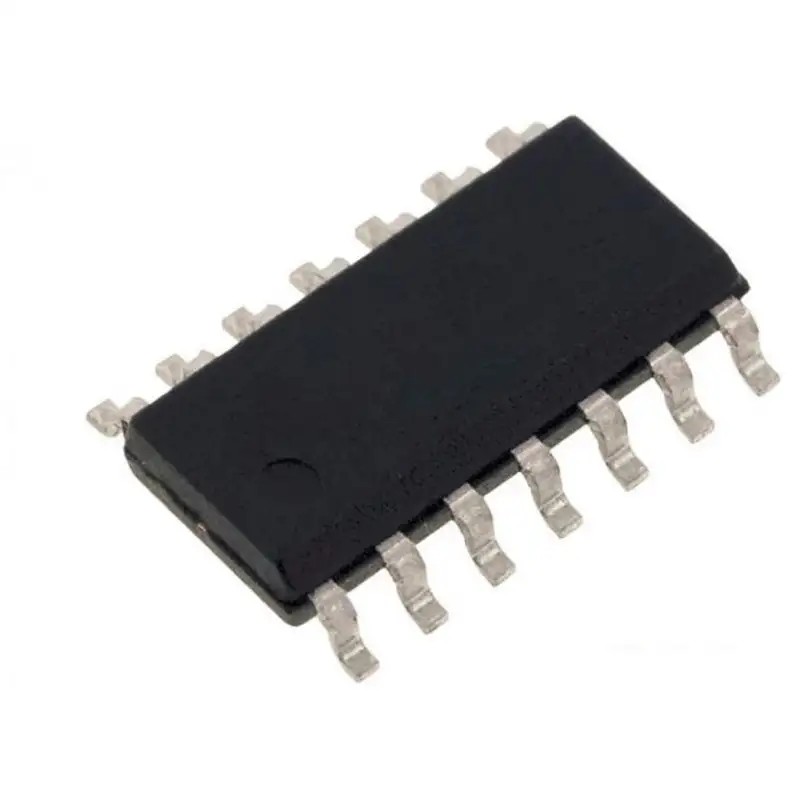

74LS54 IC - (SMD Package) Quad 2-Input AND/OR Inverter Gate IC (7454 IC)

These device contain 4-wide AND-OR-INVERT gates. The 74LS54 are characterized for operation over the full military temperature range of 0 degree C to 70 degree C.

Specifications :-

• Supply Voltage : 4.5 - 5.5V
• Operating Ambient Temperature Range : 70°C
• Input HIGH Voltage : 2.0V
• Input LOW Voltage : 0.7V
• Input Clamp Diode Voltage : -1.5V
• Output HIGH Voltage : 3.5V
• Output LOW Voltage : 0.4V
• Input HIGH Current : 20µA
• Input LOW Current : -0.4mA
• Short Circuit Current : -100mA

Package Includes :-

1 X 74LS54 IC - (SMD Package) Quad 2-Input AND/OR Inverter Gate IC (7454 IC)
