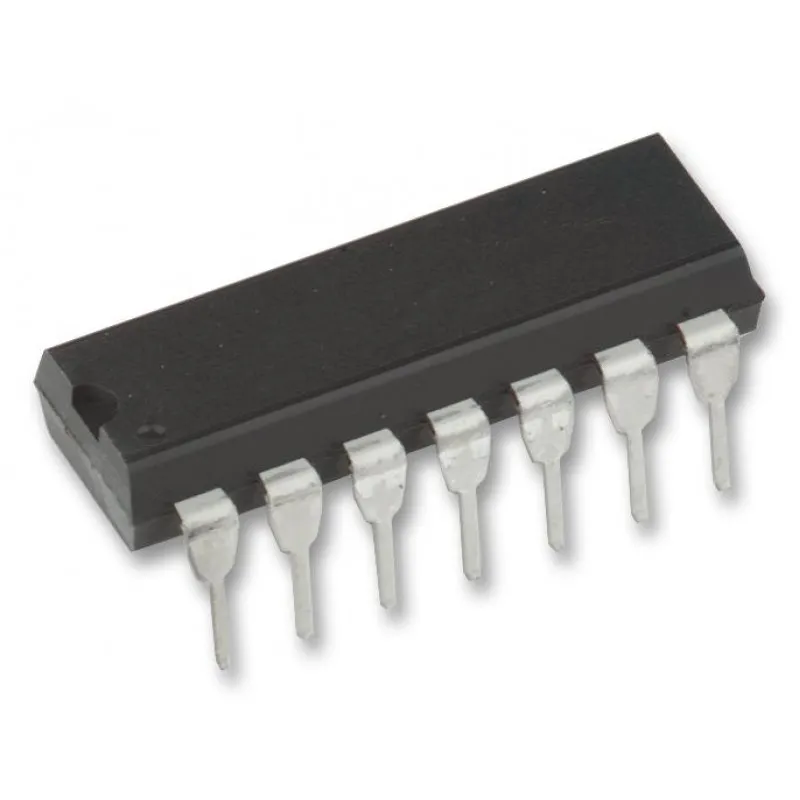

74LS74 Dual D-type Positive Edge-triggered Flip-Flops IC (7474 IC) DIP-14 Package

The 74LS74 device contains two independent positive-edge-triggered D flip-flops with complementary outputs. The information on the D input is accepted by the flip-flops on the positive going edge of the clock pulse. The triggering occurs at a voltage level and is not directly related to the transition time of the rising edge of the clock. The data on the D input may be changed while the clock is LOW or HIGH without affecting the outputs as long as the data setup and hold times are not violated. A low logic level on the preset or clear inputs will set or reset the outputs regardless of the logic levels of the other inputs.

Features:-

• Two Independent Negative Edge Triggered JK Flip-Flops

• Standard Pin Arrangement

• Fast Switching Times

• Operating Temperature up to 70°C

• Standard TTL Switching Voltages

Specifications :-

Related Document:-

74LS74 IC Datasheet
