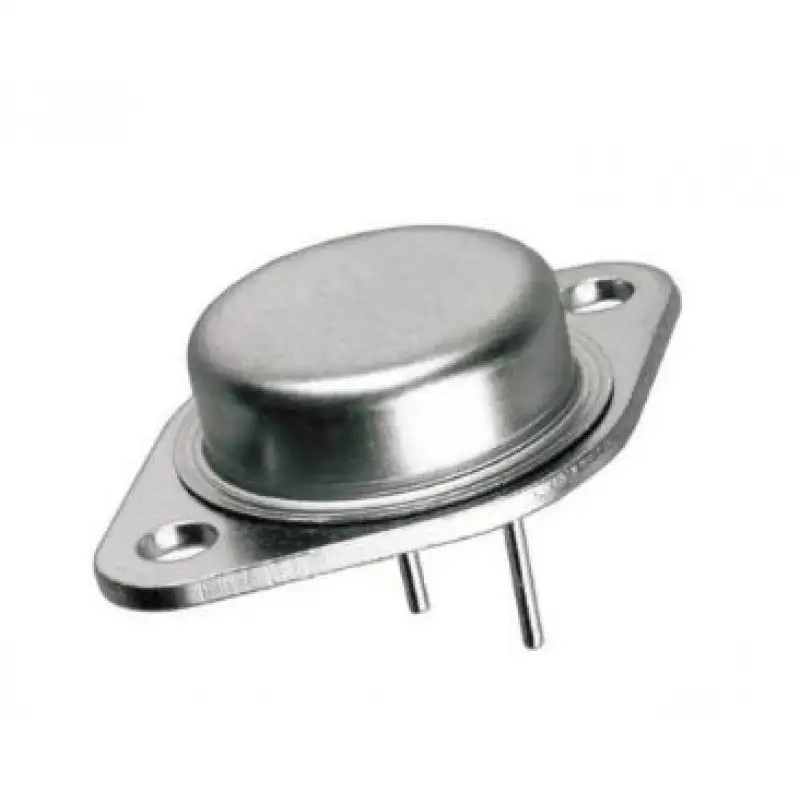

- BU208D NPN High Voltage Fast switching Power Transistor 700V 5A TO-3 Metal Package
Click Image to Preview
BU208D NPN High Voltage Fast switching Power Transistor 700V 5A TO-3 Metal Package
Brand: Generic | SKU: 1598056
₹ 151.00
₹ 247.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
BU208D is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:-
| Transistor Polarity | NPN |
| Collector−Emitter Voltage (VCEO) | 700V |
| Collector−Emitter Voltage (VCES) | 1500V |
| Emitter-Base Voltage (VEBO) | 5V |
| Continuous Collector Current (Ic) | 5A |
| Continuous Base Current (Ib) | 3.5A |
| Operating Temperature Range | -65 - 115°C |
| Power Dissipation (Pd) | 60W |
| Fall Time (tF) | 0.6 µs |
