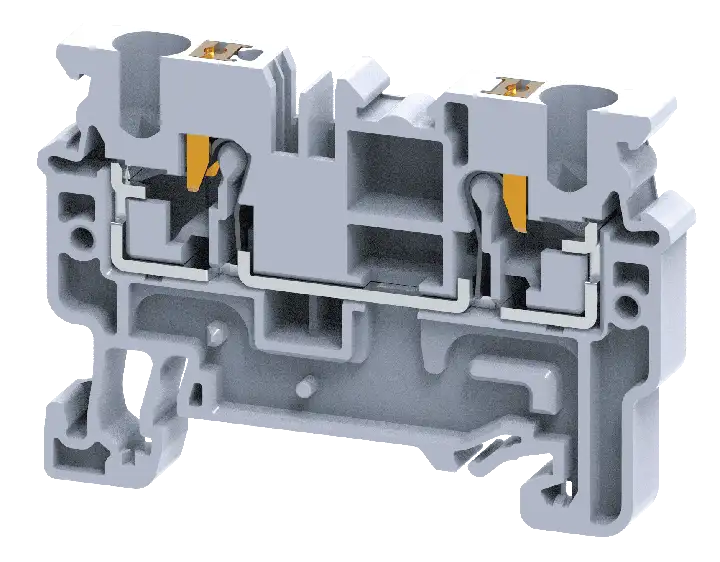

Connectwell CP4 4 sq.mm Push In Feed Through Terminal Blocks

The Connectwell CP4 is a 4 mm² Feed Thru Push in Terminal Block in Grey color. The CP series Push-In Terminal Blocks are the next generation of compact Terminal Blocks. According to IEC standards, this series of Terminal Blocks has a 1000V rating. The new CP series terminals have a much wider wire termination range. To use the flexible cable without a lug for connections, press the top push button. To make connections, the lugged cable can be pressed directly into the clamp.

Wire Entry Orientation

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Rated Surge Voltage

8 kV

Pollution Degree

3

Dimensions

45.75mm

Height with DIN 35 * 7.5mm rail

38.25mm

Length

54.8mm

Width(Thickness)

6mm
