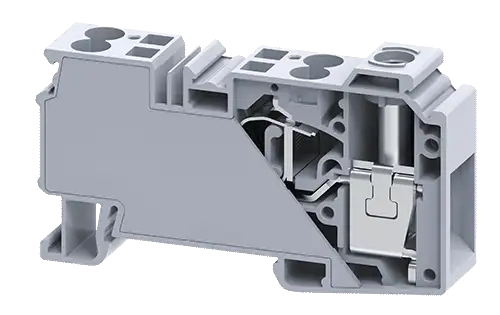

Connectwell CXDB35/10 35sq.mm Input 10 sq mm Output Hybrid Terminal

The Connectwell CXDB35/10 is a Modular Distribution Block with 10mm² Output connections and 35mm² Input connections. The CXDB distribution block family is an excellent choice for a simplified distribution system. The incoming cable is connected to the block via a screw clamp. All of the terminals are internally connected and offer multiple connections for the incoming wires. The incoming connection is effectively shrouded by a protective shield.

Wire Entry Orientation

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Operated by

Screw Driver

Rated Surge Voltage

8 kV

Pollution Degree

3

Dimensions

54.3mm

Height with DIN 35 * 7.5mm rail

46.8mm

Length

81.6mm

Width(Thickness)

16mm
