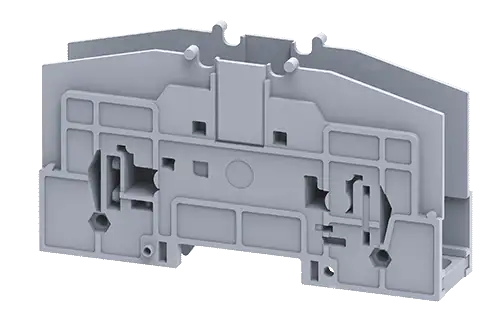

Connectwell PTB35/50 50 sq.mm Stud Type Power Terminal Blocks

The Connectwell PTB35/50 is a 50 mm² Feed Thru Barrier Type Bolt Terminal BLOCK. PTB series Terminal Blocks are recommended for applications involving large cross-section wires. The wire is crimped to a ring/fork lug and screwed onto the Terminal Block's flat current bar. Specially designed Mounting Feet secure the Terminal Block to the Mounting Rail. Two Lugs of the rated cross-section can be connected to the Terminal Block without adversely affecting the Terminal Block's safety. A hinged protective cover on the PTB35SH and PTB70SH Terminal Blocks makes the Terminal Block shockproof (finger safe) and has a marker recess to accept a marking tag.

Tightening Torque

3 Nm

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Screw Size

M6

Operated by

Nut Driver

Rated Surge Voltage

8 kV

Pollution Degree

3

Dimensions

68.3mm

Height with DIN 35 * 7.5mm rail

61mm

Length

113mm

Width(Thickness)

25mm
