Connectwell PTB70/95 95 sq.mm Stud Type Power Terminal Blocks

Name: Connectwell PTB70/95 95 sq.mm Stud Type Power Terminal Blocks
Brand: Generic
SKU: 5359803

In Stock

Brand: Generic | SKU: 5359803

₹ 71.00

~~₹ 91.00~~

Save 22%

Tax Included and Shipping Rate Calculated at Checkout

Min Qty: 1

Check Delivery Availability:

Enter your pincode to check delivery options

Offer & Other Details

Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
Sales Assistance: Contact us +91 8903831010 for personalized advice.

Description

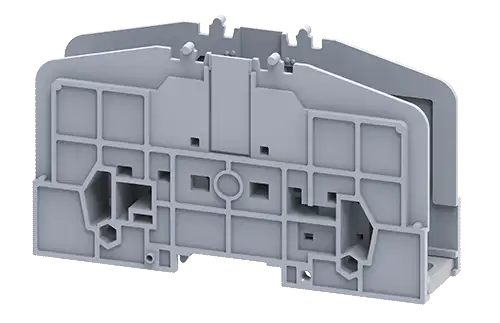

The Connectwell PTB70/95 95 mm² is a Feed Thru Barrier Type Bolt Terminal Block. PTB series Terminal Blocks are recommended for applications involving large cross-section wires. The wire is crimped to a ring/fork lug and screwed onto the Terminal Block's flat current bar. The Terminal Block is held rigidly on the Mounting Rail by specially designed Mounting Feet. Two Lugs of the rated cross-section can be connected to the Terminal Block without adversely affecting the Terminal Block's safety. A hinged protective cover on the PTB35SH and PTB70SH Terminal Blocks makes the Terminal Block shockproof (finger safe) and has a marker recess to accept a marking tag.

Tightening Torque

10 Nm

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Screw Size

Operated by

Nut Driver

Rated Surge Voltage

8 kV

Pollution Degree
