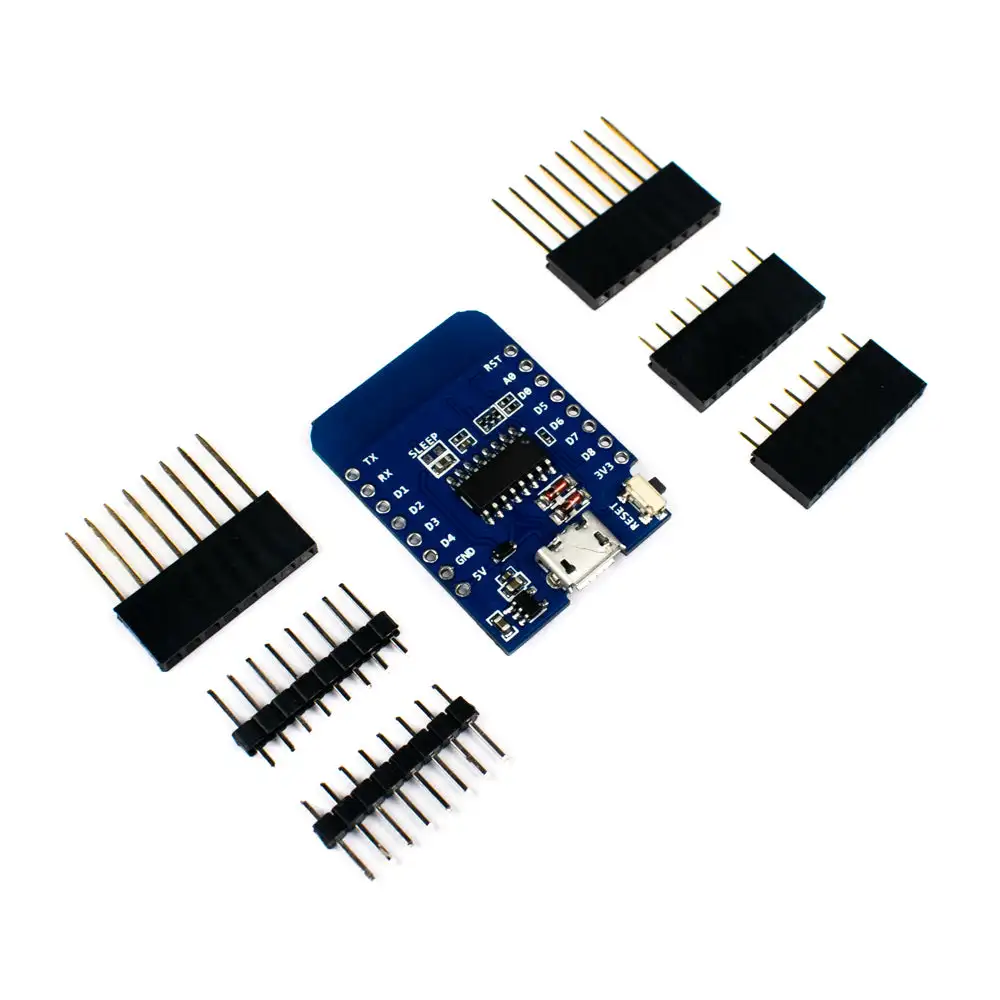

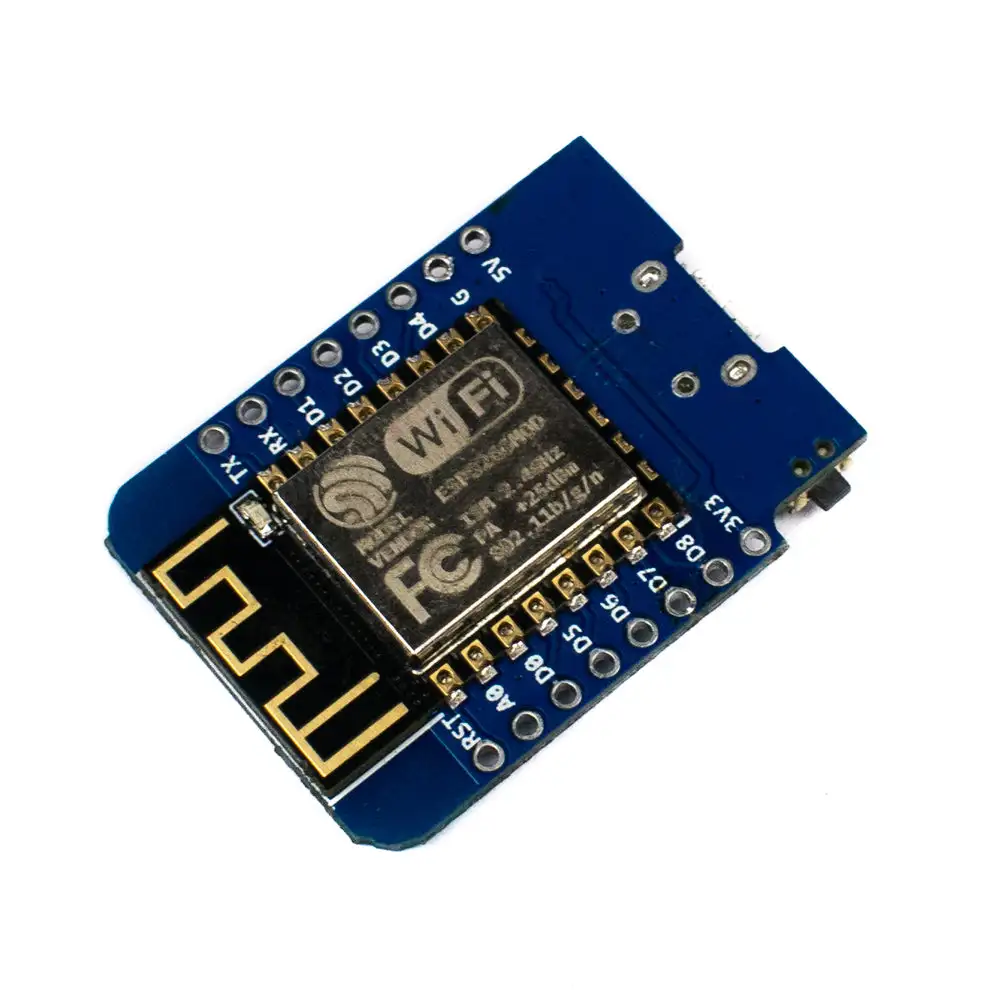

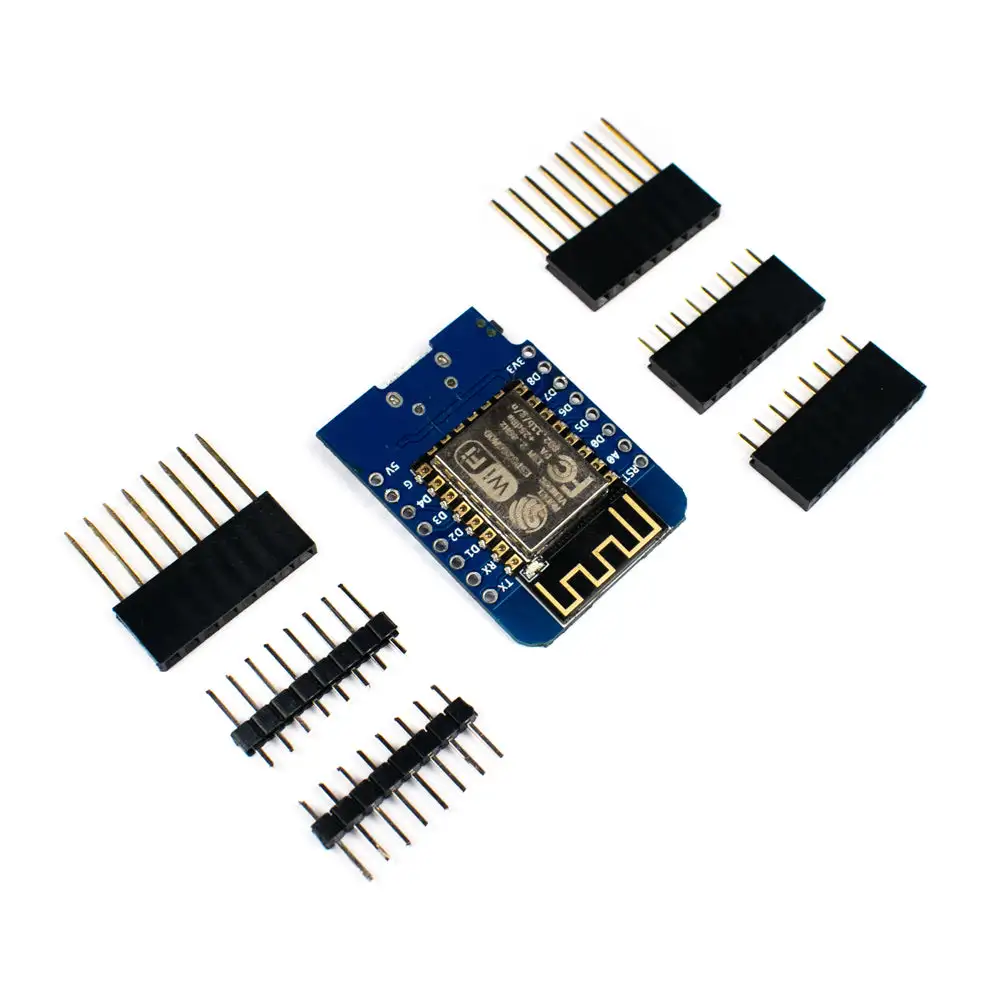

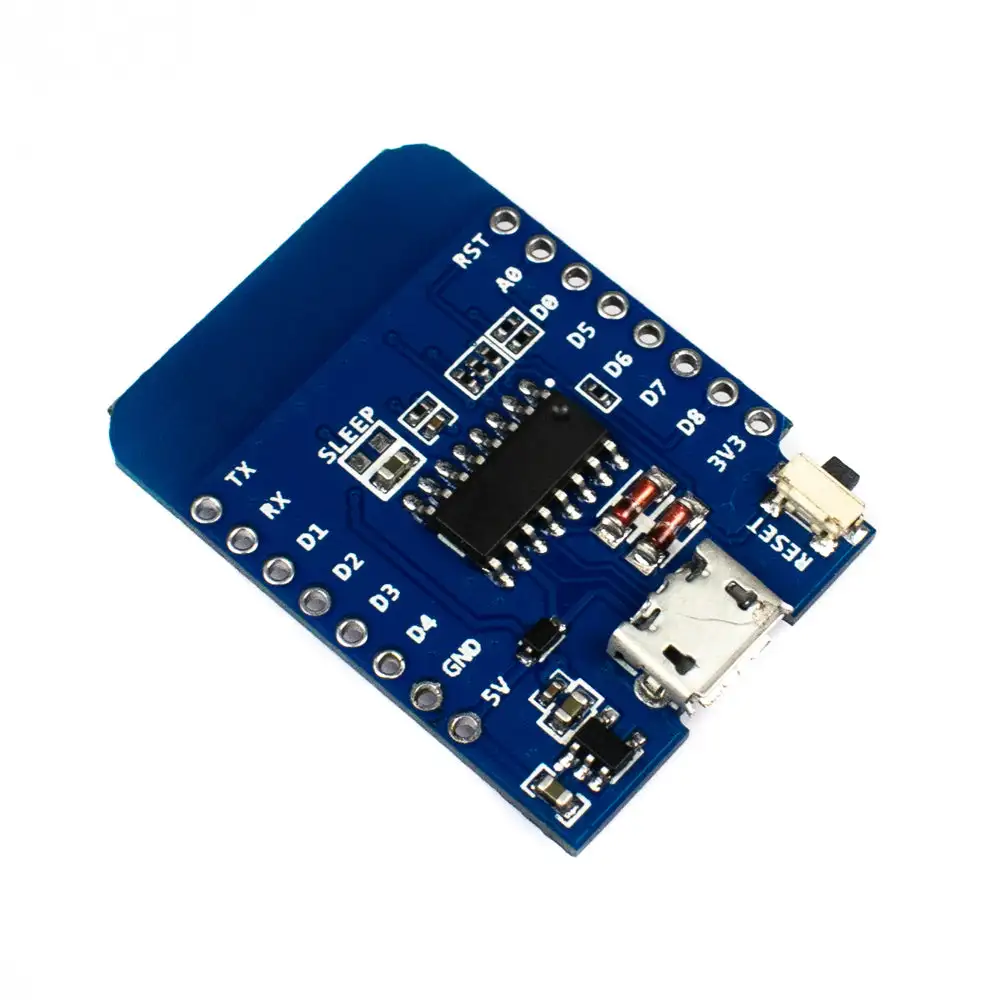

ESP8266 D1 Mini Controller Board

The ESP8266 D1 Mini Controller is an Internet of Things Development Board. It is a little WIFI board based on the ESP8266. There are 11 digital input/output pins withinterrupt/PWM/I2C/one-wire functionality on all of them (except D0) 1 analogue input (maximum 3.3V input) and a Micro USB port.The Wemos D1 Mini is an excellent board for creating WiFi-based Internet of Things projects. It uses ESP8266 Wi-Fi Board (SoC) for IoT applications. It is simple to programe through USB and does not require a separate programmer.It is compatible with Arduino IDE and NodeMCU firmwareChip: ESP-8266EXCompatible with Arduino IDECompatible NodeMCU firmwareGPIO pins: 111 pin ADC (0 V to 3.3 V)Max Input Voltage: 24 VOperating Frequency: 80 / 160 MHzFlash Memory: 4MBI2C interfaceSize: 34.2 x 25.6 mm
