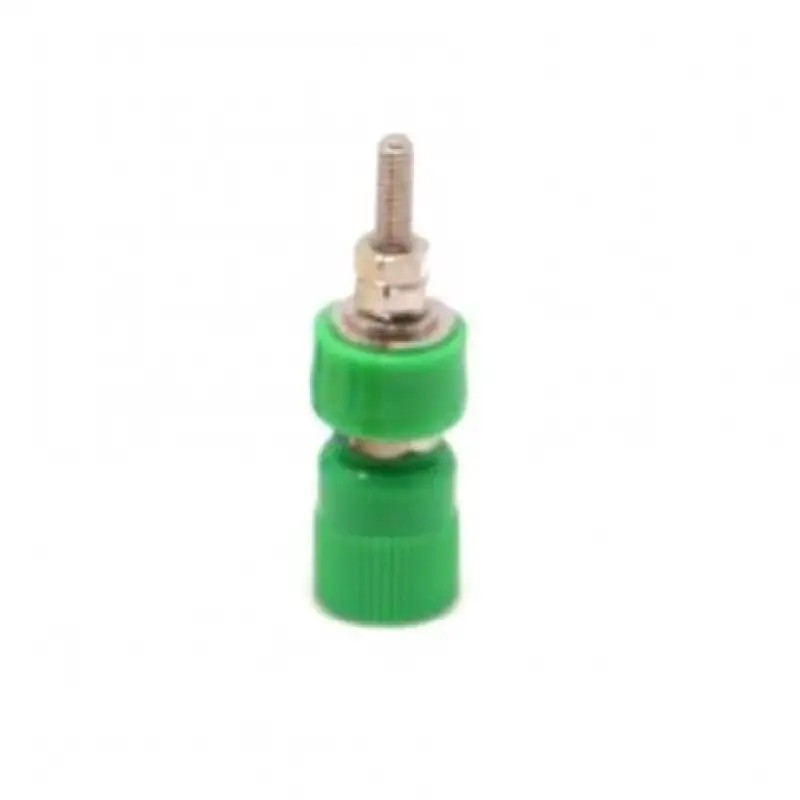

Green S4828 Brass Banana Jack Socket M4 24A 30-60V

This is Green S4828 Brass Banana Jack Socket M4 24A 30-60V. S4828 denotes the model or part number and material of the connector. It refers to a brass-made banana jack socket, designed for electrical connections. The M4 thread size measures 4 millimeters in diameter and is often used in metric screw threads.

It is rated for a maximum current of 24 amperes. This means the connector is designed to handle electrical currents up to 24A safely.It is designed to work within the voltage range of 30 to 60 volts.

This type of brass banana jack socket, with an M4 thread size, is commonly used in electronic equipment and setups requiring a reliable connection capable of handling moderate electrical currents within the specified voltage range. The brass construction offers good conductivity and durability for electrical connections.

Features:

1. Easy to use
2. Good quality product
3. Good conductivity and durability

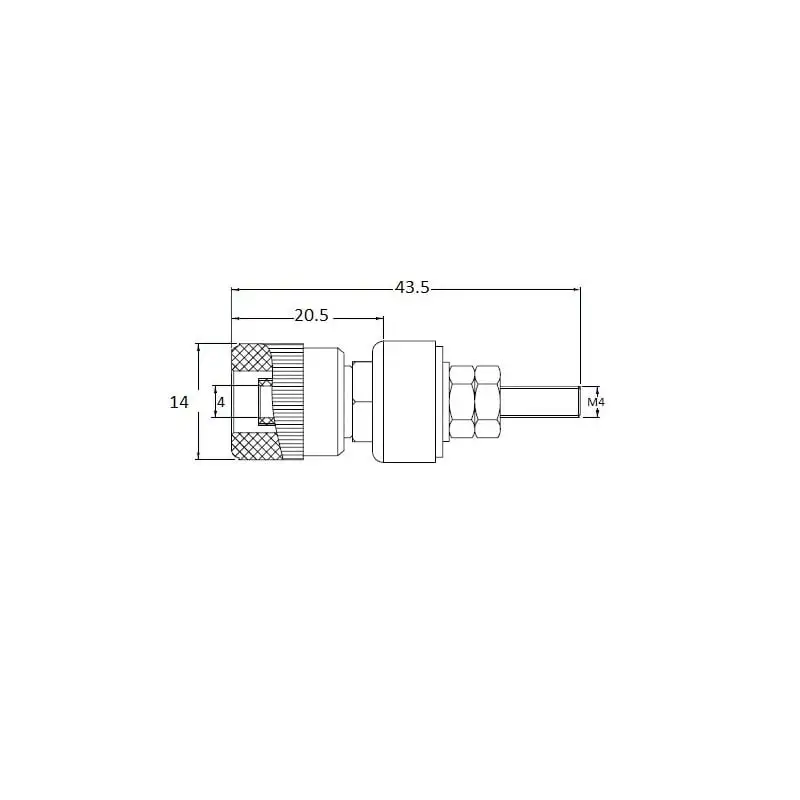

Specifications:

1. Color: Green
2. Model: S2848
3. Current Capacity: 24A
4. Thread Diameter: 4mm
5. Material: Metal
6. Voltage range: 30 to 60 volts.
7. Length: 43mm
8. Outermost diameter: 14mm
9. Weight (g): 12

Package Includes:

1 x Green S4828 Brass Banana Jack Socket M4 24A 30-60V
