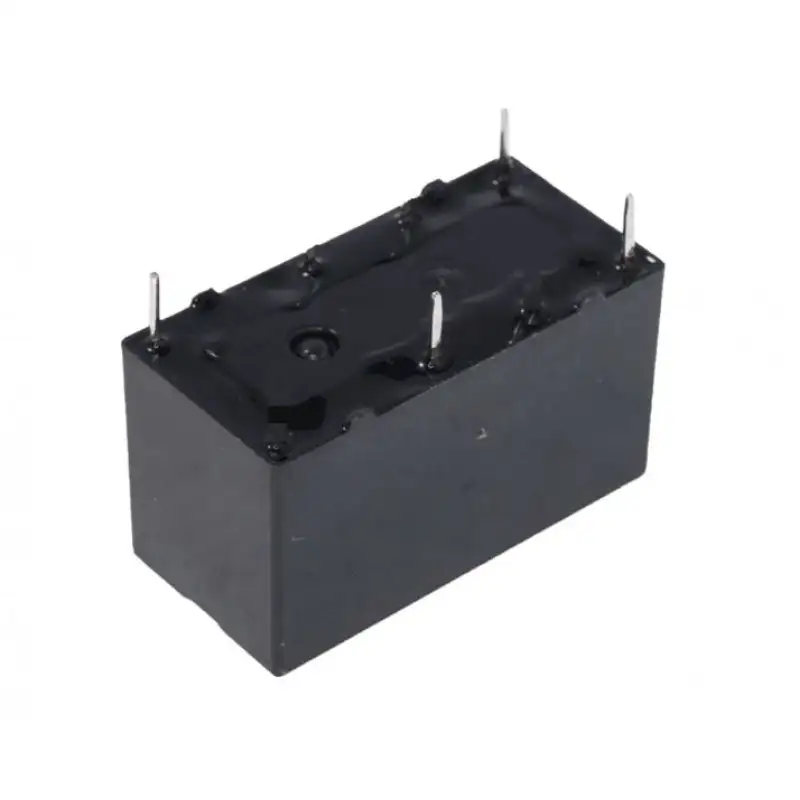

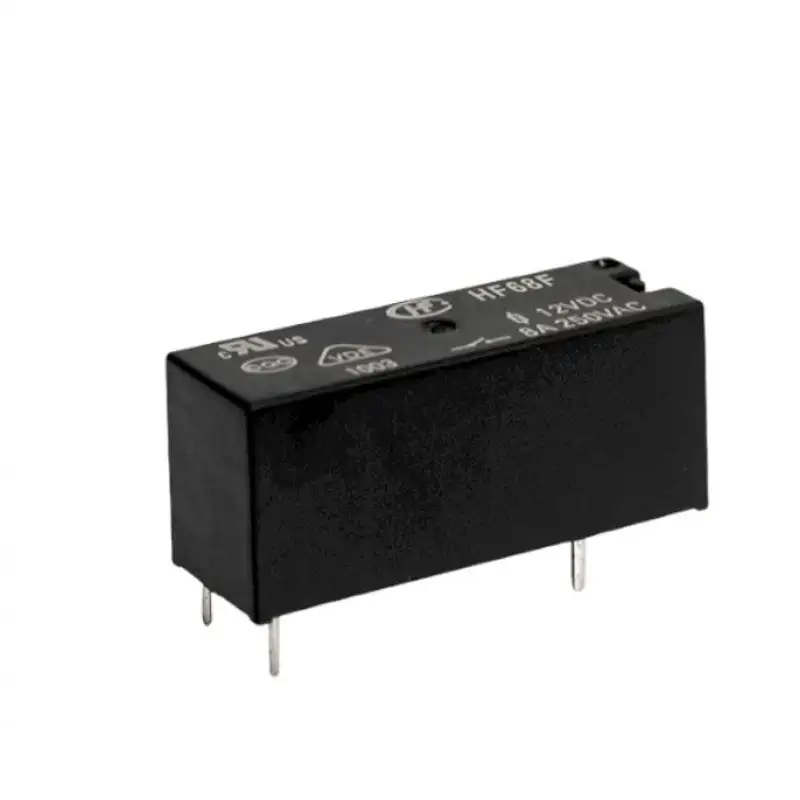

Hongfa 24V 8A DC HF68F/024-1HSB 4 Pin High Power SPST Relay

Miniature high power relay offers low height, 8A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.

Features:

• 8A switching capability
• 5kV dielectric strength (between coil and contacts)
• Low height: 12.5 mm
• Creepage distance >8mm
• Meeting VDE 0700, 0631 reinforce insulation
• Product in accordance to IEC 60335-1 available
• 1 pole configurations available
• UL insulation system: Class F
• Plastic sealed and flux proofed types available

Specifications:

• Brand : Hongfa
• Coil Voltage (DC) : 24 V
• Contact Arrangement : 2 Form C
• Contact Current Rating :8 A
• Termination : PCB
• Construction : Plastic sealed
• Mounting : DIP
• Contact capacity : AgNi+Au plated
• Contact plating : Au plated
• Release time : < 4ms
• Coil power : 200mW
• Insulation resistance :1000MOhm
• Dielectric strength (between coil & contacts) : 2000VAC 1min
• Operate time : < 7ms
• Ambient temperature : -40~85C
• Max Switching Voltage (VDC) : 120VDC
• Max Switching Voltage (VAC : 240VAC
• Max Switching Current (AC) : 24AC
• Weight: : 5gm
• Electrical endurance:  100000
• Size:  20.0x10.0x11.5mm
• Mechanical endurance : 100000000

Package Includes:

1 x Hongfa 24V 8A DC HF68F/024-1HSB 4 Pin High Power SPST Relay
