- HOT DD30CRTA Lead Acid Battery Charger 12V Charging Device
Click Image to Preview

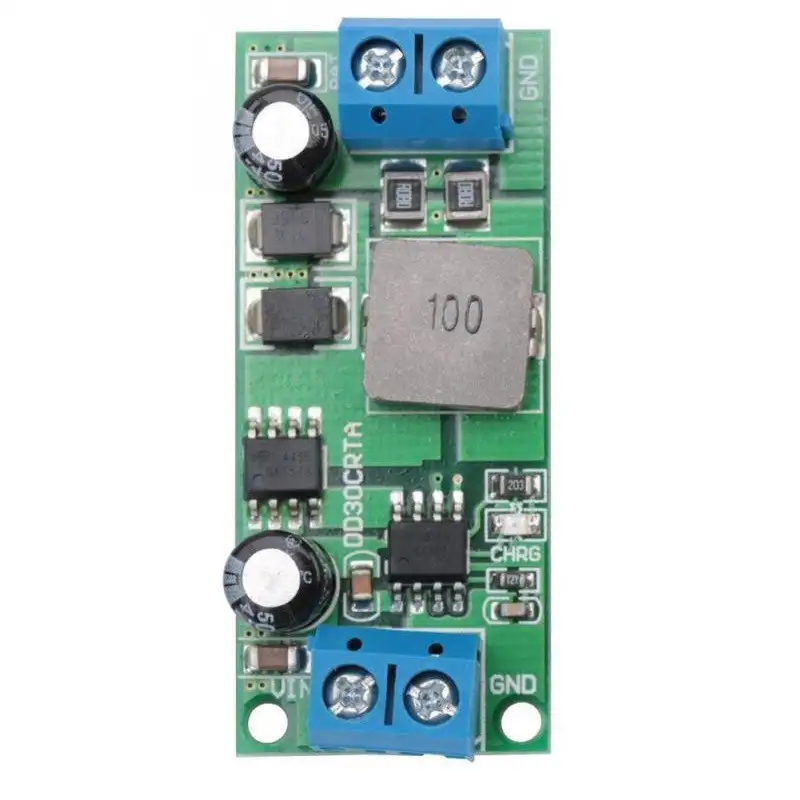

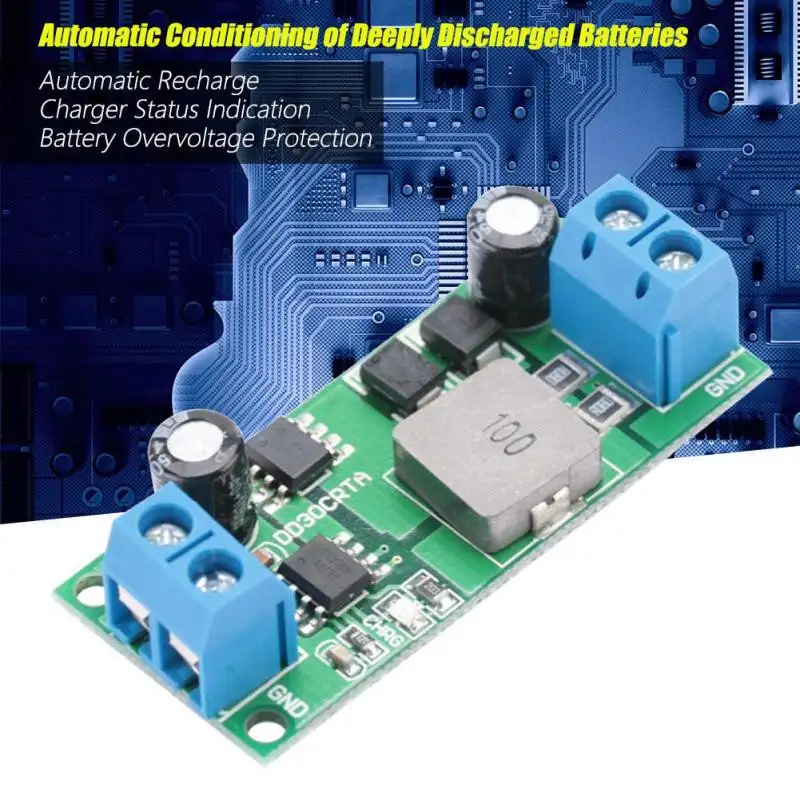

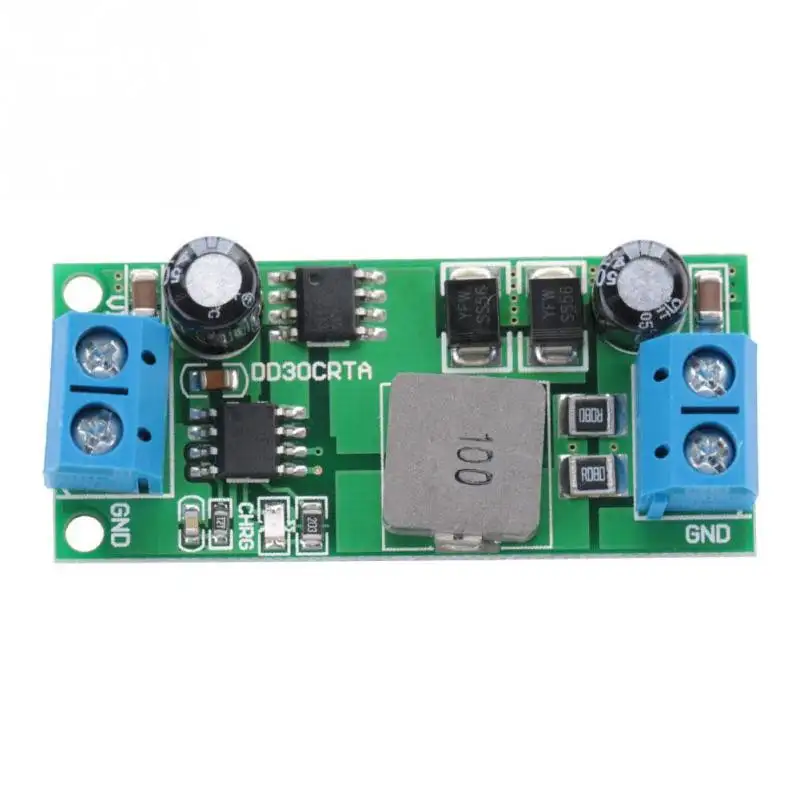

HOT DD30CRTA Lead Acid Battery Charger 12V Charging Device
In Stock
Brand: Generic | SKU: 2351926
₹ 720.00
₹ 1,073.00
Tax Included and Shipping Rate Calculated at Checkout
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
The DD30CRTA is a PWM switch-mode battery charger controller for a 12V lead-acid battery in a small package using a few external components. The DD30CRTA is specially designed for charging 12V lead-acid battery with trickle charge, constant current charge, over-charge and float charge mode. In over-charge and float charge mode, the regulation voltage is internally set.
The constant charge current is programmable with a single sense resistor.
Deeply discharged batteries are automatically trickle charged at 17.5% of the programmed constant charge current until the cell voltage exceeds 75% of the regulation voltage in over-charge mode. The over-charge is terminated once the charging current drops to 38% of the constant charge current, then DD30CRTA will enter float charge mode. A new charge cycle automatically restarts if the battery voltage falls below 83.95% of the over-charge voltage in float-charge mode. DD30CRTA will automatically enter sleep mode when the input voltage is lower than the battery voltage.
Other features include under-voltage lockout and indication, etc.
Modes:-
1: The Regulation Voltage in Over Voltage Mode and Float Charge Mode
The regulation voltage VOC at BAT pin in overcharge mode is set at 14.8V(Typical) with 1.5% accuracy.
In float charge mode, the regulation voltage VFLOAT at BAT pin is 91.57% of that in overcharge mode, which is 13.55V(Typical).
Trickle Charge Mode At the beginning of a charge cycle, if the battery voltage is below 75%VOC, the charger goes into trickle
charge mode with the charge current set at about 17.5% of the constant current.
2: End-of-Over Charge Current
When the battery voltage approaches the over-charge voltage, the charger goes into the overcharge mode. In
overcharge mode, the charge current start to decrease and when the charge current drops to 38% of constant
charge current, the charger goes into float-charge mode.
3: Float Charge Mode
After the overvoltage charge is terminated, the charger goes into float charge mode. In float charge mode, the
battery voltage is regulated to 91.57%VOC, namely 13.55V(Typical). Float charge mode can compensate for
the loss of battery power due to self-discharge or external loading.
4: Automatic Battery Recharge
In float mode, if both the battery and the input power supply (wall adapter) are present, a new charge cycle will
begin if the battery voltage drops below 83.95%VOC due to self-discharge or external loading.
A new charge cycle can also be started manually by plugging off the input supply and reapplying it.
Application:
- Car battery charging
- Solar battery charging
- Loudspeaker
- Lead-Acid Battery Charger
- Electric Bicycle Charger
- UPS
- Portable Industrial and Medical Equipment
- Standalone Battery Chargers
Features:
- Fixed Over-Charge Voltage
- Overcurrent protection
- Automatic Conditioning of Deeply Discharged Batteries
- Automatic Recharge
- ChargerIndication
- Battery Over voltage Protection
- Suitable for 1-10000AH 12V Lead-Acid Battery charger
Package Includes:
1 x HOT DD30CRTA Lead Acid Battery Charger 12V Charging Device
