- IRF720 MOSFET - 400V 3.3A N-Channel Power MOSFET TO-220 Package
Click Image to Preview

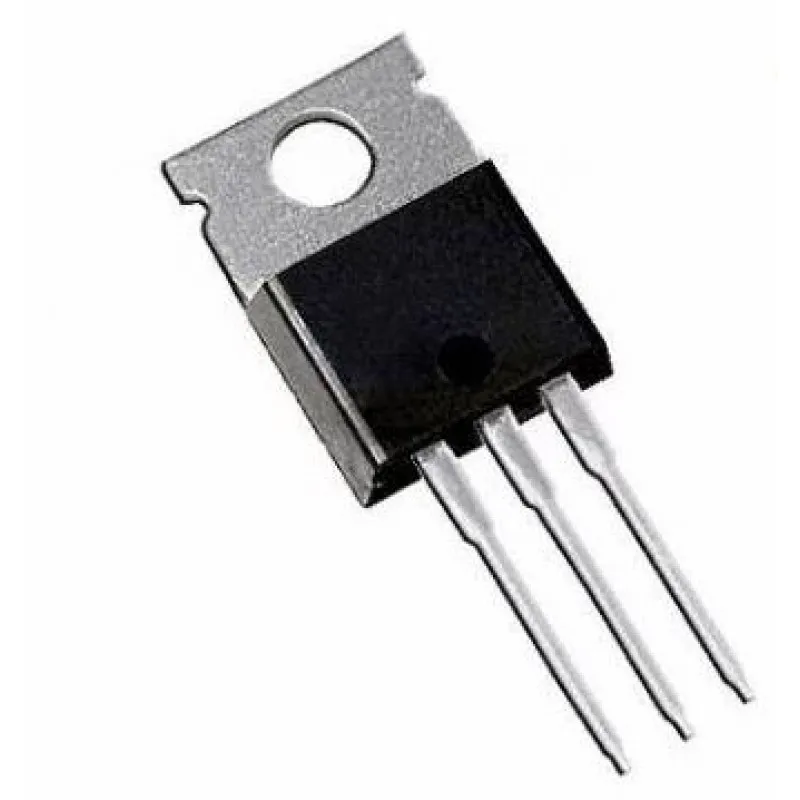

IRF720 MOSFET - 400V 3.3A N-Channel Power MOSFET TO-220 Package
Brand: Generic | SKU: 8170340
₹ 33.00
₹ 58.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
IRF720 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W.
Features:-
• Dynamic dV/dt rating
• Repetitive avalanche rated
• Fast switching
• Ease of paralleling
• Simple drive requirements
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 400V |
| Continuous Drain Current (Id) | 3.3A |
| Drain-Source Resistance (Rds On) | 1.8Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 20 nC |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 50W |
