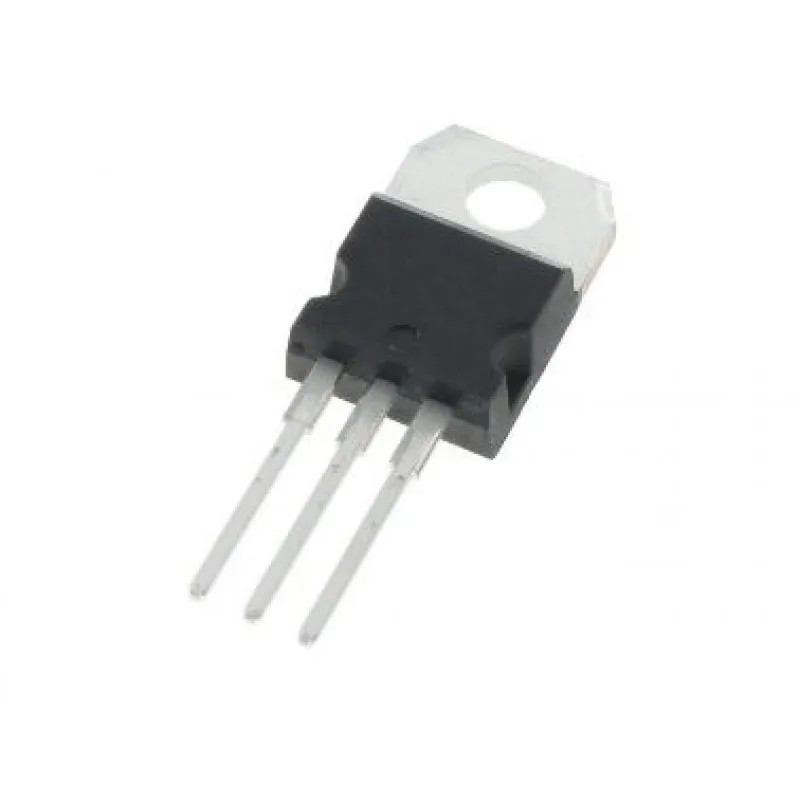

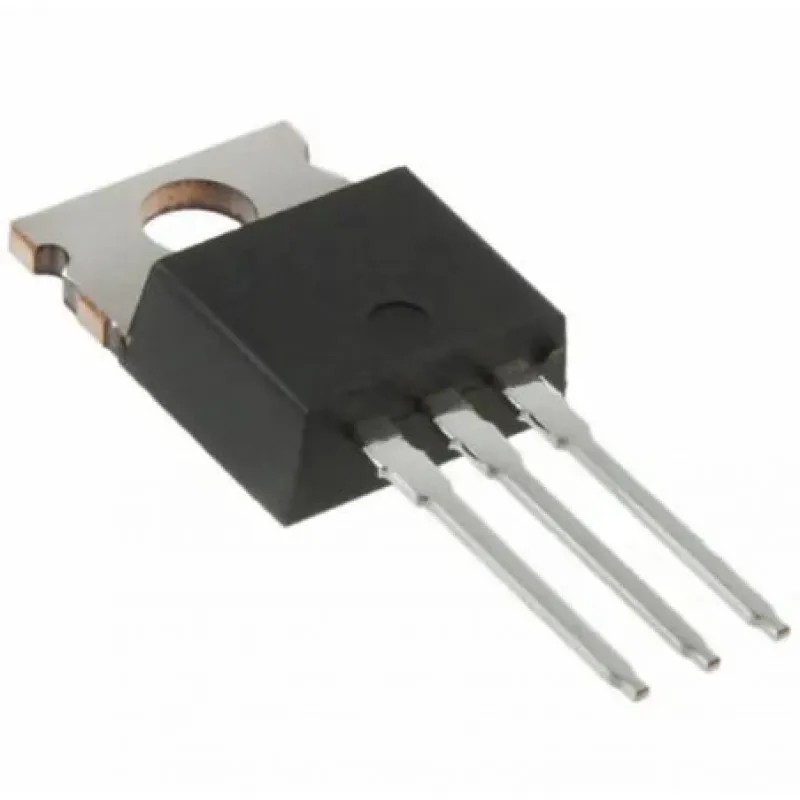

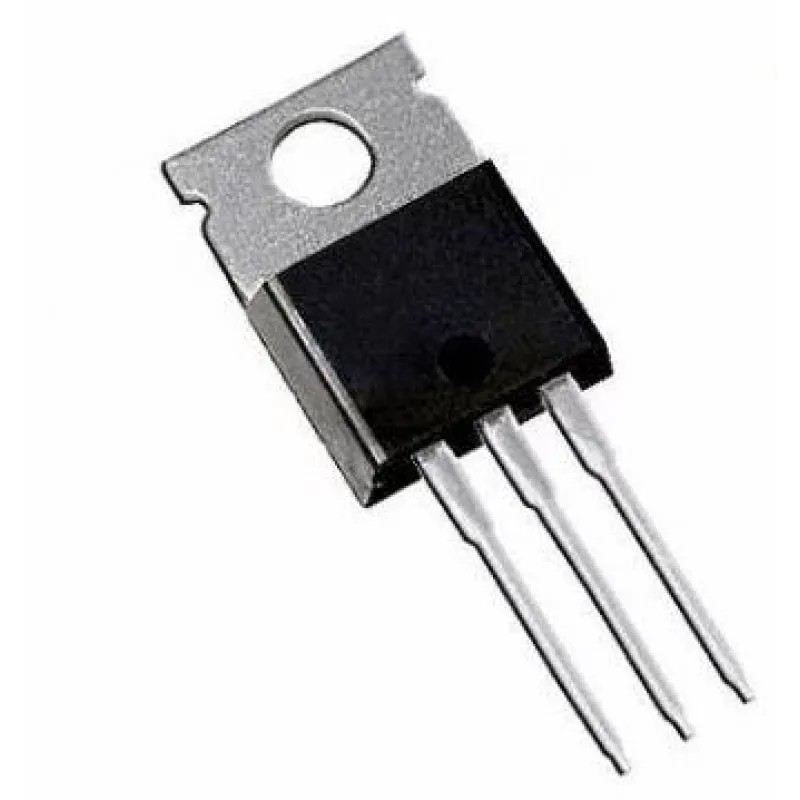

- IRF820 MOSFET - 500V 2.5A N-Channel Power MOSFET TO-220 Package
Click Image to Preview
IRF820 MOSFET - 500V 2.5A N-Channel Power MOSFET TO-220 Package
Brand: Generic | SKU: 9632795
₹ 36.00
₹ 50.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
IRF820 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
• Dynamic dV/dt rating
• Repetitive avalanche rated
• Fast switching
• Ease of paralleling
• Simple drive requirements
• Compliant to RoHS directive 2002/95/EC
Detailed Specifications
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 500V |
| Continuous Drain Current (Id) | 2.5A |
| Drain-Source Resistance (Rds On) | 3Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 17 nC |
| Operating Temperature Range | -65 - 150°C |
| Power Dissipation (Pd) | 50W |
