- IRF9630 MOSFET- 200V 6.5A P-Channel Power MOSFET TO-220 Package
Click Image to Preview

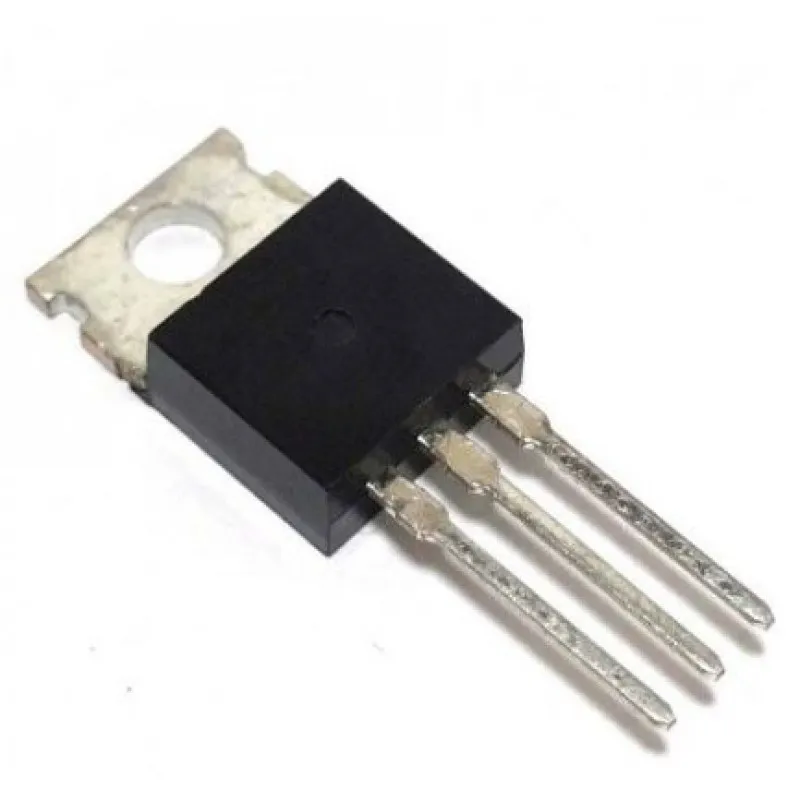

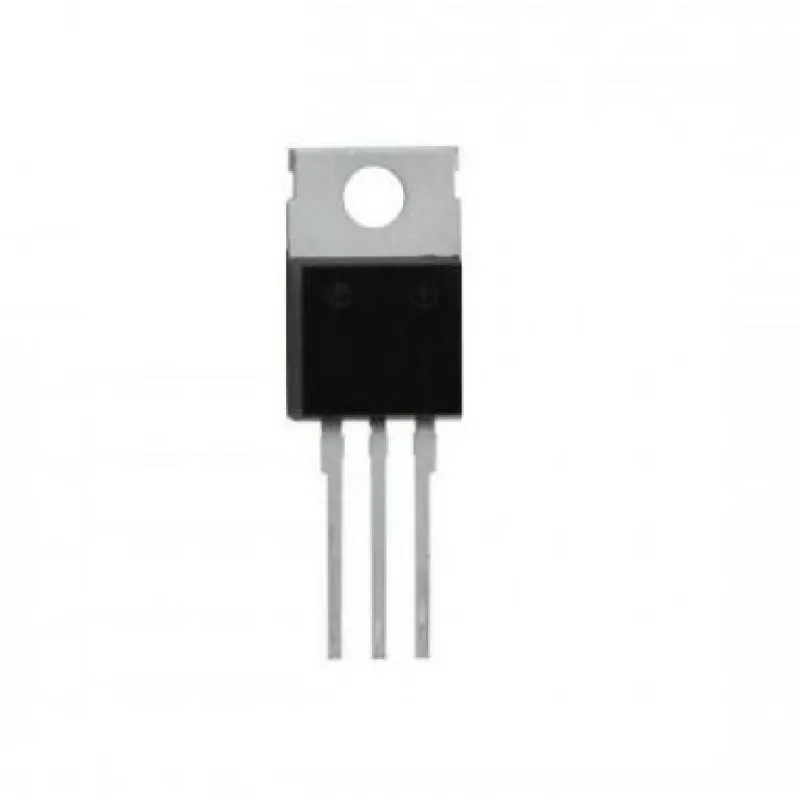

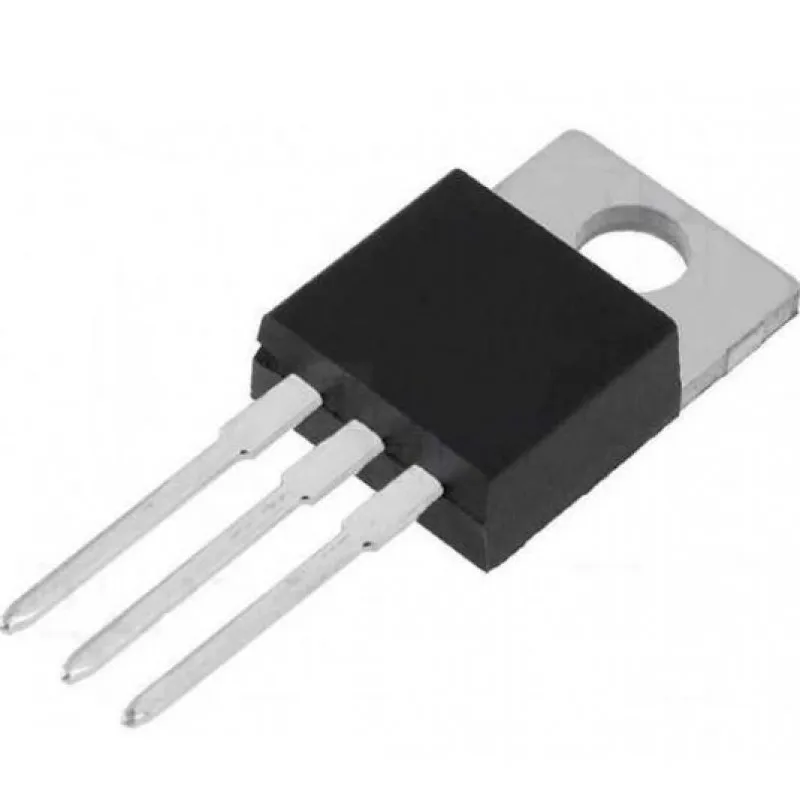

IRF9630 MOSFET- 200V 6.5A P-Channel Power MOSFET TO-220 Package
Brand: Generic | SKU: 9435283
₹ 44.00
₹ 66.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
IRF9630 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
• Dynamic dV/dt rating
• 100% avalanche rated
• Fast switching
• Ease of paralleling
• Simple Drive Requirements
• P-Channel
• Advanced process technology
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | P-Channel |
| Drain-Source Breakdown Voltage (Vds) | -200V |
| Continuous Drain Current (Id) | -6.5A |
| Drain-Source Resistance (Rds On) | 0.80Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 29 nC |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 74W |
