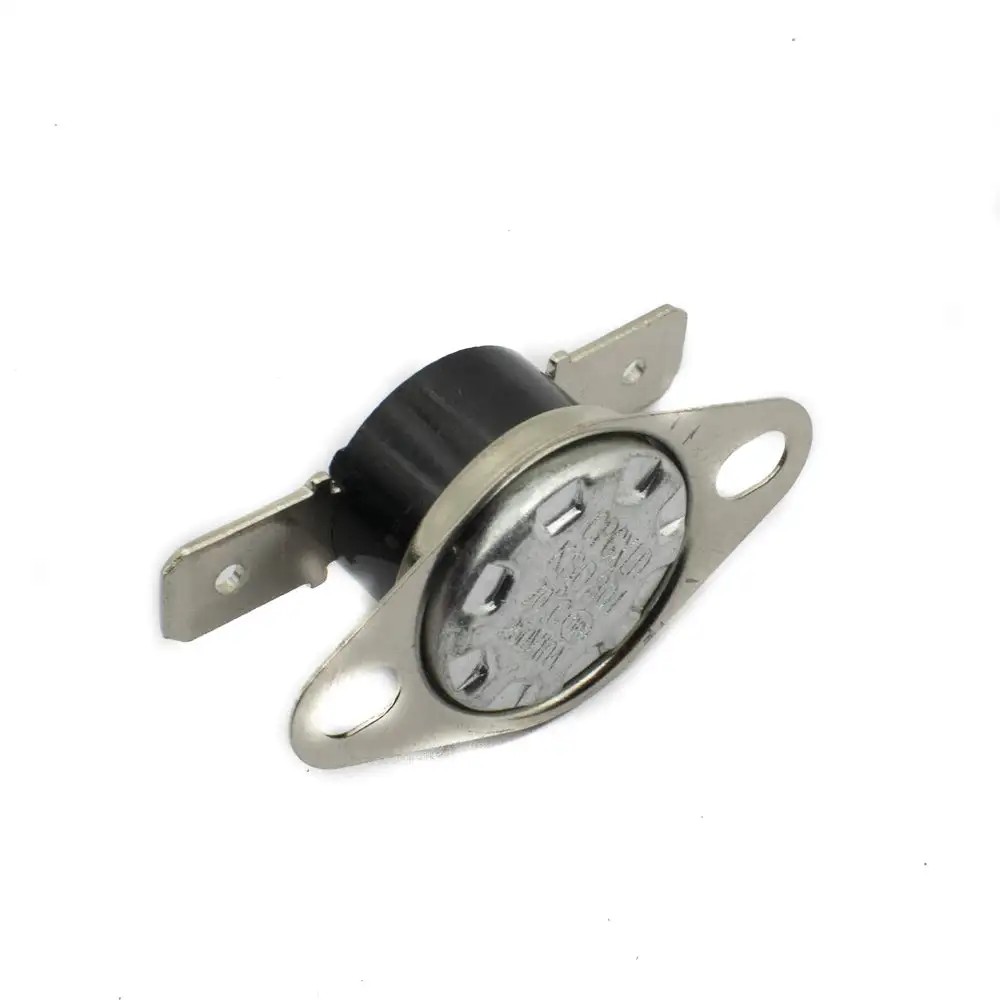

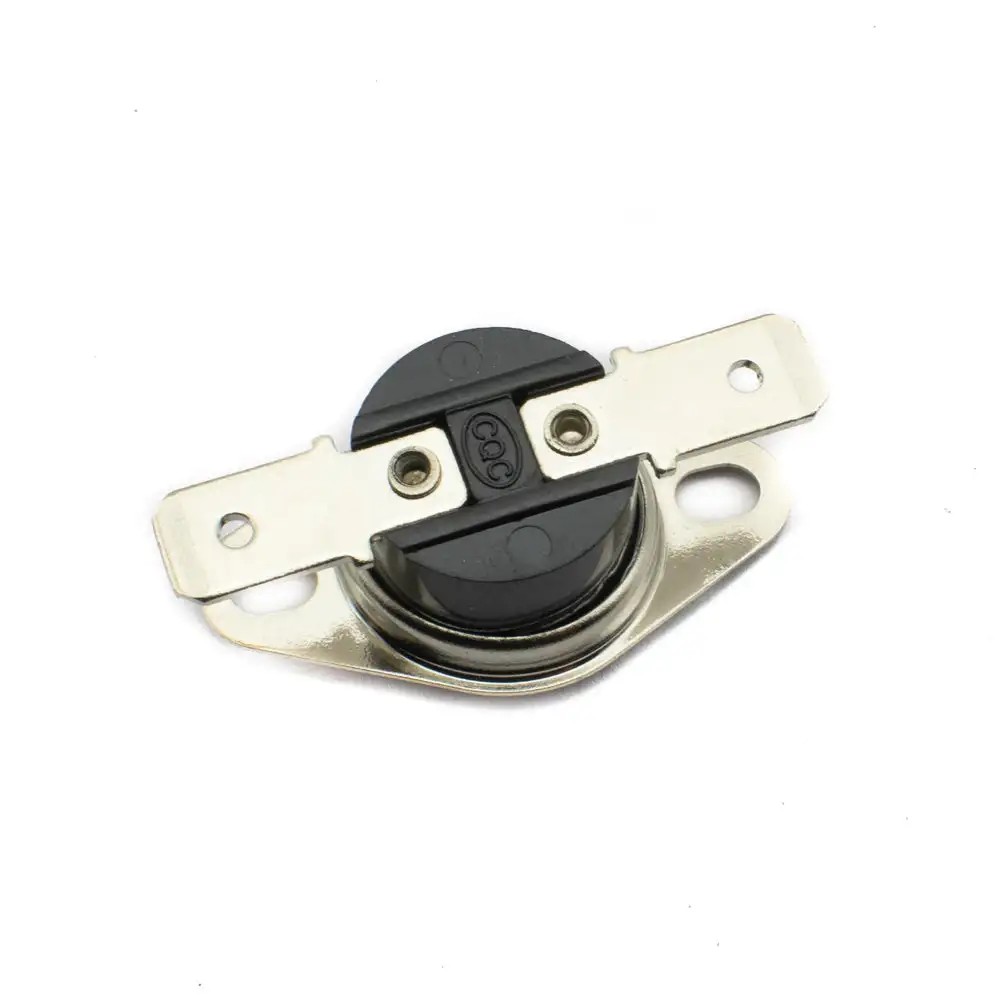

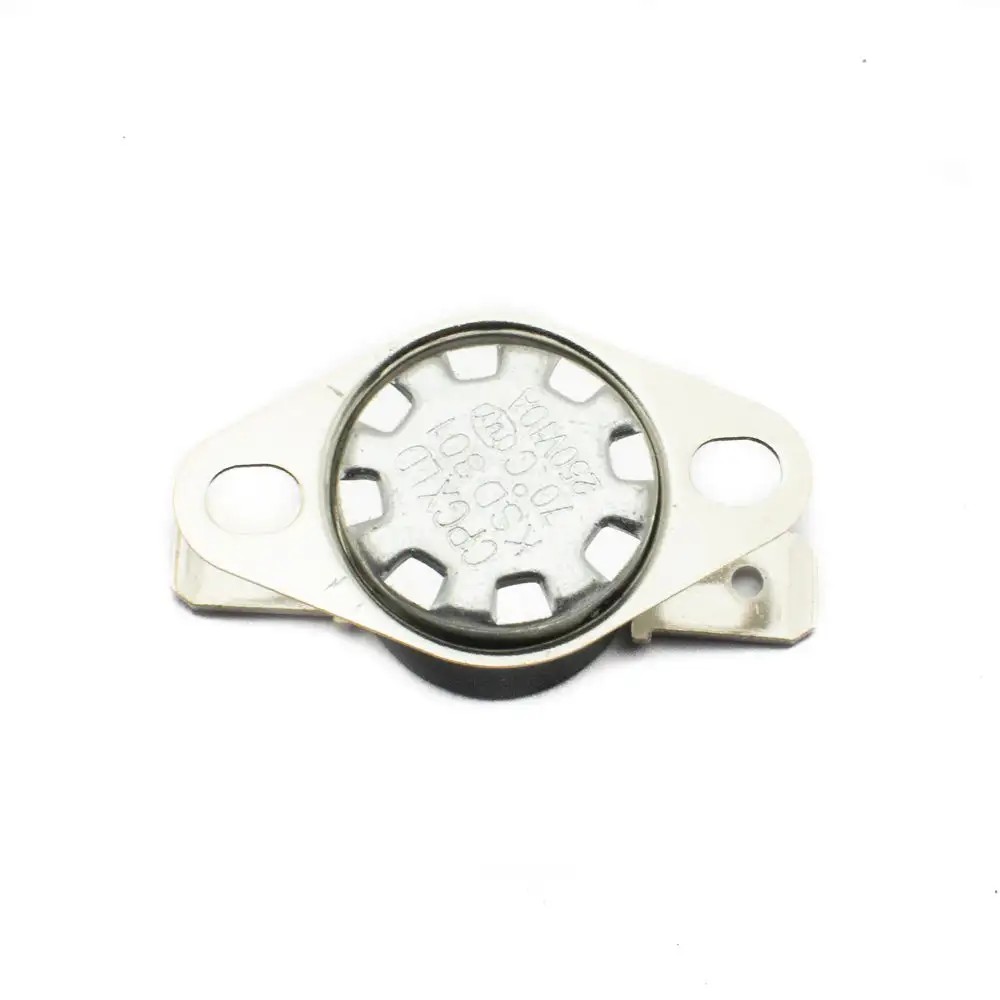

KSD301 Thermostat 70°C temperature thermal Switch - Normally Open

KSD301 70°C Thermal Control Switch 250V 10A NO (Normally Open) The original state of temperature control switch contact is open and closed when the temperature sensing exceeds the rated temperature.This KSD301 thermostat is used widely for coffee makers, water heaters, immersion heaters, electric cookers, microwave ovens, automatic toasters, etc. It is open until the temperature reaches 70 Celsius degree, then the switch closes. Widely used for temperature control or protection for household electric appliances.Widely used for temperature control or protection for household electric appliances.

Features

Rated Voltage

250V

Rated Current

10A

Model

KSD 301

Action type

Normally Open

Action Temperature

70°C

Material

Metal

Diameter

15.6mm

Length*Height

34.1*11.8mm
