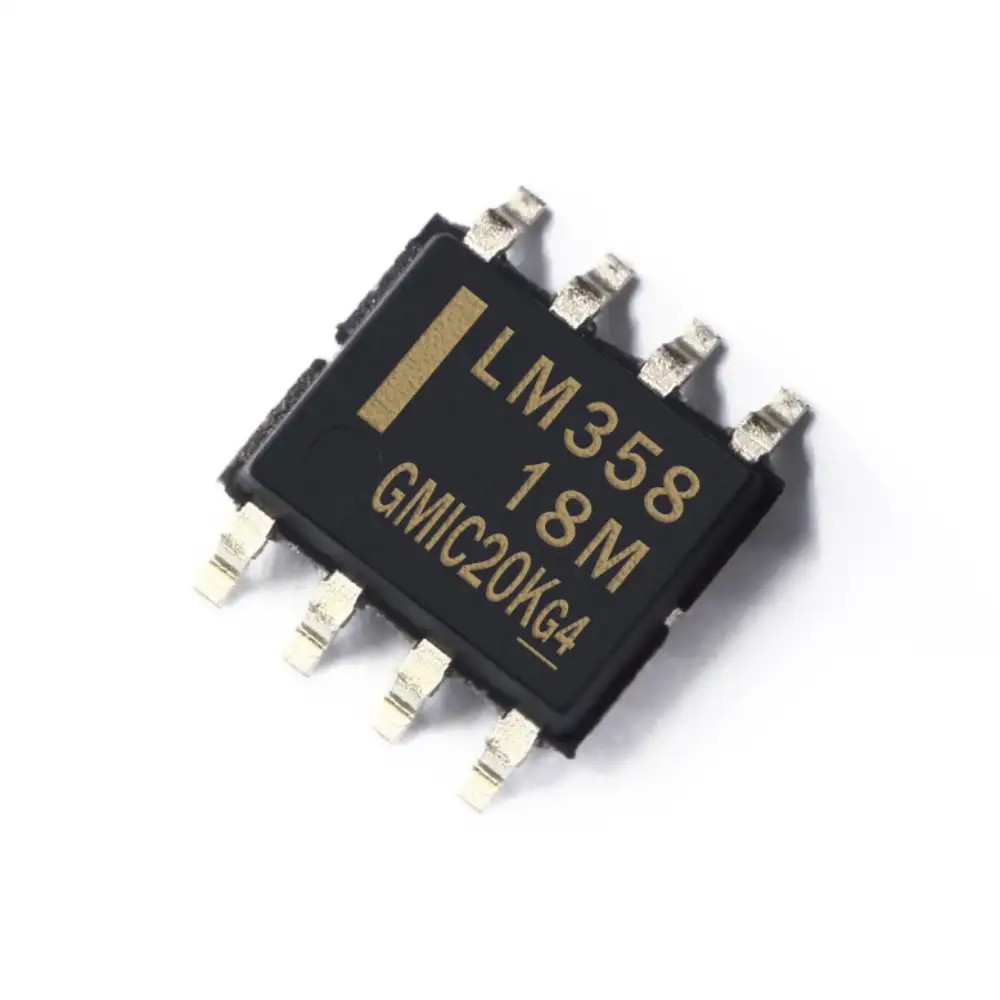

LM358 IC, Dual Op-Amp IC (SMD Package)

The LM358 is a dual op-amp IC that integrates two op-amps that are powered by a single power supply. It is one half of the LM324 Quad op-amp, which contains four op-amps with a shared power supply. The differential input voltage range can be the same as the power supply voltage range. The default input offset voltage is very low, measuring only 2mV. The typical supply current is 500uA and has a maximum current of 700uA regardless of the supply voltage range. The operating temperature ranges from 0 C to 70 C at ambient, with a maximum junction temperature of 150 C.

PINOUT

Pin Number

Pin Name

Description

1

OUTPUT1

Output of Op-Amp 1

2

INPUT1-

Inverting Input of Op-Amp 1

3

INPUT1+

Non-Inverting Input of Op-Amp 1

4

VEE, GND

Ground or Negative Supply Voltage

5

INPUT2+

Non-Inverting Input of Op-Amp 2

6

INPUT2-

Inverting Input of Op-Amp 2

7

OUTPUT2

Output of Op-Amp 2

8

VCC

Positive Supply Voltage

Features

Supply Voltage

32V

Differential Input Voltage

32V

Input Voltage

−0.3V to +32V

Operating Temperature Range

0˚C to +70˚C

Lead Temperature DIP

260˚C

Dimensions

6mm x 5mm x 1.5mm
