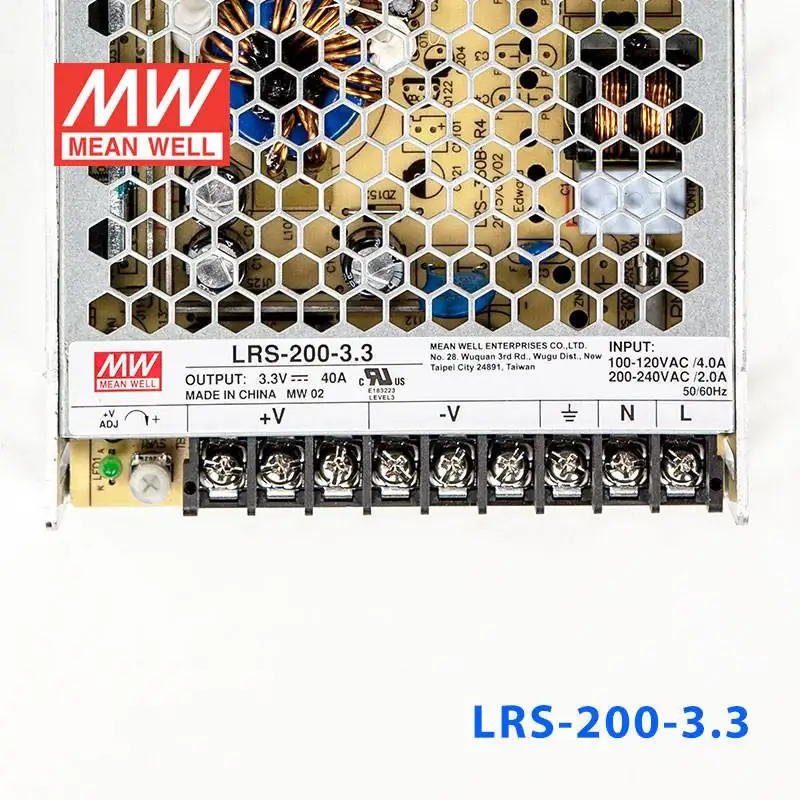

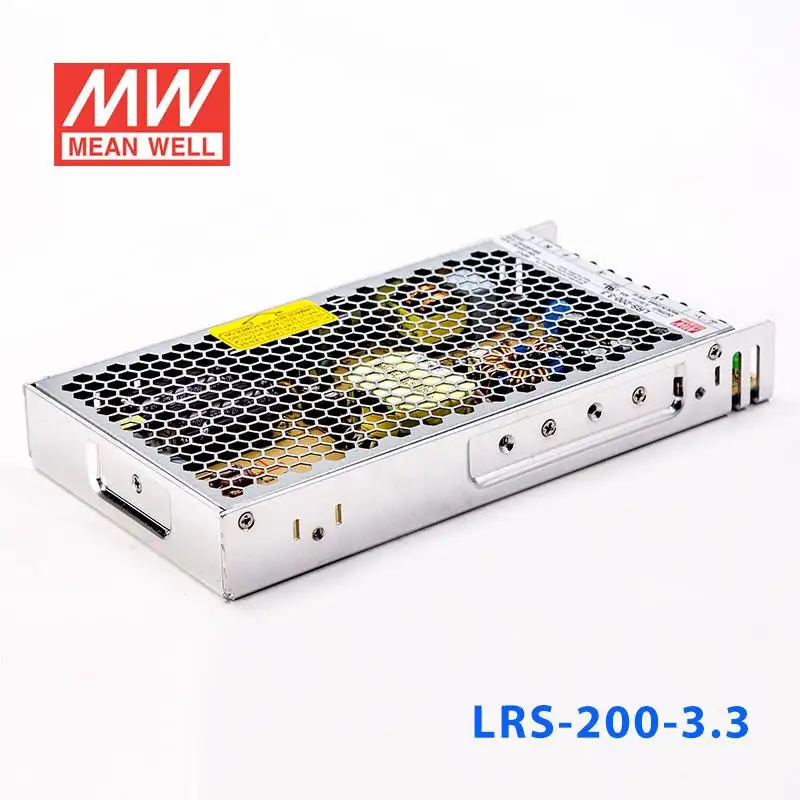

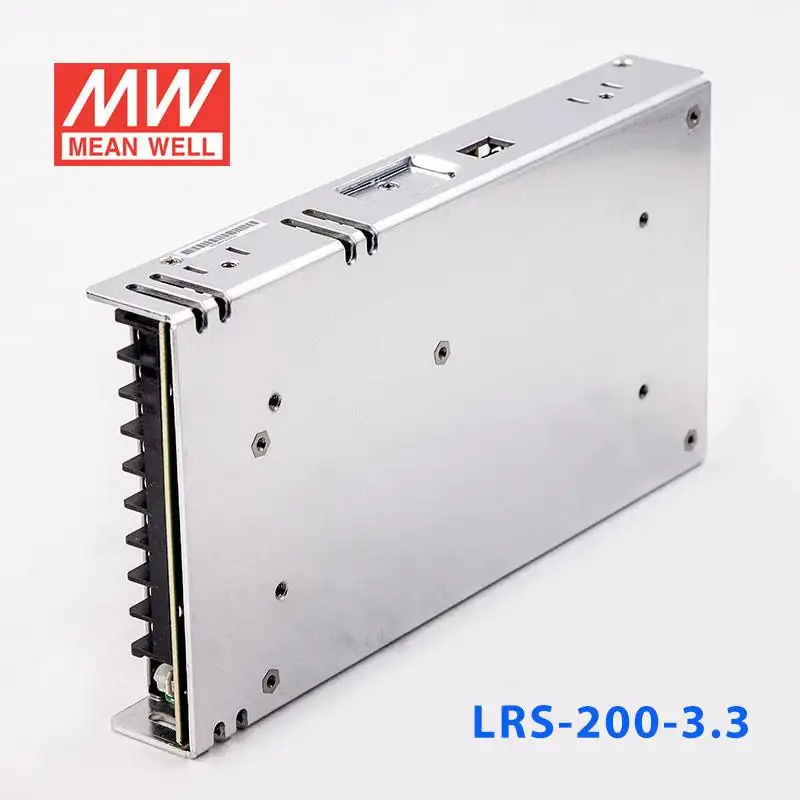

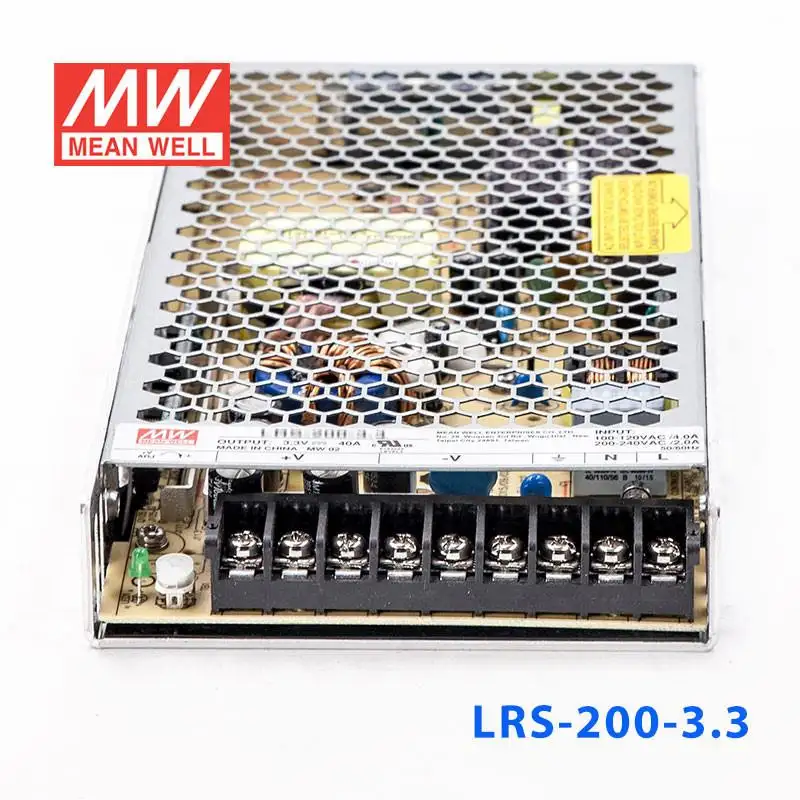

LRS-200-3.3 Mean Well SMPS - 3.3V 40A - 132W Metal Power Supply

Key Specifications:-

• Output Voltage 3.3V

• Type                         Enclosed Type

• Approx. Wattage 132W

• Features Standard

• Series LRS(Reliable)

• Mechanical Form Enclosed

• Warranty 3 Years Warranty

• IP Level Non-Waterproof

• Input Voltage 115V/230V by switch


Features:-

• No load power consumption <0.5W for 150W;  <0.75W for 200W/350W
• AC input selectable by switch
• Withstand 300VAC surge input for 5 seconds
• Ultra compact and 1U low profile
• Withstand 5G vibration test
• High operating temperature up to 70oC
• Protections:  Short circuit / Overload / Over voltage / Over temp.
• Cooling by free air convection (150W/200W);  forced air cooling by built-in DC fan (350W)
• Compliance to IEC/EN60335-1(PD3) and  IEC/EN61558-1,-2-16 for household appliances (150W)
• Operating altitude up to 5000 meters
• LED indicator for power on
• High efficiency, long life and high reliability
• Low cost
• 3 years warranty

Specifications:-

Related Documents:-

LRS-200 Datasheet

LRS-200-3.3 Test Report

UL Certificate (LRS-200)

CB Certificate (LRS-200)
