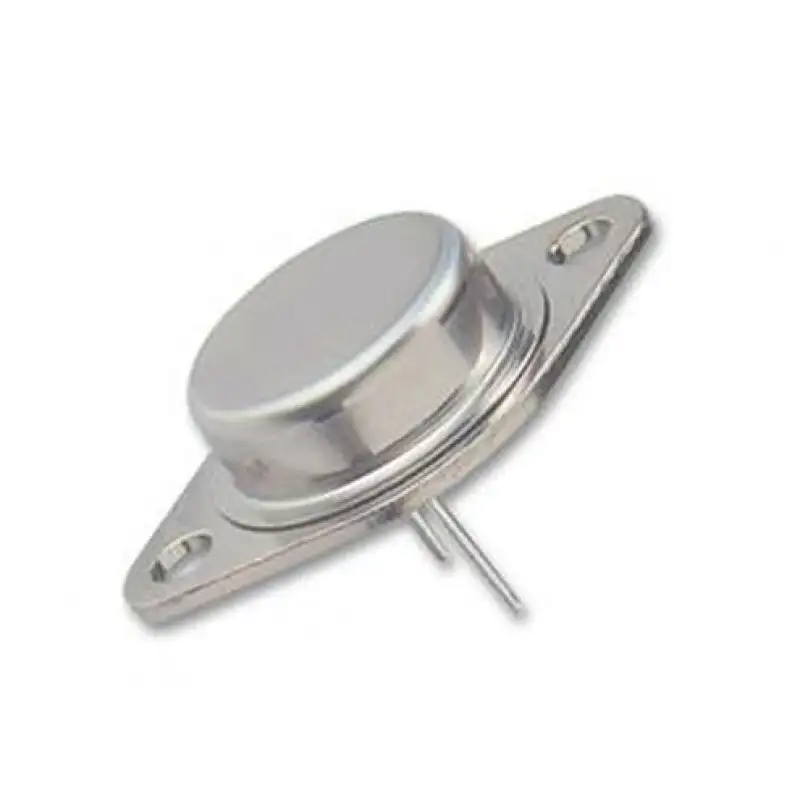

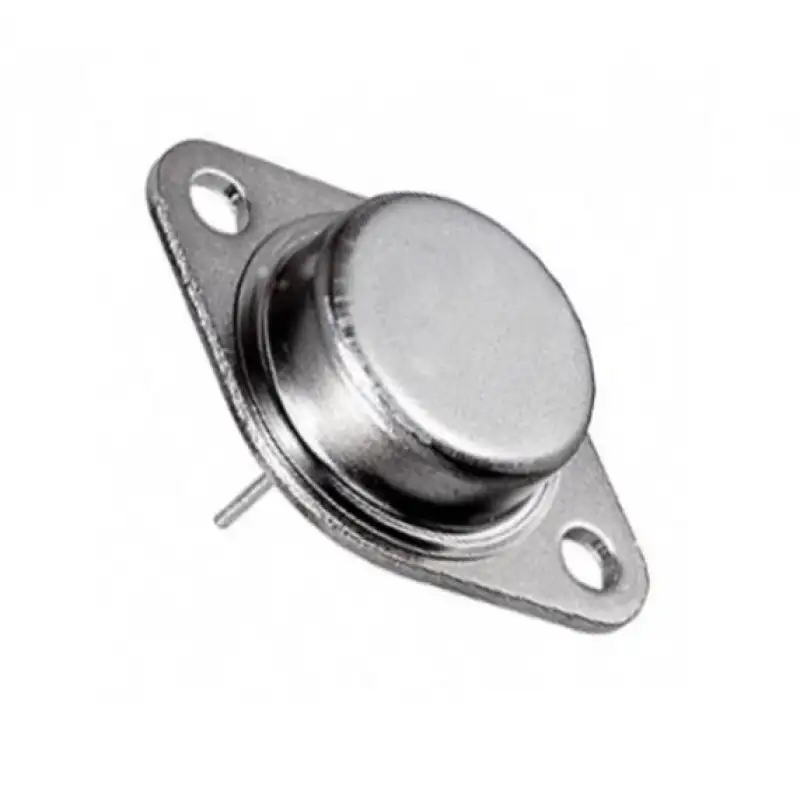

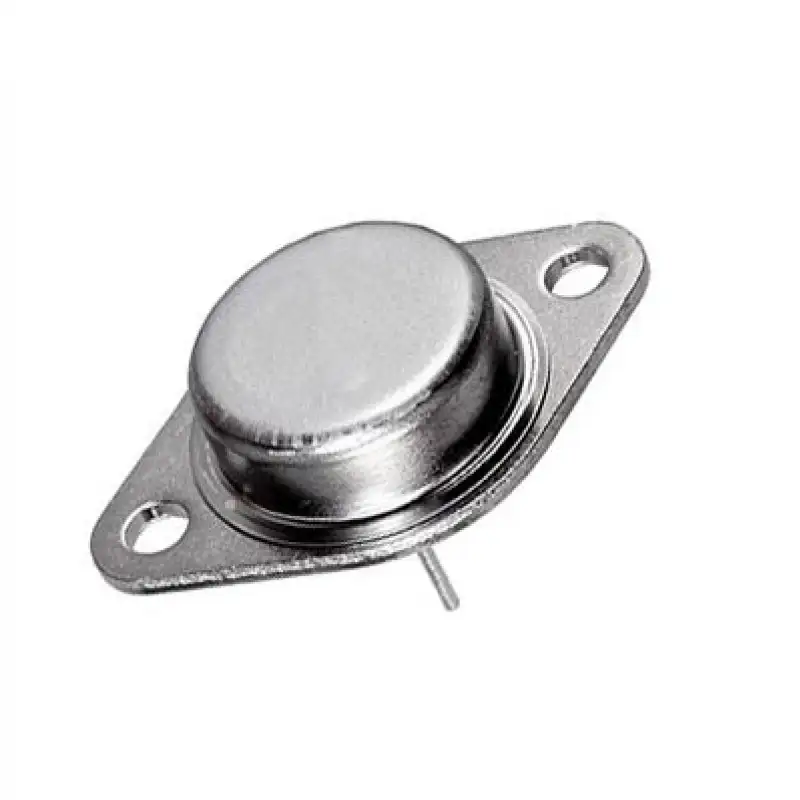

- MJ15004 PNP Bipolar Power Transistor 140V 20A TO-3 Metal Package
Click Image to Preview
MJ15004 PNP Bipolar Power Transistor 140V 20A TO-3 Metal Package
Brand: Generic | SKU: 6584484
₹ 288.00
₹ 511.00
Enter your pincode to check delivery options
Offer & Other Details
- Payment Offer: 2% Instant Discount on UPI and bank Transfer Payments.
- Partial COD: Pay 25% Advance now and Balance on Delivery (COD).
- Sales Assistance: Contact us +91 8903831010 for personalized advice.
Description
MJ15004 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• High safe operating area
• For low distortion complementary designs
• High DC current gain
• Simple drive requirements
• Easy to carry and handle
Detailed Specifications:-
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 140VDC |
| Collector−Base Voltage (VCBO) | 140VDC |
| Emitter−Base Voltage (VEBO) | 5VDC |
| Continuous Collector Current (Ic) | 20ADC |
| Continuous Base Current (Ib) | 5ADC |
| Continuous Emitter Current (Ie) | 25ADC |
| Power Dissipation (Pd) | 250W |
| Operating Temperature Range | -65 - 200°C |
| DC Current Gain (hFE) | 150 |
