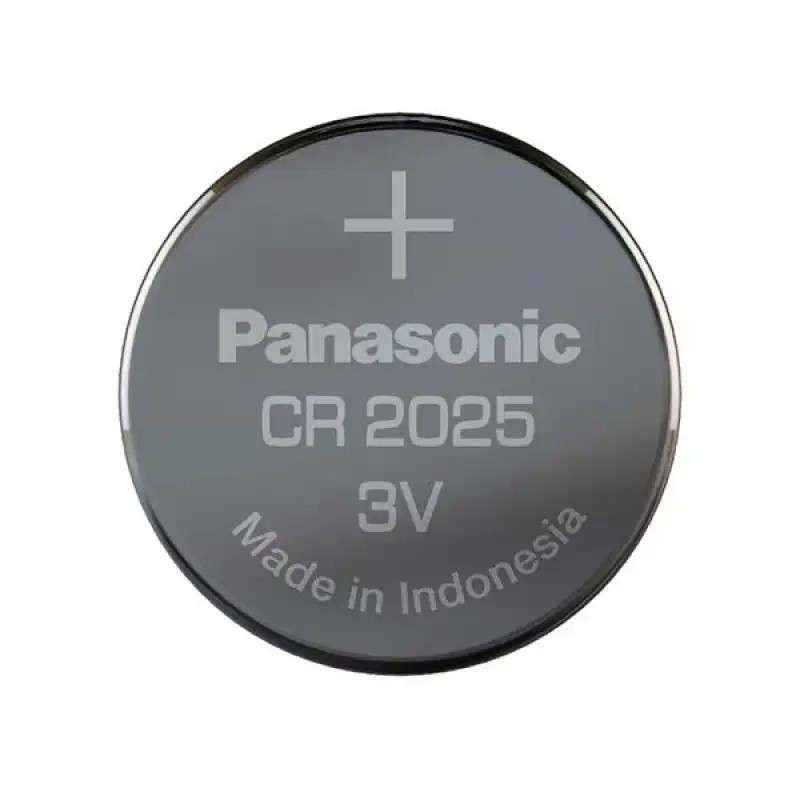

Panasonic CR2025 3V 165mAh Lithium Coin Cell Battery

The Panasonic CR2025 Lithium Coin Cell is a potent and efficient battery designed for use in heart rate monitors, remote starters, alarm systems and much more! The compact cells feature a powerful Lithium Manganese Dioxide chemistry, which not only provides it with the high voltage needed for high performance devices, but with a sizable 165 mAh capacity to keep it running through extensive use. The battery has an extremely low self-discharge rate that gives it a considerable 10 year shelf life, allowing them to be stored around the house or office for future use.

Specifications of Panasonic CR2025 Lithium Coin Cell Battery :-

• Brand:                                     Panasonic
• Type:                                       Coin Cell
• Model:                                     CR2025
• Chemical System:                     Li / MnO2
• Nominal Voltage:                      3V
• Rated Capacity:                        165 mAh
• Average Weight:                       2.3 g
• Temperature Range:                 -30 - +60 °C
• Diameter:                                20 mm
• Height:                                    2.5 mm

Features of Panasonic CR2025 Lithium Coin Cell Battery :-

• Very low self-discharge; long shelf life of up to 10 years
• High voltage (3V)
• Can be used in a wide range of temperatures (-30°C to +60°C)
• No mercury added
• Very high weight-to-power ratio
• High leak protection
• A full line up for use in a wide variety of applications

Very low self-discharge

A long shelf life means a battery still has lots of percentage of the original capacity, even after 10 years in storage. This goes for the Panasonic lithium coin CR2025 batteries. The reason for this is that they are chemically very stable, due to the combination of lithium and manganese dioxide. Long-term discharge has been tested at all operating temperatures under low-load discharge conditions.

Applications

For devices where traditional batteries cannot be used, LITHIUM COIN CR2025 has a proven track record. These batteries are useful for memory back-up, digital watches, calculators, car keys, fitness appliances, laser pens and medical devices like a tensiometer and a clinical thermometer.

High reliability and safety

Repeated tests have been conducted on the various performance and safety characteristics of the LITHIUM COIN CR2025. The effects of environmental factors such as temperature were also tested. A wealth of corroborative data was accumulated on the performance of the batteries and this cannot be pinpointed by short-term accelerated tests. The result of this is winning the approval under the UL safety standards in the United States and wide recognition around the world for the high reliability and safety.

Ultra-compact power

The Panasonic lithium coin CR2025 battery has a high voltage of 3V and an ultra-compact design. This means that a single lithium battery can replace two, three or more traditional batteries. Also the very small devices can thereby be provided with a powerful source of energy.

Related Documents:-

Panasonic CR2025 Datasheet
