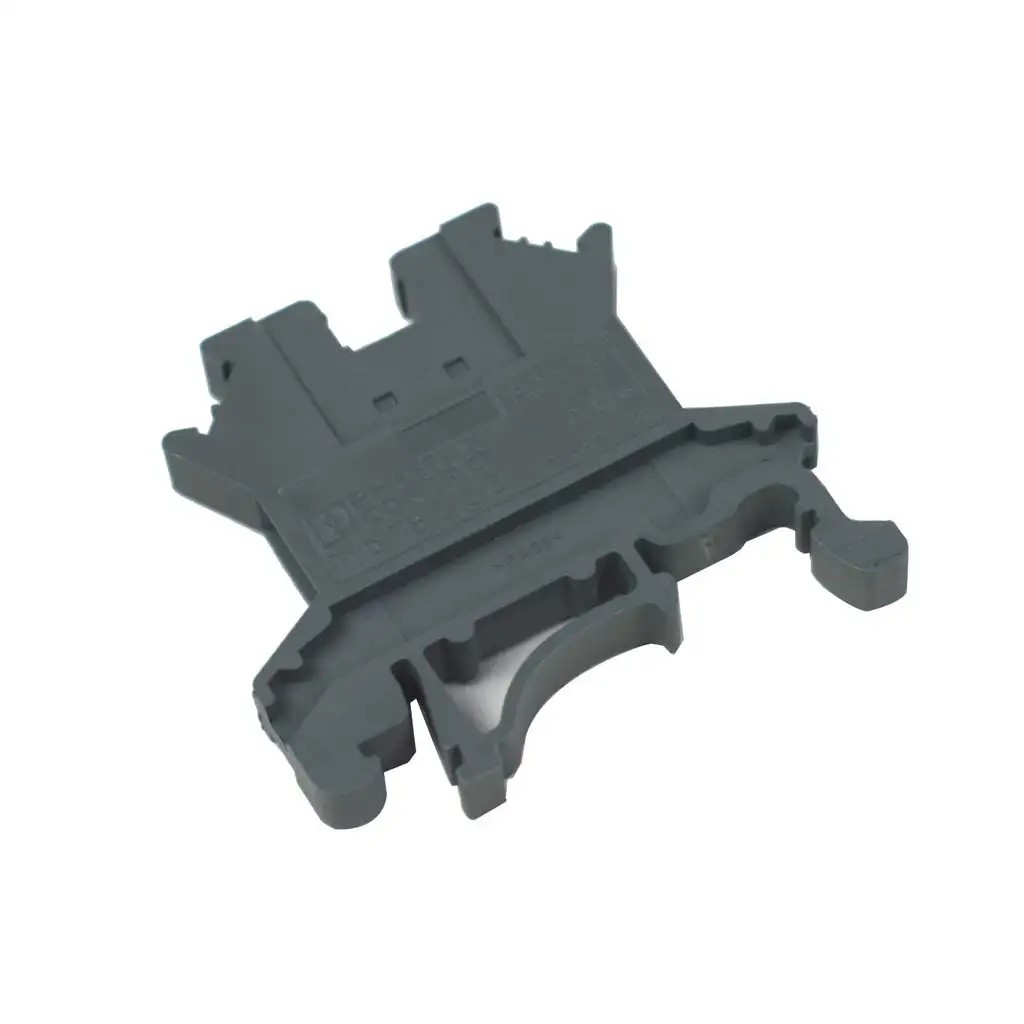

Phoenix TB 2,5 EI PA66 Contact Terminal Block Connector (20-12 AWG)

These Phoenix Contact 20-12 AWG Terminal Blocks have marker-holding recesses to accept marking tags for circuit identification. A cross connection can be achieved with the aid of shorting links/sleeves & screws. The distinguishing characteristics are the insulating material, the connection system, and the layout of the terminal blocks. One or more conductors can be joined together or connected using a feed-through terminal block. In order to receive marking tags for circuit identification, these Terminal Blocks contain marker-holding holes. In order to create a cross connection, shorting links, sleeves, and screws are used.

For more Reference link

Brand

Phoenix Contact

Max Voltage

300V

Type

Feed Through

Colour

Grey/Black

Max Current

20A

Wire Gauge or Range

20-12 AWG

No of Connection

2

Dimension (H*W*D)

40mm*43*5mm
