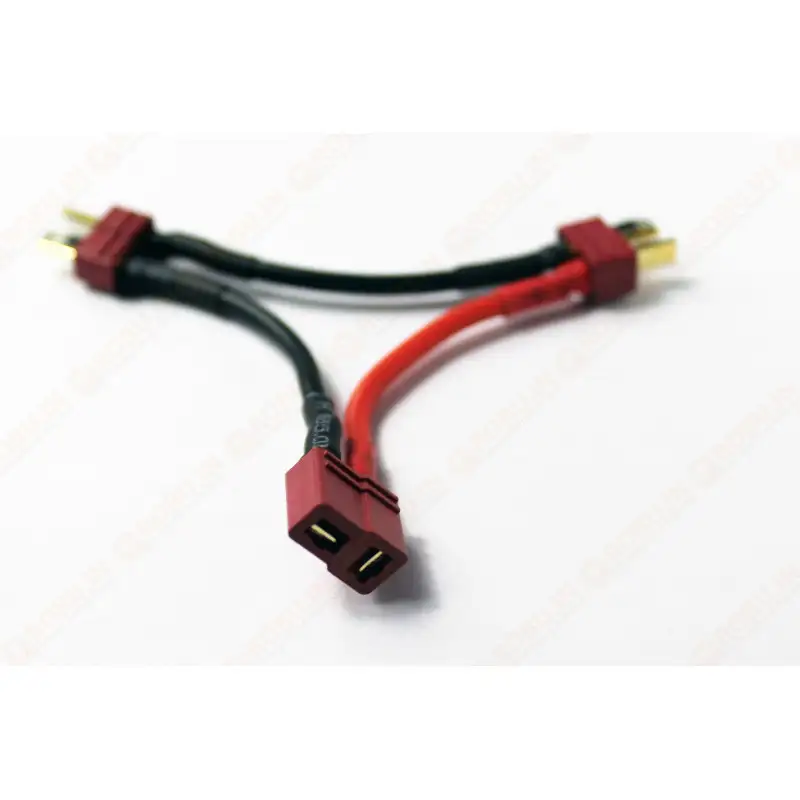

SafeConnect T-Connector Series Pack lead

The SafeConnect T-Connector Series Pack lead is equipped with two gold-plated male T-connectors with which connections of two Li-POs in series is possible. It has one female T-connector connector to connect to your application.

This T-Connector Series Pack lead connects two battery packs in Series. You can make 2 x 2200mAh 11.1v 3S1P packs into a single 2200mAh 22.2v 6S1P pack. Its an excellent and cheap way of buying larger Li-PO. It also means that if you have a crash and damage a cell the loss is far less than losing an entire 6S1P pack. Its the smarter way to run larger packs.

It allows you to connect two batteries to one ESC in series. This will increase the voltage available to the ESC and motor but will not increase the capacity. For example, you can connect two 3000 mAh 3 cell batteries to an ESC with this adapter and the ESC will see a single 6 cell 3000 mAh battery.

Note: Only for packs with the same discharge rate and capacity.

Features :

1. Designed for heavy-duty.
2. High Power Application.

Package Includes :

1 x SafeConnect T-Connector Series Pack lead.

Specifications :-

Connector Type	2 Male + 1 Female T-Connector
Connector Material	Gold Plated connector, Nylon case
Length of Cable (cm)	10
Length (mm)	92
Width (mm)	14
Height (mm)	8
Weight (gm)	14
Cable Size (AWG)	14
