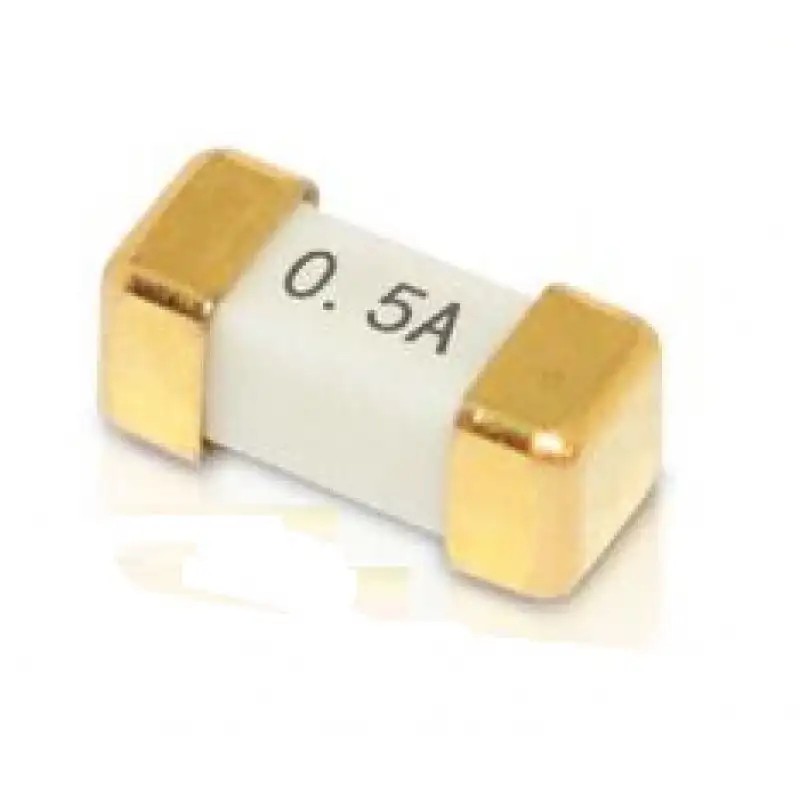

SFE0500 250V 500mA Weite (1808 SMD) Fast Acting Fuse

6125 series Fast-Acting square Surface Mount fuses are ceramic tube/end cap constructions, RoHS compliant, Halogen Free and lead(Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S.(UL/CSA) safety agency approvals. Provide board level primary and secondary circuit protection in a wide variety of applications. With excellent inrush current with standing capability, excellent reliability for thermal and mechanic shock, also have a high reliability and stable solder ability.

Features:-

• Fast-Acting ( Fast-Acting )
• Small size(6.1mm*2.5mm)
• Wide operating temperature range
• Low temperature de-rating
• RoHS compliant
• Tape and Reel for automatic placement
• Conflict free metals

Applications:-

• LED lighting
• Notebook PC
• Battery devices
• LCD/PDP devices
• LCD backlight inverter
• Portable Devices
• Power supply
• Networking devices
• PC server
• Cooling fan system
• Storage system
• Telecom system

Specification:-

• Brand : WEITE
• Fast Acting Fuse
• Hold Current: 500mA
• Maximum Voltage: 250V
• Mounting Type: SMD 1808
• Fuse Type : SMD

Package Includes:-

1 x SFE0500 250V 500mA Weite (1808 SMD) Fast Acting Fuse
