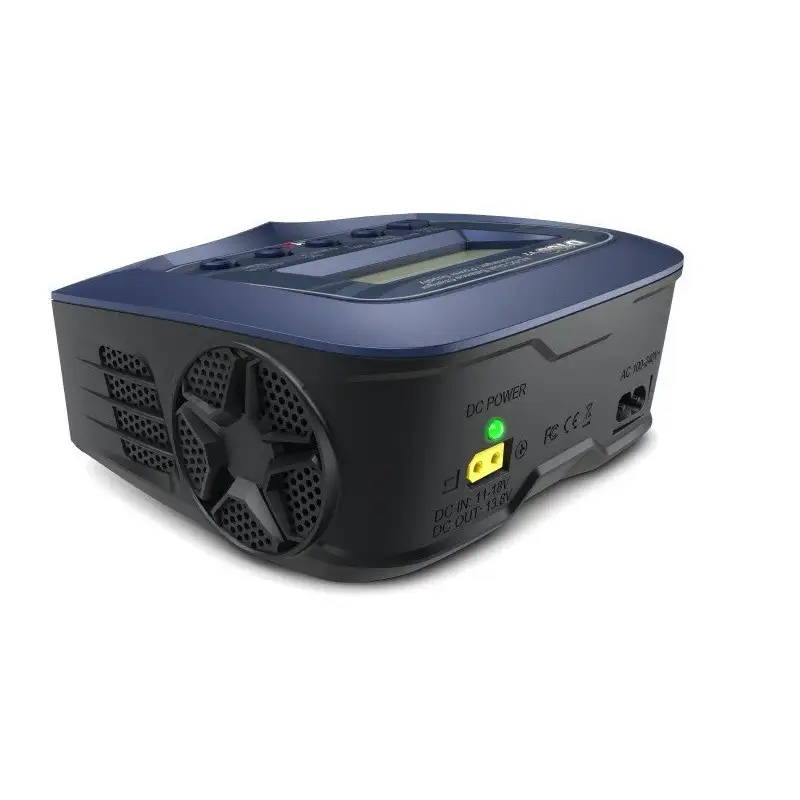

SKYRC D100 V2 2x100W 10A AC-DC Dual Balance Charger-Discharger-Power Supply

The SKYRC D100 V2 2x100W 10A AC/DC Dual Balance Charger / Discharger / Power Supply is a twin-channel charger with two independent circuits; which can charge batteries of varying chemistries (LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB) simultaneously. It is capable of operating as a power supply, with the maximum output of 100W to help hobbyists power their DC equipment. The voice guide function allows for easier use, making this charger ideal for new users.

With its unprecedented function of voice guide, even a green and can use this charger without any hurdles.

Features:

1. Voice Guide: makes the charger more user-friendly and customizable.
2. Power Distribution supports power distribution between two channels and PSU under the total power of 100W in AC mode.
3. DC Power Supply: can supply 100W/13.8V DC power, allowing hobbyists to power equipment on the field.
4. Twin-Channel Charging: allows you to plug 2 batteries into the charger simultaneously; it will intelligently and automatically charge 2 batteries at once.
5. LiHV Mode Available: the additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.34V.

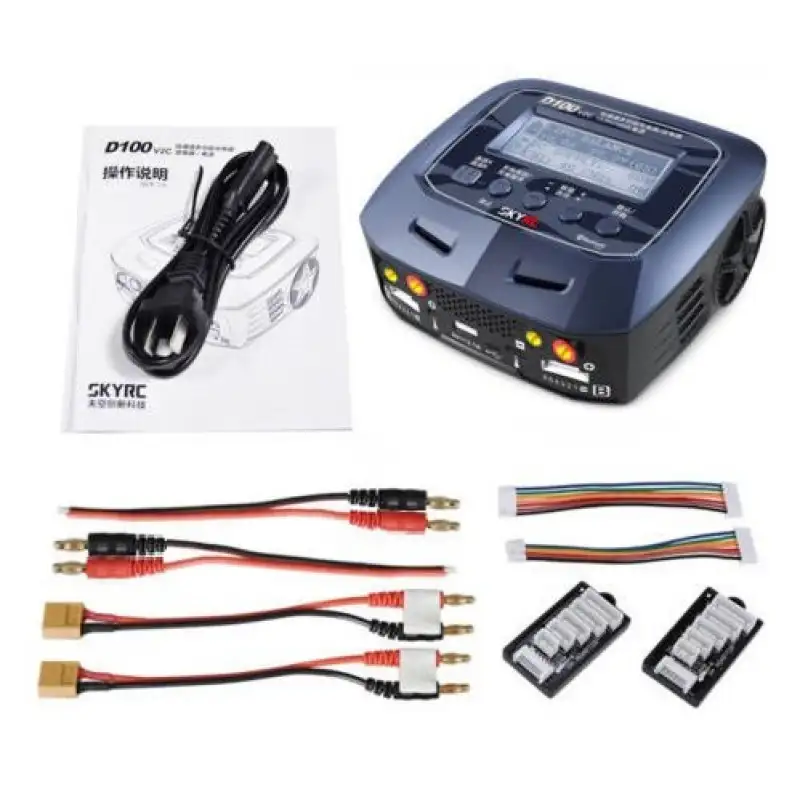

Package Includes:

1 x SKYRC D100 V2 2x100W 10A AC/DC Dual Balance Charger.
2 x XH Adapter -2pcs.
2 x Charging cable -2pcs.
2 x Banana Connectors with XT60 connector charging cable -2pcs.
1 x AC Adapter Cord -1.1 meter(EU Plug).

Specifications :-

Input Voltage (V AC)	100 ~ 240
DC Input Voltage Range (V)	11 ~ 18
Output Power(Watt)	AC 100W(Support Power Distribution) DC 100Wx2
Charge Current Range (A)	0.1 ~ 10
Maximum Discharge Power (W)	5
Dischage Current Range (A)	0.1 ~ 2.0
Drain Current for Balancing Li-Po's (mA/Cell)	300
Li-ion/Po cell count	1 ~ 6
NiCd/NiMH cell count	1 ~ 15 Cells
Pb battery voltage	2 ~ 20
Dimensions (mm) LxWxH	153 x 154 x 67
Weight (gm)	668
