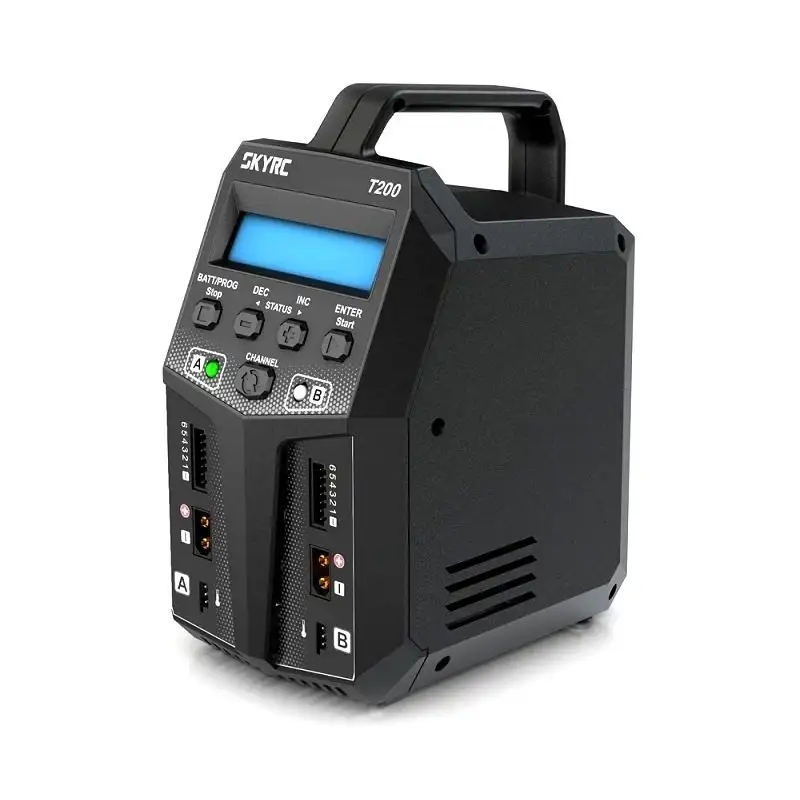

SkyRC T200 Balance Charger

The SkyRC T200 is a 200W AC/DC charger that comes ready to charge in the most compact design yet while taking up minimal space in the pit area. Only taking up about as much bench space as a pair of battery packs, the charger delivers dedicated 100W integrated power per each of the two complete charging circuits. Inside the case, there is enough transformer power to fill two batteries simultaneously at up to 12 amps each, that you can pump life into everything from a receiver pack to a 6S LiPo or 15S NiMH or NiCD. All the programmability you expect of a modern higher-level charger is built in!

With each charging channel programmed and operating independently, SkyRC T200 allows you to charge two batteries simultaneously, and it will intelligently and automatically charge the packs at once to their maximum capacity. To the top of it, the cells being charged do not even necessarily have the same configuration or be of the same chemical type.

The juice box comes with the charging algorithm for the most common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead-acid). With the standard factor of the XT60 interface, plugging prevents reverse polarity and ensures super-solid connection.

The charger allows users to change the end voltage(for the expert user only). With the universal-voltage input circuit, you don't need hassle finding a voltage converter between 110V and 220V while travelling around!

Features:

1. 2 independent charging channels.
2. 2 x 100W charging power and maximum 12.0A charging current.
3. 10 Battery memories.
4. High-contrast LCD display.
5. Easy operation.
6. XT-60 connector on charging output.
7. XH balancer connector.
8. Various security monitoring.

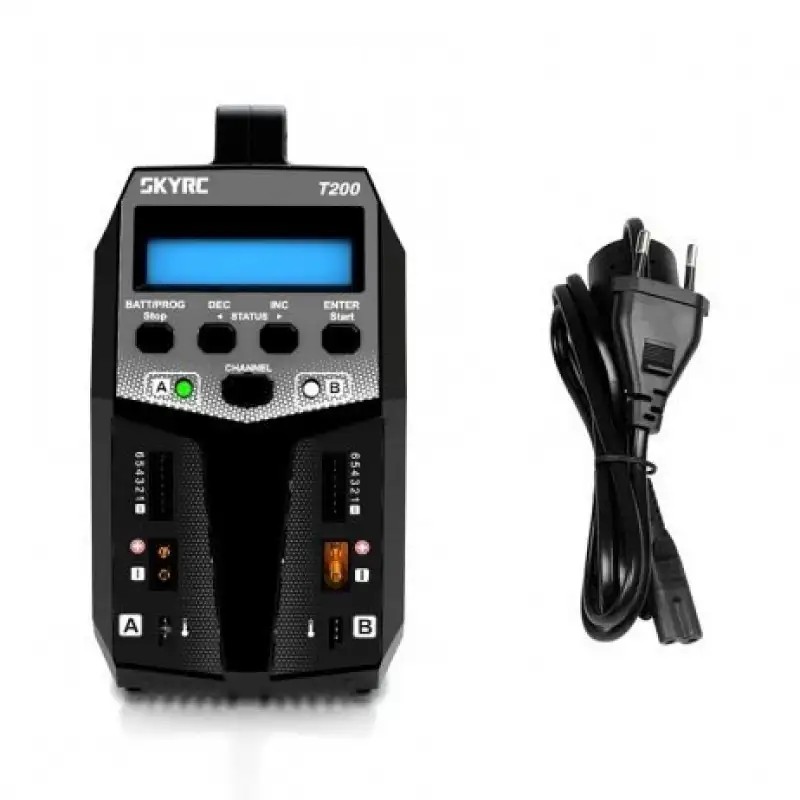

Package Includes:

1 X SKYRC T200 balance charger.

1 x Plug Cable

1 x User Manual

Specifications:

Input Voltage (V AC)	100 ~ 240
DC Input Voltage Range (V)	11 ~ 18
Charge Current Range (A)	0.1 ~ 12.0
Charge Wattage	100W X 2
Maximum Discharge Power (W)	10
Discharge Current Range (A)	0.1 ~ 2.0
Battery Capacity Range	NiMH/NiCd:100-50000mAh LiPo/LiIon/LiFe/LiHV:100-50000mAh Pb: 100-50000mAh
Charge and Discharge	Charge Voltage NiMH/NiCd: Delta peak detection LiPo: 4.18-4.25V/cell LiFe: 3.58-3.7V/cell Pb: 1.8-2.0V/cellLiIon: 4.08-4.2V/cell LiHV: 4.25-4.35V/cell Discharge Cut-off Voltage NiMH/NiCd:0.1-1.1V/cell LiPo:3.0-3.3V/cell LiFe:2.6-2.9V/cellLiIon: 2.9-3.2V/cell LiHV: 3.1-3.4V/cell
Drain Current for Balancing Li-Po's (mA/Cell)	500
Li-ion/Po cell count	1 ~ 6
NiCd/NiMH cell count	1 ~ 15 Cells
Pb battery voltage	2 ~ 20
Dimensions (mm) LxWxH	178 x 135 x 96
Weight (gm)	850
