Name: SunFounder Elite Explorer Kit with Official Arduino UNO R4 WiFi
Brand: Generic
SKU: 230505
Price: 4599 INR
Availability: InStock

Learn electronics, programming and connected-device development with the SunFounder Elite Explorer Kit. Featuring an official Arduino UNO R4 WiFi board and 300+ components, this kit supports hands-on exploration from basic circuits to IoT projects.

Overview

Build your understanding through practical experiments with sensors, displays and motors. SunFounder's online tutorials, example code and video lessons guide learners through circuit assembly and programming, making the kit useful for students, educators and electronics enthusiasts.

Key Features

Official Arduino board: Includes the Arduino UNO R4 WiFi.
Extensive component selection: 300+ components for varied electronics experiments.
Guided learning: Explore 50+ projects spanning basic electronics, interactive builds and IoT.
Wireless connectivity: Develop Wi-Fi and Bluetooth Low Energy applications using the board's ESP32-S3 connectivity module.
Built-in visual output: Experiment with the UNO R4 WiFi's 12 × 8 LED matrix.

Applications

Learning Arduino programming and breadboard circuit construction.
Temperature, humidity and soil-moisture monitoring.
RFID access-control demonstrations and interactive games.
Motor, servo and display experiments.

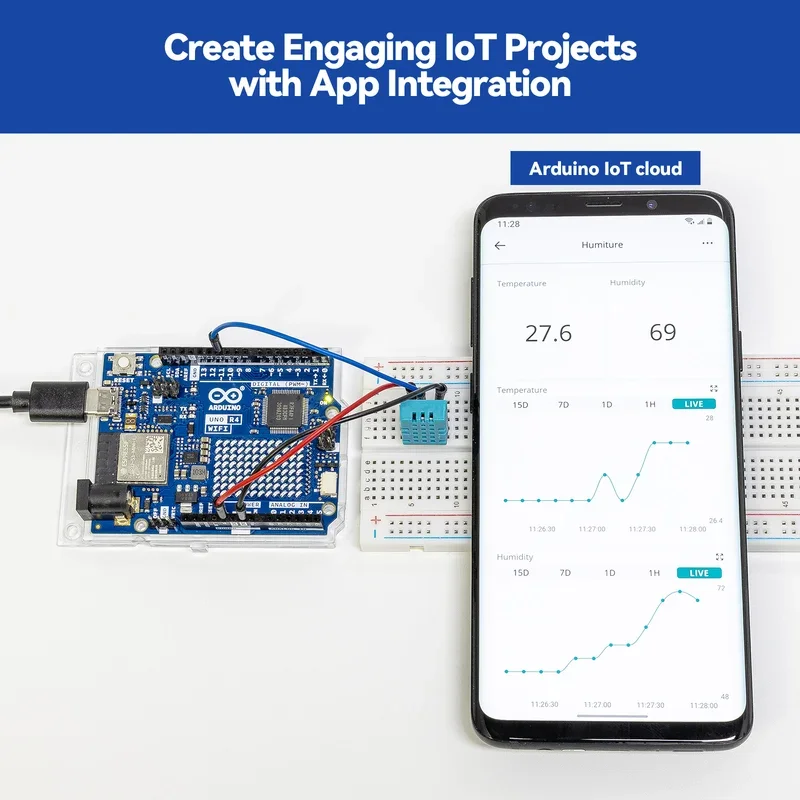

Wi-Fi web servers, cloud dashboards and MQTT projects.

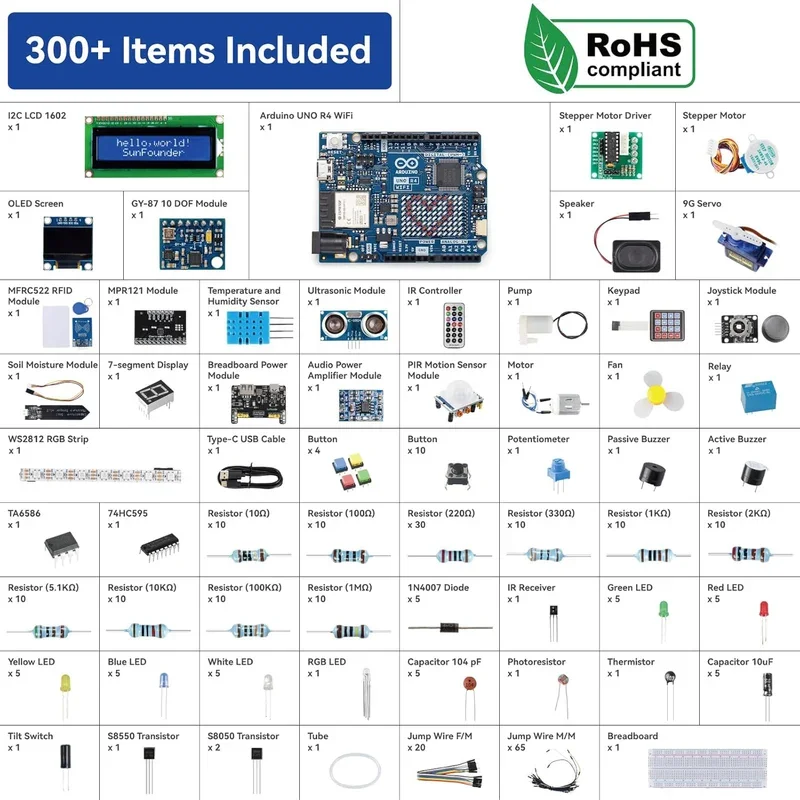

Package Includes — Bill of Materials (BOM)

No.	Component	Quantity
1	I2C LCD1602 display	1
2	Arduino UNO R4 WiFi board	1
3	Stepper motor driver	1
4	Stepper motor	1
5	OLED screen	1
6	GY-87 IMU module	1
7	Speaker	1
8	9 g servo	1
9	MFRC522 RFID module	1
10	MPR121 module	1
11	Temperature and humidity sensor	1
12	Ultrasonic module	1
13	IR remote controller	1
14	Water pump	1
15	Keypad	1
16	Joystick module	1
17	Soil-moisture module	1
18	7-segment display	1
19	Breadboard power module	1
20	Audio power amplifier module	1
21	PIR motion sensor module	1
22	DC motor	1
23	Fan blade	1
24	Relay	1
25	WS2812 RGB LED strip	1
26	USB Type-C cable	1
27	Button — coloured	4
28	Button — black	10
29	Potentiometer	1
30	Passive buzzer	1
31	Active buzzer	1
32	TA6586 motor driver IC	1
33	74HC595 shift register IC	1
34	10 Ω resistor	10
35	100 Ω resistor	10
36	220 Ω resistor	30
37	330 Ω resistor	10
38	1 kΩ resistor	10
39	2 kΩ resistor	10
40	5.1 kΩ resistor	10
41	10 kΩ resistor	10
42	100 kΩ resistor	10
43	1 MΩ resistor	10
44	1N4007 diode	5
45	IR receiver	1
46	Green LED	5
47	Red LED	5
48	Yellow LED	5
49	Blue LED	5
50	White LED	5
51	RGB LED	1
52	Ceramic capacitor, marking 104	5
53	Photoresistor	1
54	Thermistor	1
55	10 µF capacitor	5
56	Tilt switch	1
57	S8550 transistor	1
58	S8050 transistor	2
59	Tube	1
60	Female-to-male jumper wire	20
61	Male-to-male jumper wire	65
62	Breadboard	1

Important Notes

Follow the wiring and power instructions for each experiment. Board input-voltage ratings do not apply to every included component.
UNO R3 sketches and libraries may require changes for the UNO R4's processor architecture.
Use the tutorial corresponding to the supplied sensor or module version.

Technical Specifications — Included Arduino Board

Parameter	Specification
Board	Arduino UNO R4 WiFi
Main microcontroller	Renesas RA4M1, 32-bit Arm Cortex-M4
Clock frequency	48 MHz
Main MCU memory	256 kB flash, 32 kB SRAM, 8 kB EEPROM
Wireless module	ESP32-S3
Wireless connectivity	2.4 GHz Wi-Fi and Bluetooth Low Energy
Onboard display	12 × 8 LED matrix
Main MCU operating voltage	5 V
USB input	5 V via USB-C
VIN / barrel-jack input	6–24 V
