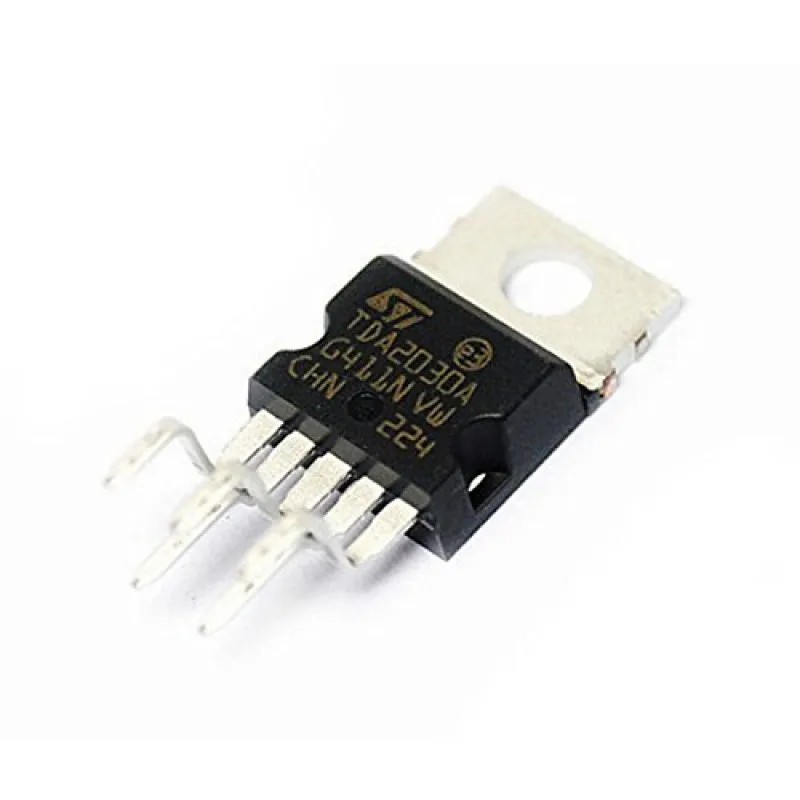

TDA2030 18W Hi-Fi Audio Power Amplifier IC TO-220-5 Package

The TDA2030 is a monolithic IC in a Pentawatt package intended for use as a low-frequency class-AB amplifier. With VS max = 44 V it is particularly suited for more reliable applications without regulated supply and for 35 W driver circuits using low-cost complementary pairs. The TDA2030 provides high output current and has very low harmonic and crossover distortion. The device incorporates a short-circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the operating point of the output transistors within their safe operating range. A conventional thermal shutdown system is also included.

Features:-

■ Output power 18 W at VS = ±16 V / 4 Ω with 0.5% distortion

â–  High output current

â–  Very low harmonic and crossover distortion

â–  Short-circuit protection

â–  Thermal shutdown

Specifications:-

Symbol	Parameter	Value	Unit
VS	Supply Voltage	± 22	V
VI	Input Voltage	Vs
VI	Differential Input Voltage	± 15	V
IO	Peak Output Current (Internally Limited)	3.5	A
PTOT	Total power dissipation at T case = 90 °C	20	W
TSTG, TJ	Storage and junction temperature	– 40 to + 150	°C

Related Document:-

TDA2030 IC Datasheet
