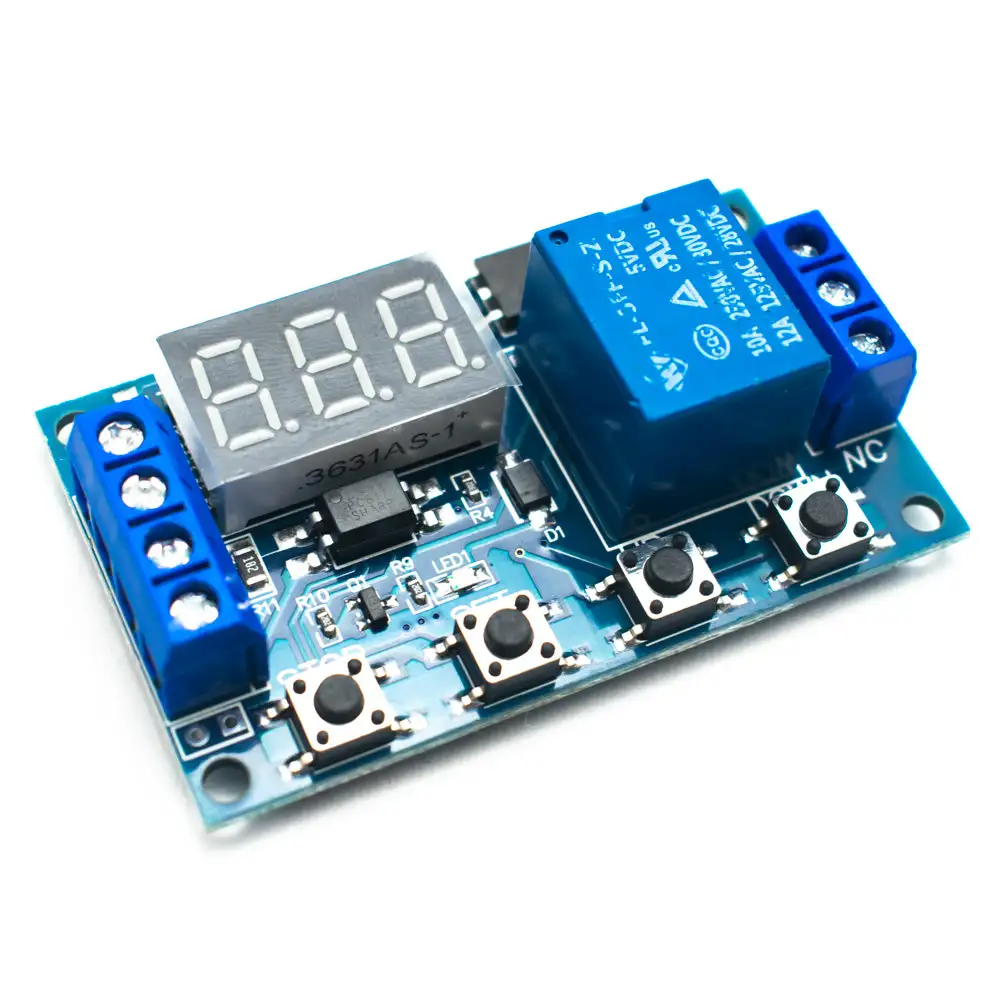

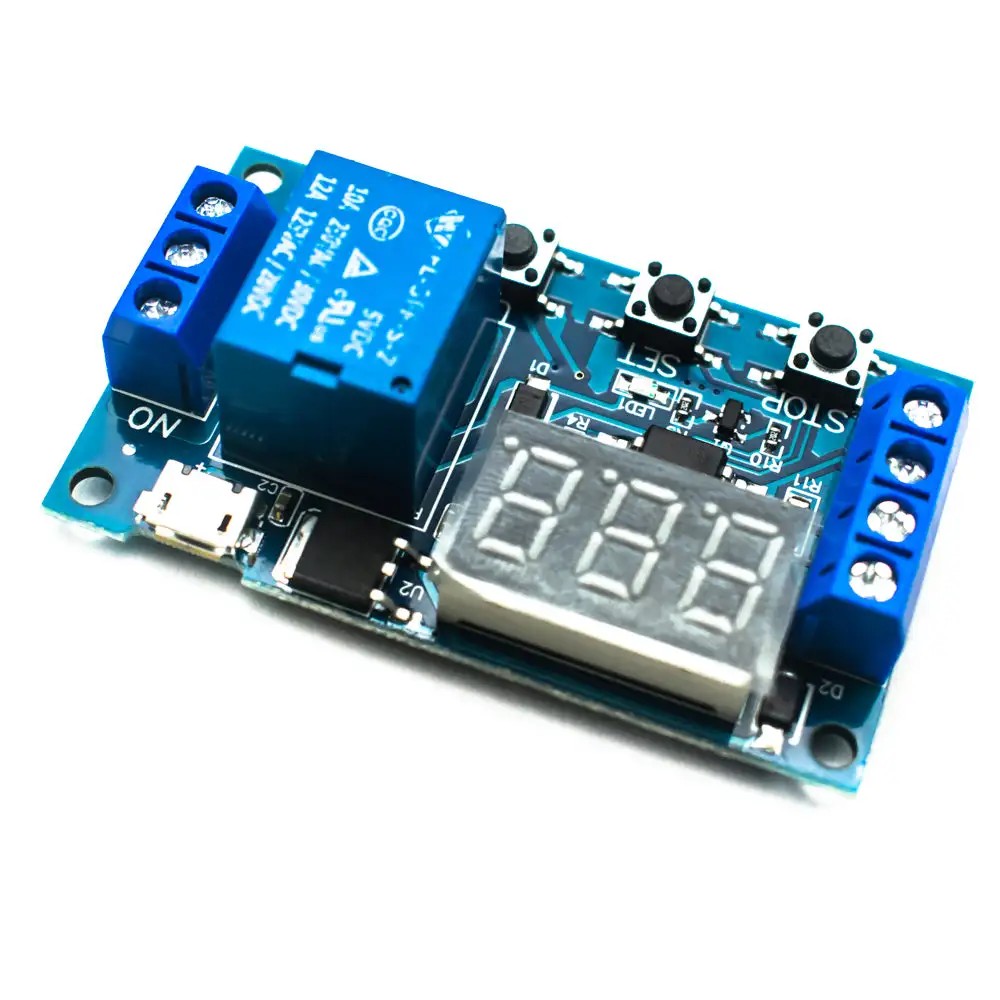

Timer Relay DC 6V-30V Single Channel Power Relay Module with Adjustable Timing Cycle

It's a 6-30V 1-Channel Delay Power Relay Module with Adjustable Timing Cycle Switches onboard and a Digital LED display. It's typically used in Delay Timer Control Switch Module, Timer Controller for Home Automation. The module runs on a 6-30V operating voltage range and also accepts a micro USB 5.0V power supply. Output capability depends on the relay which is rated to control the load up to DC 30V 10A or AC 250V 10A.

Operation Mode

DC 6V ~ 30V

0.05A

5V DC

250V@10A AC/ 30V@10A DC

-40°C to 85°C

62.8x38x19mm
