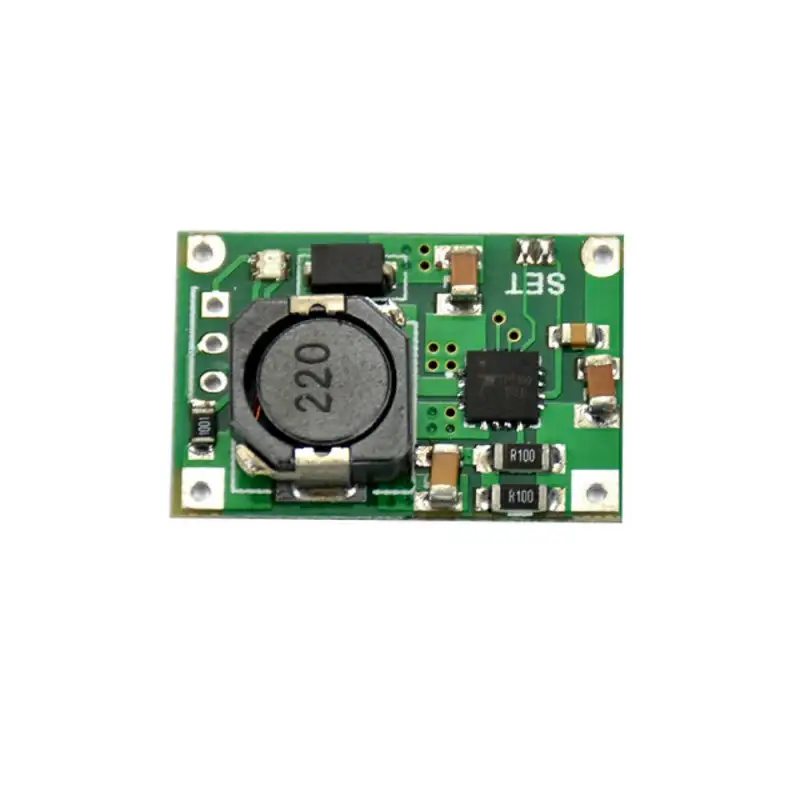

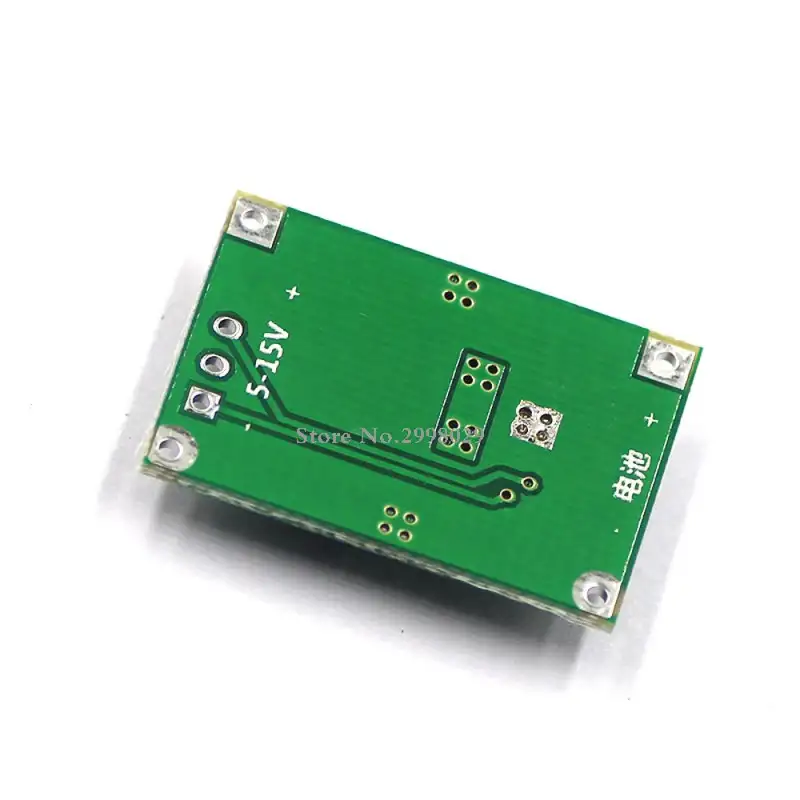

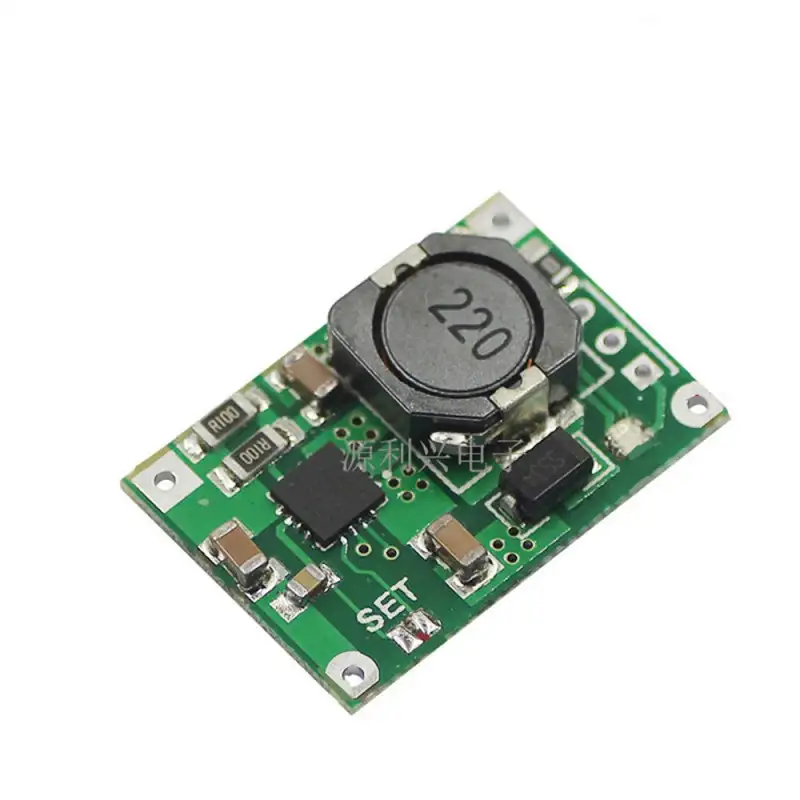

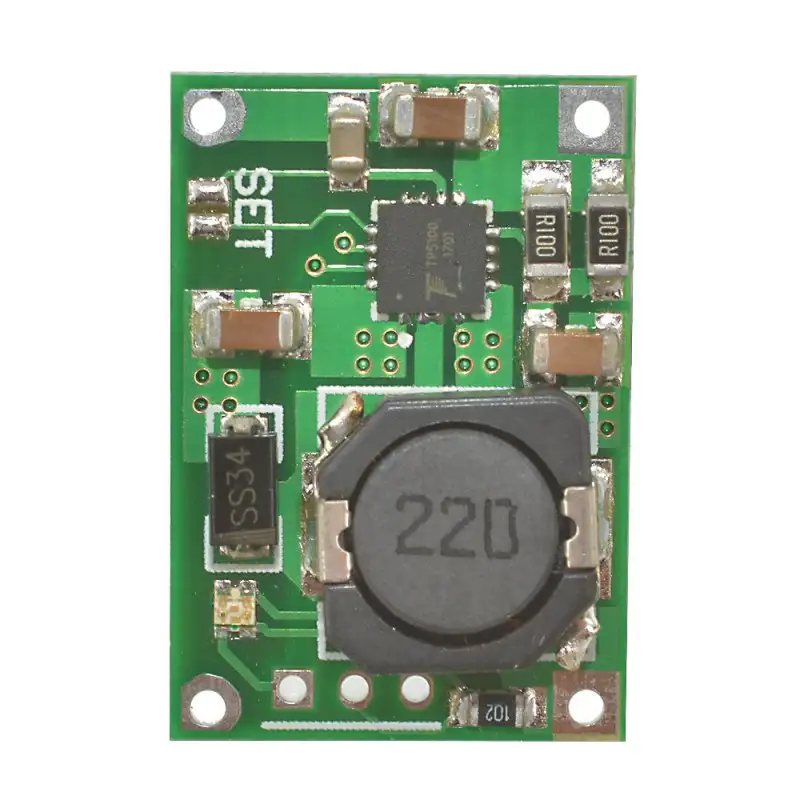

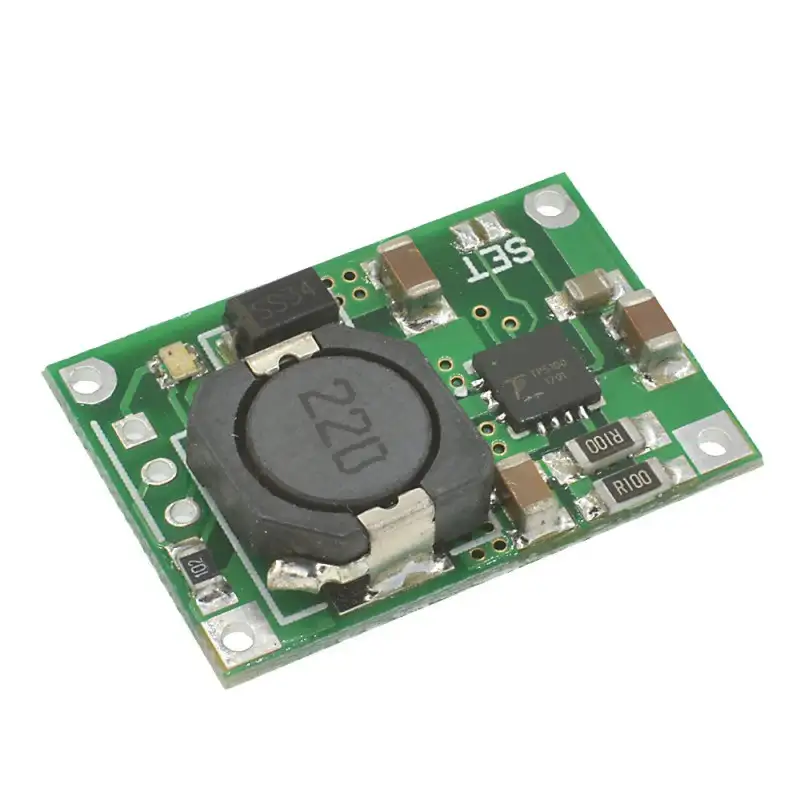

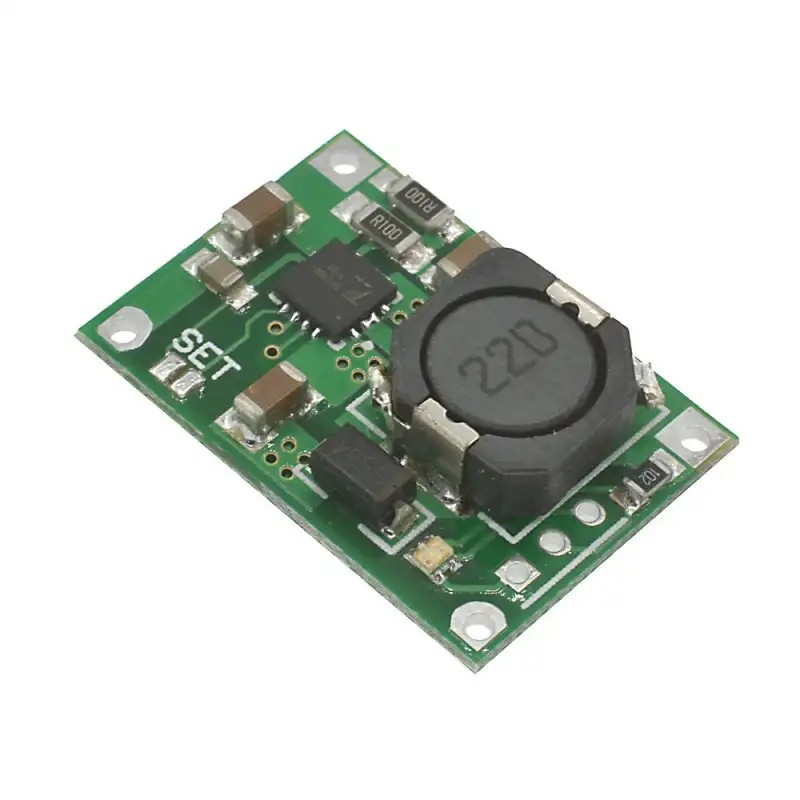

TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under-voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 has 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintains a smaller amount of heat.
TP5100 built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and another external Schottky diode.
Features
:
-
Input voltage: 5-15V DC power supply.
-
Charge status: full and unloaded blue lights, charging red.
-
Double 8.4v / 4.2v lithium rechargeable single .
-
Programmable charge current. 0. 1A-2A .
-
Programmable steady pre-charge current 10% -100%.
-
Wide operating voltage, maximum reach I8V.
-
Red and green LED charge status indicator.
-
Chip temperature protection, overcurrent protection, under voltage protection.
-
Battery temperature protection, reverse battery shutdown, short circuit protection.
-
Switching frequency 400Khz, usable inductance 20uH and more.
-
PWR_ON Power battery for switching control.
Package Includes:
1 x TP5100 4.2v 8.4v Single Double Lithium Battery Charging Board.
Specifications:
|
Model
|
TP5100
|
|
Input Supply voltage (V)
|
5 ~ 15
|
|
Programmable charge current
|
0.1 ~ 2 A
|
|

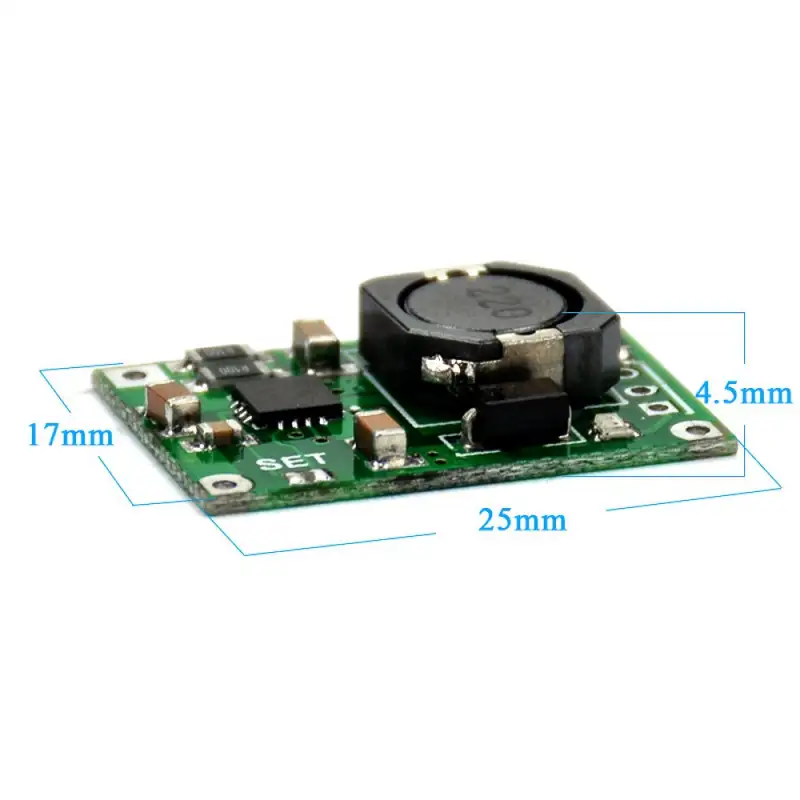

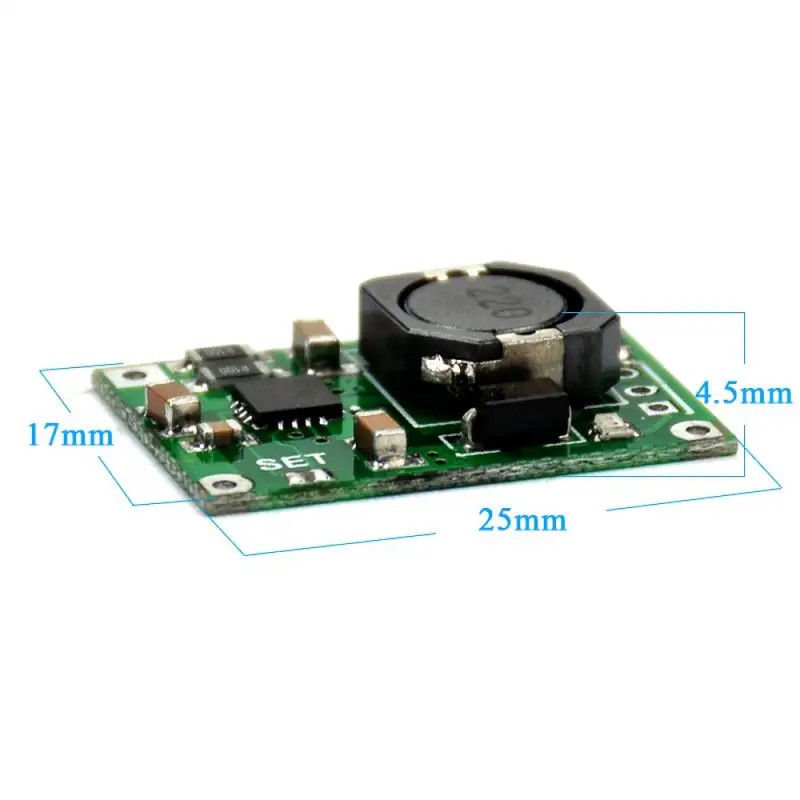

Length (mm)
|
26
|
|
Width (mm)
|
18
|
|
Height (mm)
|
5
|
|
Weight (gm)
|
3
|
|
Shipment Weight
|
0.005 kg
|
|
Shipment Dimensions
|
10 6 5 cm
|
