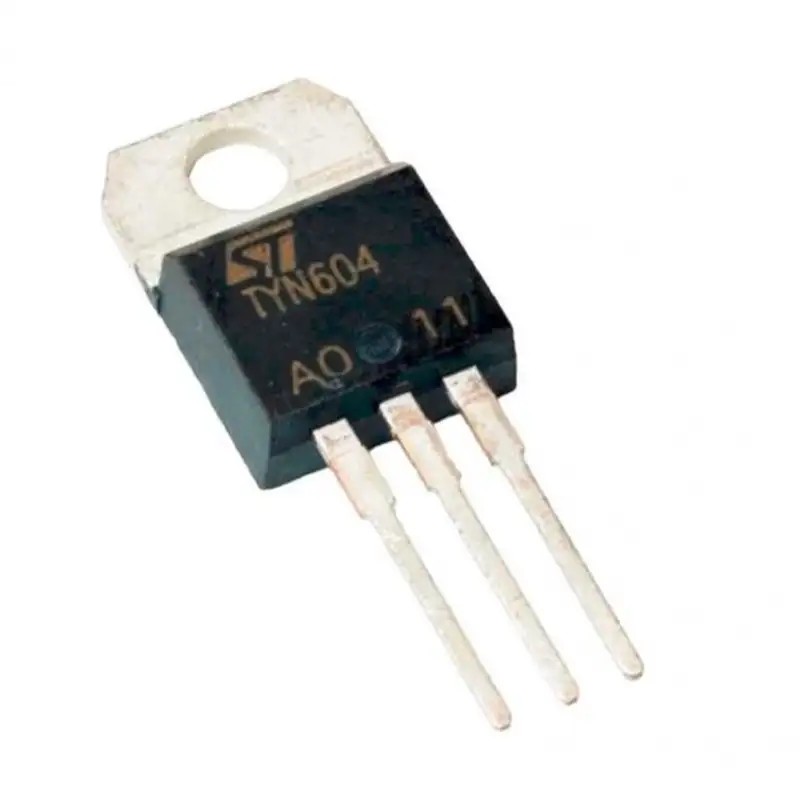

TYN604 - 600V - 4A SCR - Thyristor

The TYN604 is controlled rectifiers uses a high performance glass passivated technology. This general purpose Family of silicon controlled rectifiers is designed for power supplies up to 400Hz on resisitive or inductive load.

Features:-

• High Surge capability
• High On-state current
• High Stability and reliability

Specifications:-

Symbol	Parameter	Ratings	Units
IT(AV)	Average on-state current	2.5	A
IT(RMS)	Effective on-state current	4	A
ITSM	Non-Repetitive Peak On-state Current	63	A
Tj	Operating junction temperature range	-40 to 125	°C
Tstg	Storage Temperature	-40 to 150	°C
I2t	I2t Value for fusing	18	A2S
VRRM	Tj = 125 °C	600	V
VDRM	Repetitive peak off-state voltage	600	V
Tl	Maximum lead temperature for soldering during 10 s at 4.5 mm from case	260	°C

Related Document:-

TYN604 SCR Data Sheet
