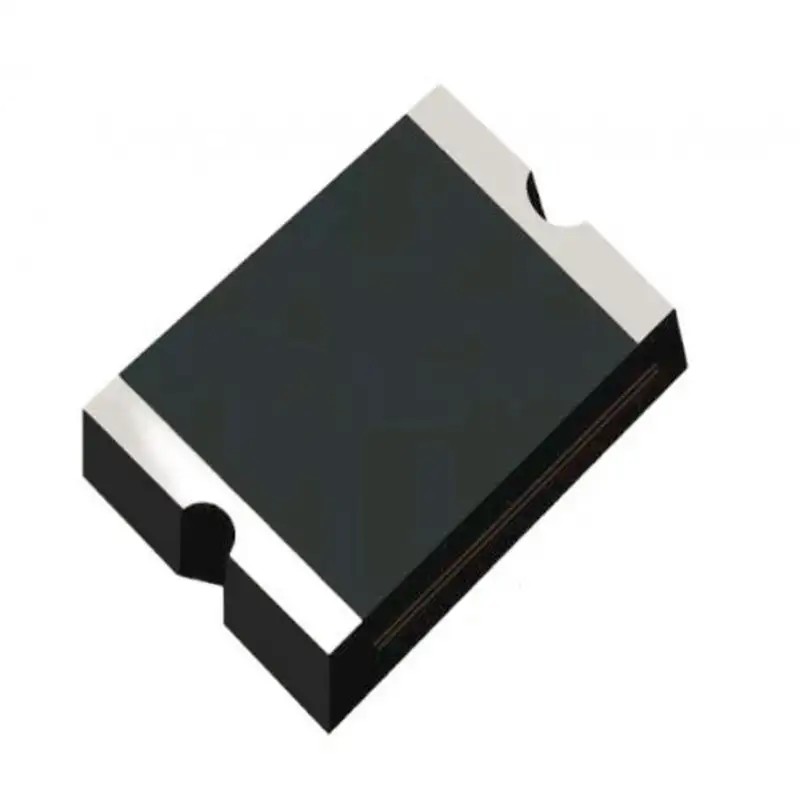

WT0805-075 6V 750mA Weite (0805 SMD) PPTC Resettable Fuse

PPTC ((Polymer Positive Temperature Coefficient) Fuse 6V 750mA is PPTC devices with resettable overcurrent protection. Using this reduces the warranty, service and repair costs. This PPTC Fuses are ideal for situations where frequent overcurrent conditions occur or constant uptime is required, resettable PTCs (PPTCs) are typically used in consumer electronics, power line, telecom, I/O port, process control and medical equipment protection applications.

PPTC Fuse increase resistance as temperature increases due to increased flow. They are Designed to limit unsafe currents while allowing constant safe current levels, resistance will “resetâ€_x009d_ automatically when the fault is removed and temperature returns to a safe levels.

Features:-

• Compact design saves board space
• RoHS compliant and lead-free
• Halogen-free
• Fast response to fault current
• Symmetrical design

Applications:-

• USB port protection - USB 2.0, 3.0&OTG
• HDMI 1.4 Source protection
• PDAs / digital cameras
• Game console port protection
• PC motherboards-plug and play protection

Specification:-

• Brand : WEITE
• Resettable PPTC Fuse
• Hold Current: 750mA
• Maximum Voltage: 6V
• Mounting Type: SMD 0805
• Fuse Type : SMD

Package Includes:-

1 x WT0805-075 6V 750mA Weite (0805 SMD) PPTC Resettable Fuse
